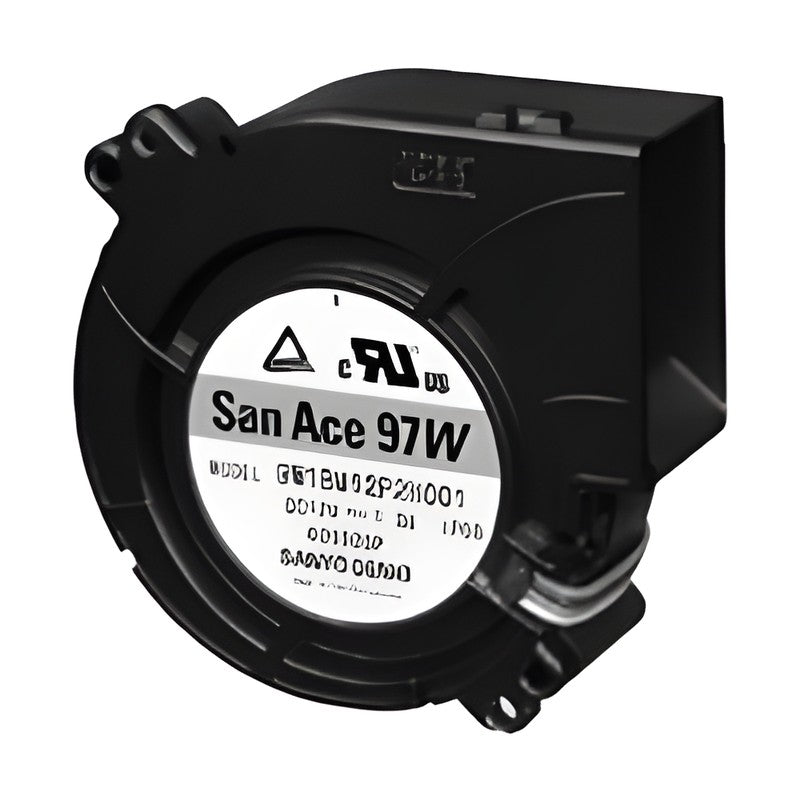

Sanyo Denki San Ace 97W 9W1BM Splash Proof Blower (97x33 mm)

Sanyo Denki San Ace 97W 9W1BM Splash Proof Blower (97x33 mm)

The San Ace 97W 9W1BM type is an IP68-rated splash proof DC blower, 97x33 mm, for cooling equipment exposed to water and dust.

Key features

  • IP68 ingress protection against water and dust (motor and electronics)
  • Rated voltage 12 / 24 VDC; rated speed 4100 to 4800 min-1
  • Max. airflow up to 1.09 m3/min; max. static pressure up to 540 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output

Specifications

Series 9W1BM type
Product Splash Proof DC Blower
Size 97x33 mm
Frame Aluminum (black coating)
Ingress protection IP68
Operating temperature -20 to +70 C
Expected life (L10) 40000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 422-424
9W1BM12P2H001 Voltage: 12 VDC | Speed: 4800 min-1 | Airflow: 1.09 m3/min | Static pressure: 540 Pa | Feature: Pulse sensor, PWM
9W1BM12P2M001 Voltage: 12 VDC | Speed: 4100 min-1 | Airflow: 0.93 m3/min | Static pressure: 380 Pa | Feature: Pulse sensor, PWM
9W1BM24P2H001 Voltage: 24 VDC | Speed: 4800 min-1 | Airflow: 1.09 m3/min | Static pressure: 540 Pa | Feature: Pulse sensor, PWM
9W1BM24P2M001 Voltage: 24 VDC | Speed: 4100 min-1 | Airflow: 0.93 m3/min | Static pressure: 380 Pa | Feature: Pulse sensor, PWM
9W1BM24H2D001 Voltage: 24 VDC | Speed: 4800 min-1 | Airflow: 1.09 m3/min | Static pressure: 540 Pa | Feature: Lock sensor (option)
DC BlowersSanyo Denki
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 97W 9W1BM Splash Proof Blower (97x33 mm)

Brand Sanyo Denki·DC Blowers

Available part numbers (5)

9W1BM12P2H001, 9W1BM12P2M001, 9W1BM24P2H001, 9W1BM24P2M001, 9W1BM24H2D001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9W1BM12P2H001Voltage: 12 VDC | Speed: 4800 min-1 | Airflow: 1.09 m3/min | Static pressure: 540 Pa | Feature: Pulse sensor, PWM
9W1BM12P2M001Voltage: 12 VDC | Speed: 4100 min-1 | Airflow: 0.93 m3/min | Static pressure: 380 Pa | Feature: Pulse sensor, PWM
9W1BM24P2H001Voltage: 24 VDC | Speed: 4800 min-1 | Airflow: 1.09 m3/min | Static pressure: 540 Pa | Feature: Pulse sensor, PWM
9W1BM24P2M001Voltage: 24 VDC | Speed: 4100 min-1 | Airflow: 0.93 m3/min | Static pressure: 380 Pa | Feature: Pulse sensor, PWM
9W1BM24H2D001Voltage: 24 VDC | Speed: 4800 min-1 | Airflow: 1.09 m3/min | Static pressure: 540 Pa | Feature: Lock sensor (option)
