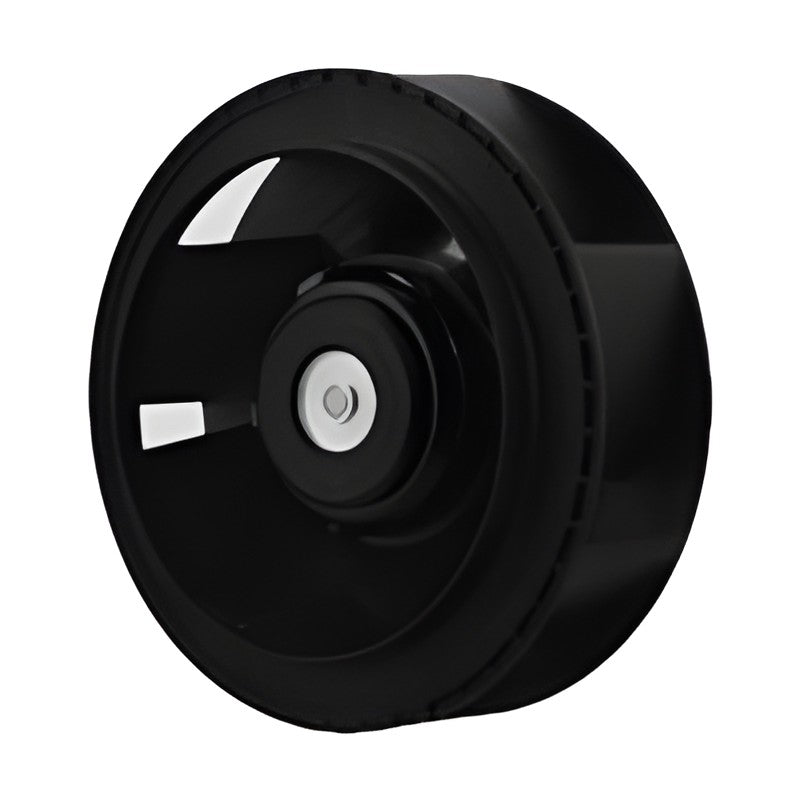

Sanyo Denki San Ace 9W2TGA Splash Proof Centrifugal (dia. 175x69 mm)

The San Ace 175W 9W2TGA type is an IP56-rated splash proof DC centrifugal fan, dia. 175x69 mm, for cooling equipment exposed to water and dust.

Key features

IP56 ingress protection against water and dust (motor and electronics)
Rated voltage 48 VDC; rated speed 5700 min-1
Max. airflow up to 17.3 m3/min; max. static pressure up to 1100 Pa
Locked rotor burnout protection and reverse polarity protection
PWM speed control (25 kHz) with pulse sensor output
Ratings measured with the optional inlet nozzle mounted

Specifications

Series	9W2TGA type
Product	Splash Proof DC Centrifugal Fan
Size	dia. 175x69 mm
Frame	Aluminum motor case
Ingress protection	IP56
Operating temperature	-30 to +60 C
Expected life (L10)	40000 h at 60 C
Motor protection	Locked rotor burnout, reverse polarity
Source	Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 435-436

9W2TGA48P0G001

Voltage: 48 VDC | Speed: 5700 min-1 | Airflow: 17.3 m3/min | Static pressure: 1100 Pa | Feature: Pulse sensor, PWM

DC Centrifugal FansSanyo Denki

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 9W2TGA Splash Proof Centrifugal (dia. 175x69 mm)

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (1)

9W2TGA48P0G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
