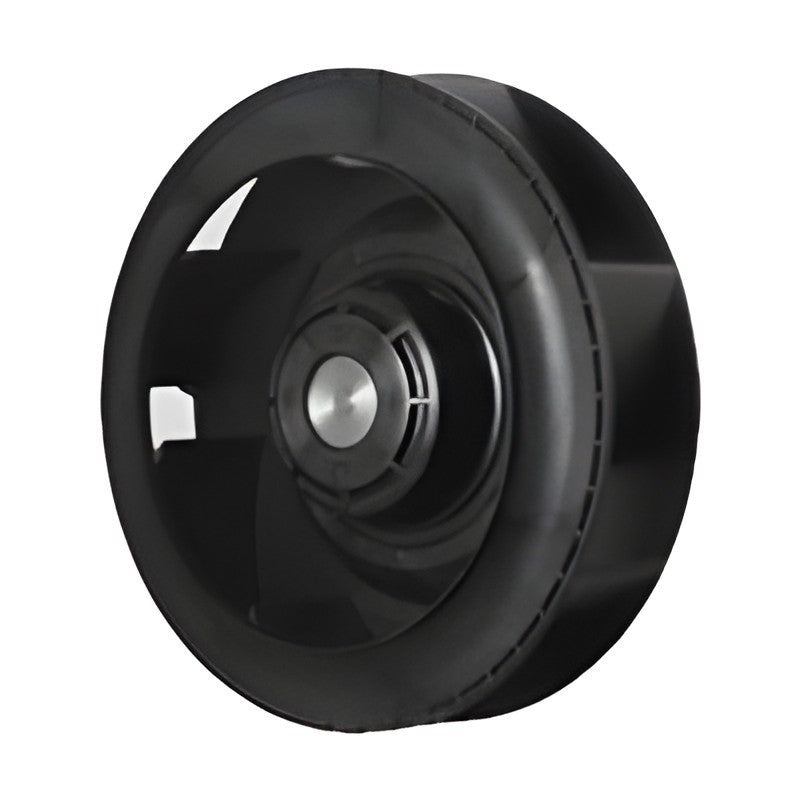

Sanyo Denki San Ace 9W2TP Splash Proof Centrifugal (dia. 221x71 mm)

Sanyo Denki San Ace 9W2TP Splash Proof Centrifugal (dia. 221x71 mm)

The San Ace 221W 9W2TP type is an IP56-rated splash proof DC centrifugal fan, dia. 221x71 mm, for cooling equipment exposed to water and dust.

Key features

  • IP56 ingress protection against water and dust (motor and electronics)
  • Rated voltage 24 / 48 VDC; rated speed 3050 to 3400 min-1
  • Max. airflow up to 19.6 m3/min; max. static pressure up to 659 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output
  • Ratings measured with the optional inlet nozzle mounted

Specifications

Series 9W2TP type
Product Splash Proof DC Centrifugal Fan
Size dia. 221x71 mm
Frame Aluminum motor case
Ingress protection IP56
Operating temperature -25 to +70 C
Expected life (L10) 40000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Feature Pulse sensor, PWM
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 440-442
9W2TP24P0H001 Voltage: 24 VDC | Speed: 3050 min-1 | Airflow: 17.6 m3/min | Static pressure: 530 Pa
9W2TP48P0S001 Voltage: 48 VDC | Speed: 3400 min-1 | Airflow: 19.6 m3/min | Static pressure: 659 Pa
DC Centrifugal FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 9W2TP Splash Proof Centrifugal (dia. 221x71 mm)

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (2)

9W2TP24P0H001, 9W2TP48P0S001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9W2TP24P0H001Voltage: 24 VDC | Speed: 3050 min-1 | Airflow: 17.6 m3/min | Static pressure: 530 Pa
9W2TP48P0S001Voltage: 48 VDC | Speed: 3400 min-1 | Airflow: 19.6 m3/min | Static pressure: 659 Pa
