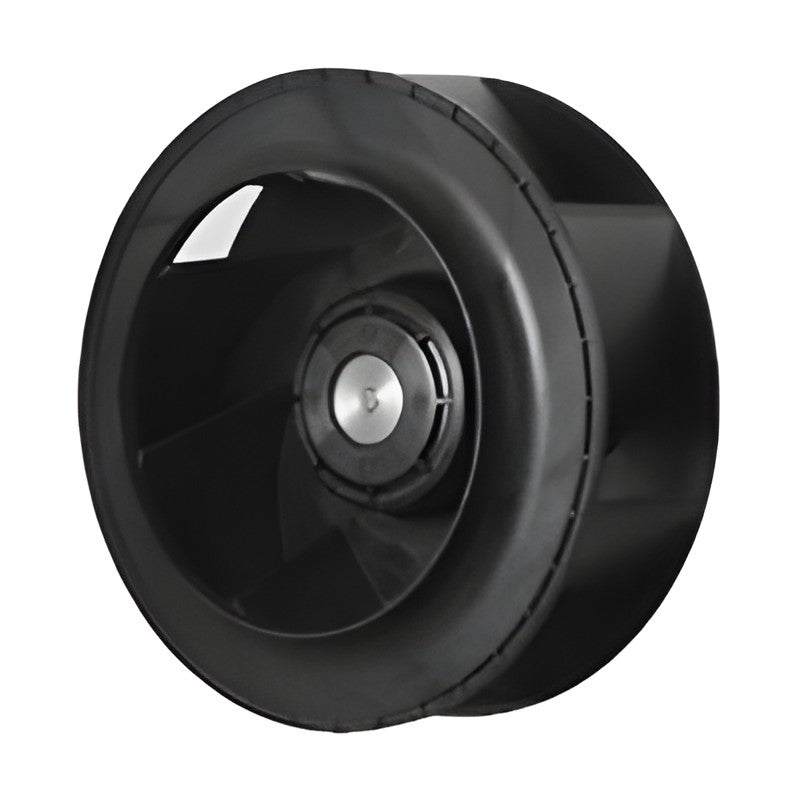

Sanyo Denki San Ace 9W2TS Splash Proof Centrifugal (dia. 225x99 mm)

The San Ace 225W 9W2TS type is an IP56-rated splash proof DC centrifugal fan, dia. 225x99 mm, for cooling equipment exposed to water and dust.

Key features

IP56 ingress protection against water and dust (motor and electronics)
Rated voltage 48 VDC; rated speed 3000 min-1
Max. airflow up to 23.5 m3/min; max. static pressure up to 635 Pa
Locked rotor burnout protection and reverse polarity protection
PWM speed control (25 kHz) with pulse sensor output
Ratings measured with the optional inlet nozzle mounted

Specifications

Series	9W2TS type
Product	Splash Proof DC Centrifugal Fan
Size	dia. 225x99 mm
Frame	Aluminum motor case
Ingress protection	IP56
Operating temperature	-25 to +70 C
Expected life (L10)	40000 h at 60 C
Motor protection	Locked rotor burnout, reverse polarity
Source	Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 443-444

9W2TS48P0S001

Voltage: 48 VDC | Speed: 3000 min-1 | Airflow: 23.5 m3/min | Static pressure: 635 Pa | Feature: Pulse sensor, PWM

DC Centrifugal FansSanyo Denki

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 9W2TS Splash Proof Centrifugal (dia. 225x99 mm)

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (1)

9W2TS48P0S001
