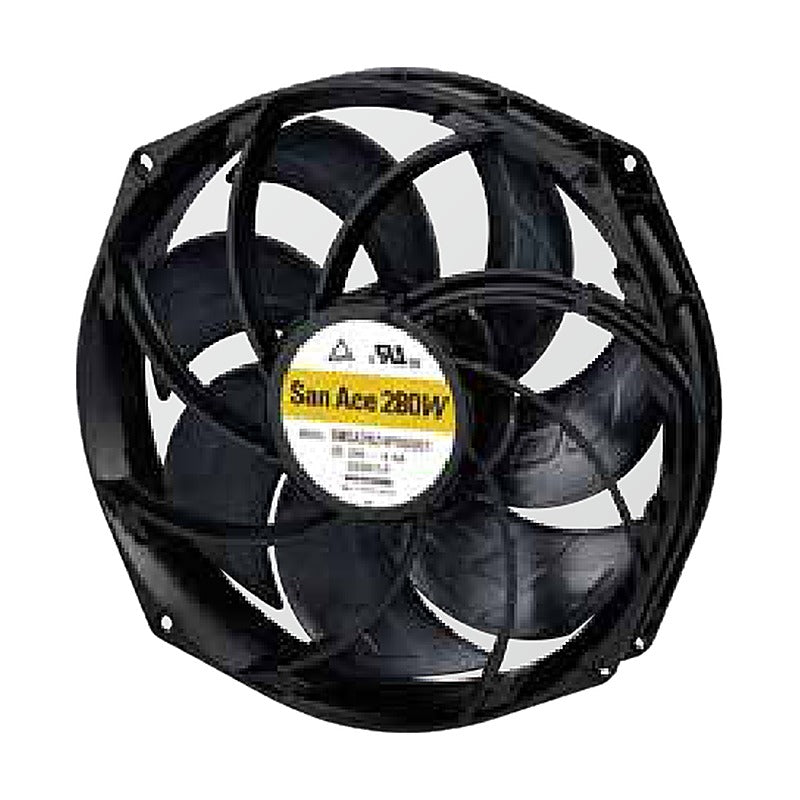

Sanyo Denki San Ace 280W 9WGA Splash Proof Fan (dia. 280x50 mm)

Sanyo Denki San Ace 280W 9WGA Splash Proof Fan (dia. 280x50 mm)

The San Ace 280W 9WGA type is an IP56-rated splash proof DC fan, dia. 280x50 mm, for cooling equipment exposed to water and dust.

Key features

  • IP56 ingress protection against water and dust (motor and electronics)
  • Rated voltage 24 / 48 VDC; rated speed 3400 min-1
  • Max. airflow up to 29 m3/min; max. static pressure up to 350 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output
  • Operates from -40 to +70 C; Eco Product Plus certified

Specifications

Series 9WGA type
Product Splash Proof DC Fan
Size dia. 280x50 mm
Frame Aluminum (black coating)
Ingress protection IP56
Operating temperature -40 to +70 C
Expected life (L10) 40000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Source Sanyo Denki San Ace 280WGA50 leaflet C1157B002 '26.8, p. 1-4
9WGA2824P5G001 Voltage: 24 VDC | Speed: 3400 min-1 | Airflow: 29.0 m3/min | Static pressure: 350 Pa | Feature: Pulse sensor, PWM
9WGA2848P5G001 Voltage: 48 VDC | Speed: 3400 min-1 | Airflow: 29.0 m3/min | Static pressure: 350 Pa | Feature: Pulse sensor, PWM
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 280W 9WGA Splash Proof Fan (dia. 280x50 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9WGA2824P5G001, 9WGA2848P5G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WGA2824P5G001Voltage: 24 VDC | Speed: 3400 min-1 | Airflow: 29.0 m3/min | Static pressure: 350 Pa | Feature: Pulse sensor, PWM
9WGA2848P5G001Voltage: 48 VDC | Speed: 3400 min-1 | Airflow: 29.0 m3/min | Static pressure: 350 Pa | Feature: Pulse sensor, PWM
