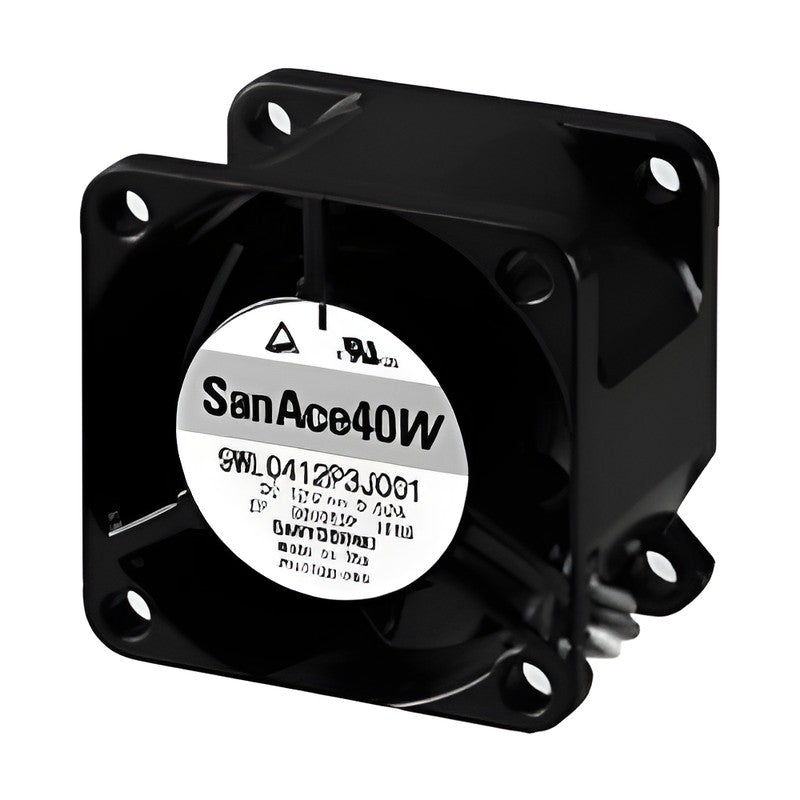

Sanyo Denki San Ace 40W 9WL Splash Proof Fan (40x40x28 mm)

Sanyo Denki San Ace 40W 9WL Splash Proof Fan (40x40x28 mm)

The San Ace 40W 9WL type is an IP68-rated splash proof DC fan, 40x40x28 mm, for cooling equipment exposed to water and dust.

Key features

  • IP68 ingress protection against water and dust (motor and electronics)
  • Rated voltage 12 / 24 VDC; rated speed 15500 to 17500 min-1
  • Max. airflow up to 0.63 m3/min; max. static pressure up to 400 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output

Specifications

Series 9WL type
Product Splash Proof DC Fan
Size 40x40x28 mm
Frame Aluminum (black coating)
Ingress protection IP68
Operating temperature -20 to +70 C
Expected life (L10) 150000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 368-370
9WL0412P3J001 Voltage: 12 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Pulse sensor, PWM
9WL0412P3G001 Voltage: 12 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Pulse sensor, PWM
9WL0424P3J001 Voltage: 24 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Pulse sensor, PWM
9WL0424P3G001 Voltage: 24 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Pulse sensor, PWM
9WL0412G3002 Voltage: 12 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Without sensor (option)
9WL0412G3001 Voltage: 12 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Pulse sensor (option)
9WL0412G3D001 Voltage: 12 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Lock sensor (option)
9WL0412J3002 Voltage: 12 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Without sensor (option)
9WL0412J3001 Voltage: 12 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Pulse sensor (option)
9WL0424G3002 Voltage: 24 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Without sensor (option)
9WL0424G3001 Voltage: 24 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Pulse sensor (option)
9WL0424J3002 Voltage: 24 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Without sensor (option)
9WL0424J3001 Voltage: 24 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Pulse sensor (option)
DC Axial FansSanyo Denki
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40W 9WL Splash Proof Fan (40x40x28 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (13)

9WL0412P3J001, 9WL0412P3G001, 9WL0424P3J001, 9WL0424P3G001, 9WL0412G3002, 9WL0412G3001, 9WL0412G3D001, 9WL0412J3002, 9WL0412J3001, 9WL0424G3002 + 3 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WL0412P3J001Voltage: 12 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Pulse sensor, PWM
9WL0412P3G001Voltage: 12 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Pulse sensor, PWM
9WL0424P3J001Voltage: 24 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Pulse sensor, PWM
9WL0424P3G001Voltage: 24 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Pulse sensor, PWM
9WL0412G3002Voltage: 12 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Without sensor (option)
9WL0412G3001Voltage: 12 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Pulse sensor (option)
9WL0412G3D001Voltage: 12 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Lock sensor (option)
9WL0412J3002Voltage: 12 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Without sensor (option)
9WL0412J3001Voltage: 12 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Pulse sensor (option)
9WL0424G3002Voltage: 24 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Without sensor (option)
9WL0424G3001Voltage: 24 VDC | Speed: 15500 min-1 | Airflow: 0.56 m3/min | Static pressure: 310 Pa | Feature: Pulse sensor (option)
9WL0424J3002Voltage: 24 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Without sensor (option)
9WL0424J3001Voltage: 24 VDC | Speed: 17500 min-1 | Airflow: 0.63 m3/min | Static pressure: 400 Pa | Feature: Pulse sensor (option)
