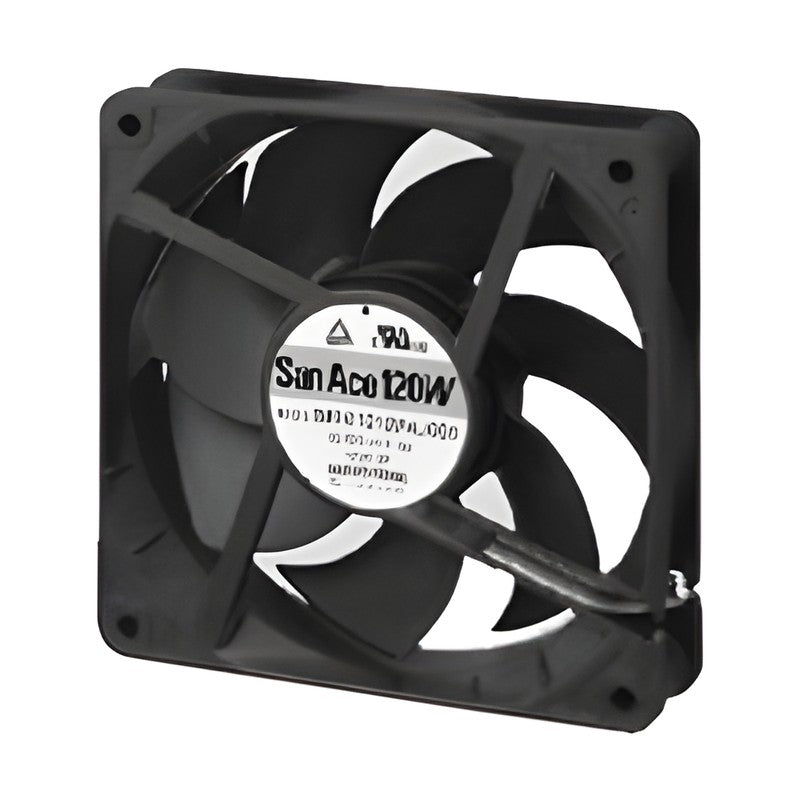

Sanyo Denki San Ace 120W 9WPA Splash Proof Fan (120x120x25 mm)

Sanyo Denki San Ace 120W 9WPA Splash Proof Fan (120x120x25 mm)

The San Ace 120W 9WPA type is an IP68-rated splash proof DC fan, 120x120x25 mm, for cooling equipment exposed to water and dust.

Key features

  • IP68 ingress protection against water and dust (motor and electronics)
  • Rated voltage 12 / 24 VDC; rated speed 2400 to 5400 min-1
  • Max. airflow up to 4.2 m3/min; max. static pressure up to 210 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output

Specifications

Series 9WPA type
Product Splash Proof DC Fan
Size 120x120x25 mm
Frame Plastic
Ingress protection IP68
Expected life (L10) 40000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 398-401
9WPA1212P4J001 Voltage: 12 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA1212P4G001 Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA1224P4J001 Voltage: 24 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA1224P4G001 Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA1212J4001 Voltage: 12 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, ribbed
9WPA1212G4001 Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, ribbed
9WPA1212H4001 Voltage: 12 VDC | Speed: 2400 min-1 | Airflow: 1.85 m3/min | Static pressure: 47.0 Pa | Feature: Pulse sensor, ribbed
9WPA1224J4001 Voltage: 24 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, ribbed
9WPA1224G4001 Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, ribbed
9WPA1224H4001 Voltage: 24 VDC | Speed: 2400 min-1 | Airflow: 1.85 m3/min | Static pressure: 47.0 Pa | Feature: Pulse sensor, ribbed
9WPA1212G4002 Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Without sensor, ribbed (option)
9WPA1212G40011 Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, ribless
9WPA1212P4G0011 Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, PWM, ribless (option)
9WPA1212H40011 Voltage: 12 VDC | Speed: 2400 min-1 | Airflow: 1.85 m3/min | Static pressure: 47.0 Pa | Feature: Pulse sensor, ribless
9WPA1212J40011 Voltage: 12 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, ribless
9WPA1212P4J0011 Voltage: 12 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribless (option)
9WPA1224G40011 Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, ribless
9WPA1224P4G0011 Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, PWM, ribless (option)
9WPA1224H40011 Voltage: 24 VDC | Speed: 2400 min-1 | Airflow: 1.85 m3/min | Static pressure: 47.0 Pa | Feature: Pulse sensor, ribless
9WPA1224J40011 Voltage: 24 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, ribless
9WPA1224P4J0011 Voltage: 24 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribless (option)
DC Axial FansSanyo Denki
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120W 9WPA Splash Proof Fan (120x120x25 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (21)

9WPA1212P4J001, 9WPA1212P4G001, 9WPA1224P4J001, 9WPA1224P4G001, 9WPA1212J4001, 9WPA1212G4001, 9WPA1212H4001, 9WPA1224J4001, 9WPA1224G4001, 9WPA1224H4001 + 11 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WPA1212P4J001Voltage: 12 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA1212P4G001Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA1224P4J001Voltage: 24 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA1224P4G001Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA1212J4001Voltage: 12 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, ribbed
9WPA1212G4001Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, ribbed
9WPA1212H4001Voltage: 12 VDC | Speed: 2400 min-1 | Airflow: 1.85 m3/min | Static pressure: 47.0 Pa | Feature: Pulse sensor, ribbed
9WPA1224J4001Voltage: 24 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, ribbed
9WPA1224G4001Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, ribbed
9WPA1224H4001Voltage: 24 VDC | Speed: 2400 min-1 | Airflow: 1.85 m3/min | Static pressure: 47.0 Pa | Feature: Pulse sensor, ribbed
9WPA1212G4002Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Without sensor, ribbed (option)
9WPA1212G40011Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, ribless
9WPA1212P4G0011Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, PWM, ribless (option)
9WPA1212H40011Voltage: 12 VDC | Speed: 2400 min-1 | Airflow: 1.85 m3/min | Static pressure: 47.0 Pa | Feature: Pulse sensor, ribless
9WPA1212J40011Voltage: 12 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, ribless
9WPA1212P4J0011Voltage: 12 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribless (option)
9WPA1224G40011Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, ribless
9WPA1224P4G0011Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 3.30 m3/min | Static pressure: 135 Pa | Feature: Pulse sensor, PWM, ribless (option)
9WPA1224H40011Voltage: 24 VDC | Speed: 2400 min-1 | Airflow: 1.85 m3/min | Static pressure: 47.0 Pa | Feature: Pulse sensor, ribless
9WPA1224J40011Voltage: 24 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, ribless
9WPA1224P4J0011Voltage: 24 VDC | Speed: 5400 min-1 | Airflow: 4.20 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribless (option)
