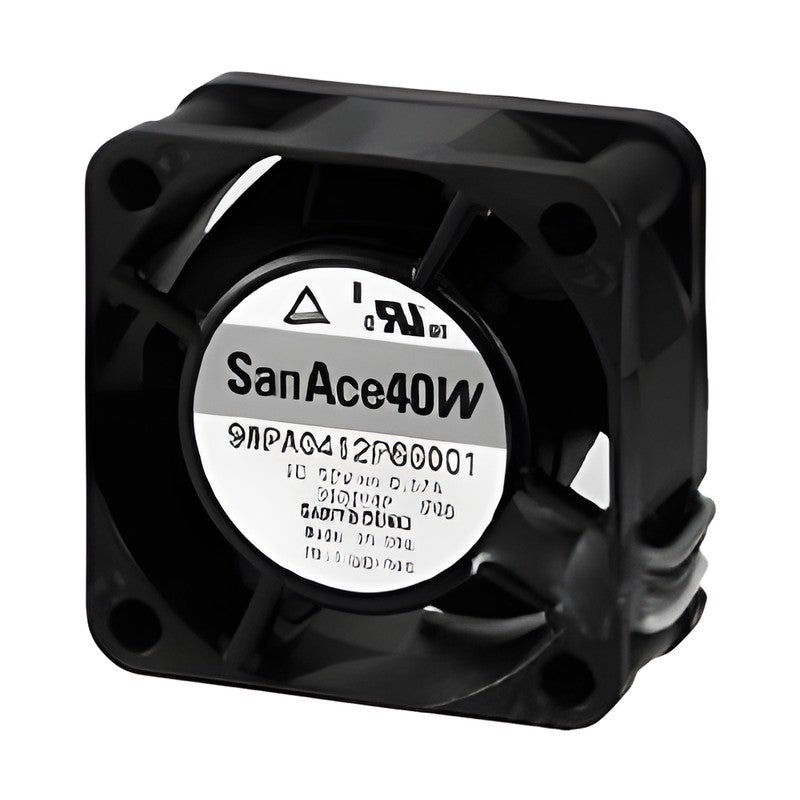

Sanyo Denki San Ace 40W 9WPA Splash Proof Fan (40x40x20 mm)

Sanyo Denki San Ace 40W 9WPA Splash Proof Fan (40x40x20 mm)

The San Ace 40W 9WPA type is an IP68-rated splash proof DC fan, 40x40x20 mm, for cooling equipment exposed to water and dust.

Key features

  • IP68 ingress protection against water and dust (motor and electronics)
  • Rated voltage 12 / 24 VDC; rated speed 8800 to 13700 min-1
  • Max. airflow up to 0.38 m3/min; max. static pressure up to 210 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output

Specifications

Series 9WPA type
Product Splash Proof DC Fan
Size 40x40x20 mm
Frame Plastic
Ingress protection IP68
Operating temperature -20 to +70 C
Expected life (L10) 40000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 362-364
9WPA0412P6G001 Voltage: 12 VDC | Speed: 13700 min-1 | Airflow: 0.38 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA0424P6G001 Voltage: 24 VDC | Speed: 13700 min-1 | Airflow: 0.38 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA0412H6001 Voltage: 12 VDC | Speed: 8800 min-1 | Airflow: 0.24 m3/min | Static pressure: 81 Pa | Feature: Pulse sensor, ribbed
9WPA0424H6001 Voltage: 24 VDC | Speed: 8800 min-1 | Airflow: 0.24 m3/min | Static pressure: 81 Pa | Feature: Pulse sensor, ribbed
9WPA0412H6002 Voltage: 12 VDC | Speed: 8800 min-1 | Airflow: 0.24 m3/min | Static pressure: 81 Pa | Feature: Without sensor, ribbed (option)
9WPA0424H6002 Voltage: 24 VDC | Speed: 8800 min-1 | Airflow: 0.24 m3/min | Static pressure: 81 Pa | Feature: Without sensor, ribbed (option)
9WP0412H6001 Legacy code (Deleted Models list p.671) | Voltage: 12 VDC | Speed: 8000 min-1 | Airflow: 0.225 m3/min | Frame: Plastic
9WP0412F6001 Legacy code (Deleted Models list p.671) | Voltage: 12 VDC | Speed: 6500 min-1 | Airflow: 0.183 m3/min | Frame: Plastic
DC Axial FansSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40W 9WPA Splash Proof Fan (40x40x20 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (8)

9WPA0412P6G001, 9WPA0424P6G001, 9WPA0412H6001, 9WPA0424H6001, 9WPA0412H6002, 9WPA0424H6002, 9WP0412H6001, 9WP0412F6001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WPA0412P6G001Voltage: 12 VDC | Speed: 13700 min-1 | Airflow: 0.38 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA0424P6G001Voltage: 24 VDC | Speed: 13700 min-1 | Airflow: 0.38 m3/min | Static pressure: 210 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA0412H6001Voltage: 12 VDC | Speed: 8800 min-1 | Airflow: 0.24 m3/min | Static pressure: 81 Pa | Feature: Pulse sensor, ribbed
9WPA0424H6001Voltage: 24 VDC | Speed: 8800 min-1 | Airflow: 0.24 m3/min | Static pressure: 81 Pa | Feature: Pulse sensor, ribbed
9WPA0412H6002Voltage: 12 VDC | Speed: 8800 min-1 | Airflow: 0.24 m3/min | Static pressure: 81 Pa | Feature: Without sensor, ribbed (option)
9WPA0424H6002Voltage: 24 VDC | Speed: 8800 min-1 | Airflow: 0.24 m3/min | Static pressure: 81 Pa | Feature: Without sensor, ribbed (option)
9WP0412H6001Legacy code (Deleted Models list p.671) | Voltage: 12 VDC | Speed: 8000 min-1 | Airflow: 0.225 m3/min | Frame: Plastic
9WP0412F6001Legacy code (Deleted Models list p.671) | Voltage: 12 VDC | Speed: 6500 min-1 | Airflow: 0.183 m3/min | Frame: Plastic
