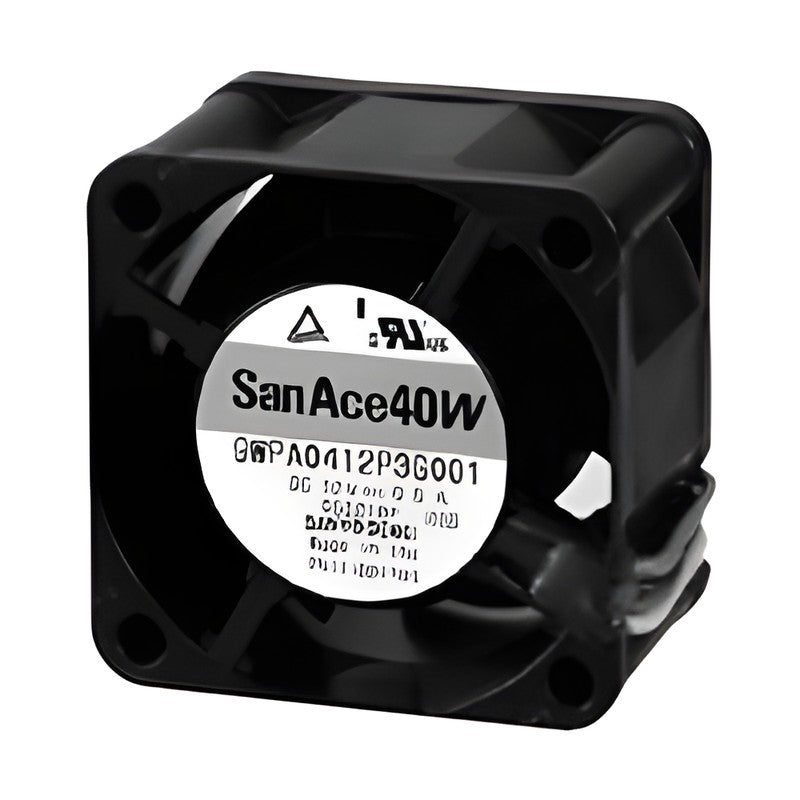

Sanyo Denki San Ace 40W 9WPA Splash Proof Fan (40x40x28 mm)

Sanyo Denki San Ace 40W 9WPA Splash Proof Fan (40x40x28 mm)

The San Ace 40W 9WPA type is an IP68-rated splash proof DC fan, 40x40x28 mm, for cooling equipment exposed to water and dust.

Key features

  • IP68 ingress protection against water and dust (motor and electronics)
  • Rated voltage 12 / 24 VDC; rated speed 18500 to 22200 min-1
  • Max. airflow up to 0.63 m3/min; max. static pressure up to 555 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output

Specifications

Series 9WPA type
Product Splash Proof DC Fan
Size 40x40x28 mm
Frame Plastic
Ingress protection IP68
Operating temperature -20 to +70 C
Expected life (L10) 40000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 365-367
9WPA0412P3G001 Voltage: 12 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA0424P3G001 Voltage: 24 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA0412H3001 Voltage: 12 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Pulse sensor, ribbed
9WPA0424H3001 Voltage: 24 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Pulse sensor, ribbed
9WPA0412H3002 Voltage: 12 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Without sensor, ribbed (option)
9WPA0412H30011 Voltage: 12 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Pulse sensor, ribless
9WPA0412H30021 Voltage: 12 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Without sensor, ribless (option)
9WPA0412G3002 Voltage: 12 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Without sensor, ribbed (option)
9WPA0412G3001 Voltage: 12 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, ribbed (option)
9WPA0412P3G0011 Voltage: 12 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, PWM, ribless
9WPA0424H3002 Voltage: 24 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Without sensor, ribbed (option)
9WPA0424H30011 Voltage: 24 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Pulse sensor, ribless
9WPA0424H30021 Voltage: 24 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Without sensor, ribless (option)
9WPA0424P3G0011 Voltage: 24 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, PWM, ribless
DC Axial FansSanyo Denki
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40W 9WPA Splash Proof Fan (40x40x28 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (14)

9WPA0412P3G001, 9WPA0424P3G001, 9WPA0412H3001, 9WPA0424H3001, 9WPA0412H3002, 9WPA0412H30011, 9WPA0412H30021, 9WPA0412G3002, 9WPA0412G3001, 9WPA0412P3G0011 + 4 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WPA0412P3G001Voltage: 12 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA0424P3G001Voltage: 24 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, PWM, ribbed
9WPA0412H3001Voltage: 12 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Pulse sensor, ribbed
9WPA0424H3001Voltage: 24 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Pulse sensor, ribbed
9WPA0412H3002Voltage: 12 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Without sensor, ribbed (option)
9WPA0412H30011Voltage: 12 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Pulse sensor, ribless
9WPA0412H30021Voltage: 12 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Without sensor, ribless (option)
9WPA0412G3002Voltage: 12 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Without sensor, ribbed (option)
9WPA0412G3001Voltage: 12 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, ribbed (option)
9WPA0412P3G0011Voltage: 12 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, PWM, ribless
9WPA0424H3002Voltage: 24 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Without sensor, ribbed (option)
9WPA0424H30011Voltage: 24 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Pulse sensor, ribless
9WPA0424H30021Voltage: 24 VDC | Speed: 18500 min-1 | Airflow: 0.52 m3/min | Static pressure: 375 Pa | Feature: Without sensor, ribless (option)
9WPA0424P3G0011Voltage: 24 VDC | Speed: 22200 min-1 | Airflow: 0.63 m3/min | Static pressure: 555 Pa | Feature: Pulse sensor, PWM, ribless
