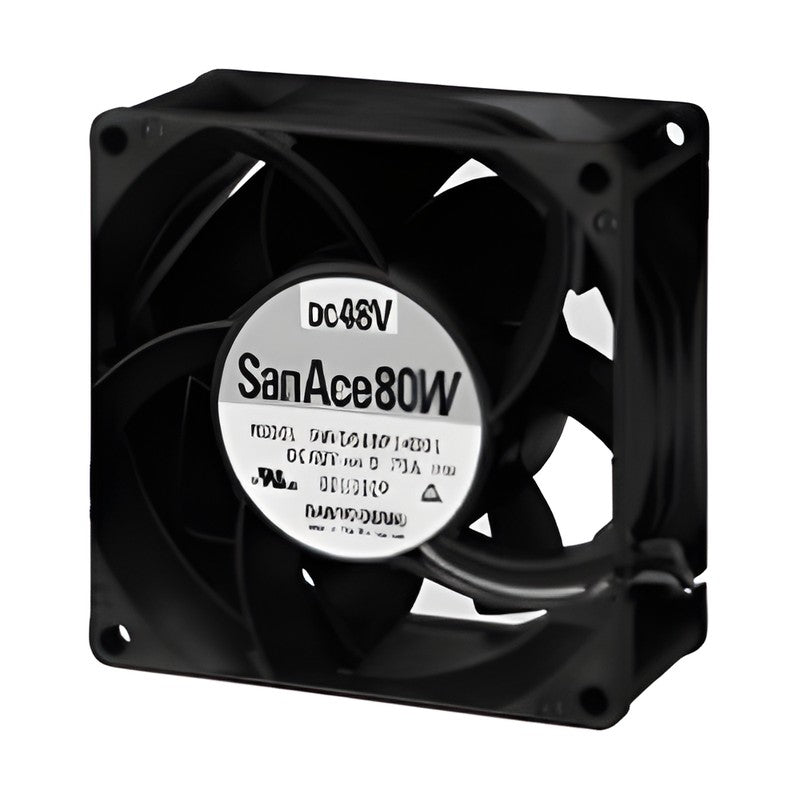

Sanyo Denki San Ace 80W 9WV Splash Proof Fan (80x80x38 mm)

Sanyo Denki San Ace 80W 9WV Splash Proof Fan (80x80x38 mm)

The San Ace 80W 9WV type is an IP68-rated splash proof DC fan, 80x80x38 mm, for cooling equipment exposed to water and dust.

Key features

  • IP68 ingress protection against water and dust (motor and electronics)
  • Rated voltage 12 / 48 VDC; rated speed 6000 to 9700 min-1
  • Max. airflow up to 3.7 m3/min; max. static pressure up to 440 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output

Specifications

Series 9WV type
Product Splash Proof DC Fan
Size 80x80x38 mm
Frame Plastic
Ingress protection IP68
Operating temperature -20 to +70 C
Expected life (L10) 40000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 384-385
9WV0812P1M001 Voltage: 12 VDC | Speed: 6000 min-1 | Airflow: 2.29 m3/min | Static pressure: 169 Pa | Feature: Pulse sensor, PWM
9WV0848P1H001 Voltage: 48 VDC | Speed: 9700 min-1 | Airflow: 3.7 m3/min | Static pressure: 440 Pa | Feature: Pulse sensor, PWM
9WV0812M1001 Voltage: 12 VDC | Speed: 6000 min-1 | Airflow: 2.29 m3/min | Static pressure: 169 Pa | Feature: Pulse sensor (option)
9WV0812M1D001 Voltage: 12 VDC | Speed: 6000 min-1 | Airflow: 2.29 m3/min | Static pressure: 169 Pa | Feature: Lock sensor (option)
9WV0812P1M0011 Voltage: 12 VDC | Speed: 6000 min-1 | Airflow: 2.29 m3/min | Static pressure: 169 Pa | Feature: Pulse sensor, PWM
9WV0848P1H0011 Voltage: 48 VDC | Speed: 9700 min-1 | Airflow: 3.7 m3/min | Static pressure: 440 Pa | Feature: Pulse sensor, PWM
DC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80W 9WV Splash Proof Fan (80x80x38 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (6)

9WV0812P1M001, 9WV0848P1H001, 9WV0812M1001, 9WV0812M1D001, 9WV0812P1M0011, 9WV0848P1H0011

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WV0812P1M001Voltage: 12 VDC | Speed: 6000 min-1 | Airflow: 2.29 m3/min | Static pressure: 169 Pa | Feature: Pulse sensor, PWM
9WV0848P1H001Voltage: 48 VDC | Speed: 9700 min-1 | Airflow: 3.7 m3/min | Static pressure: 440 Pa | Feature: Pulse sensor, PWM
9WV0812M1001Voltage: 12 VDC | Speed: 6000 min-1 | Airflow: 2.29 m3/min | Static pressure: 169 Pa | Feature: Pulse sensor (option)
9WV0812M1D001Voltage: 12 VDC | Speed: 6000 min-1 | Airflow: 2.29 m3/min | Static pressure: 169 Pa | Feature: Lock sensor (option)
9WV0812P1M0011Voltage: 12 VDC | Speed: 6000 min-1 | Airflow: 2.29 m3/min | Static pressure: 169 Pa | Feature: Pulse sensor, PWM
9WV0848P1H0011Voltage: 48 VDC | Speed: 9700 min-1 | Airflow: 3.7 m3/min | Static pressure: 440 Pa | Feature: Pulse sensor, PWM
