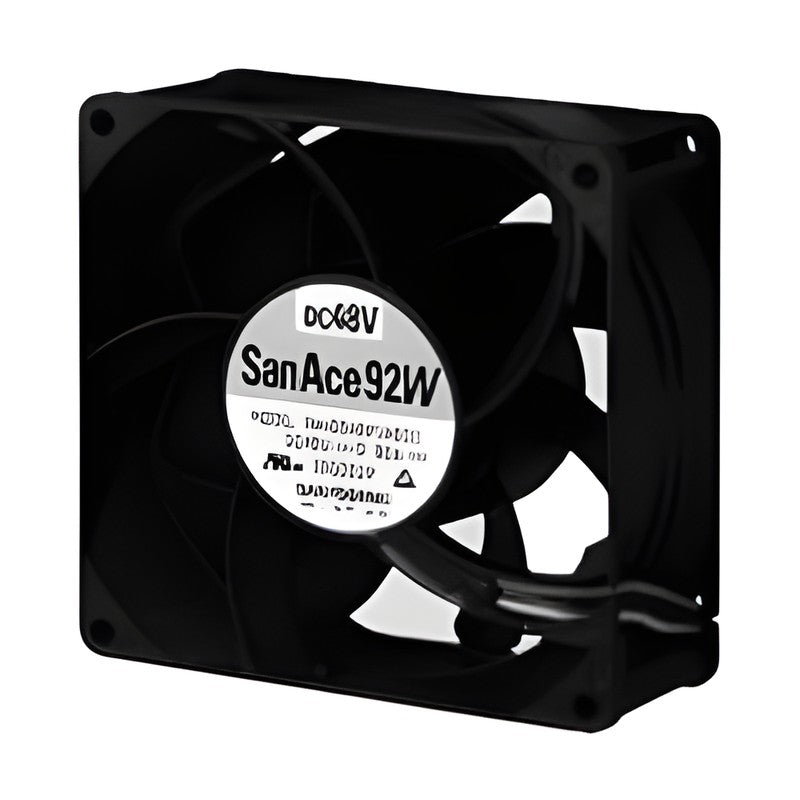

Sanyo Denki San Ace 92W 9WV Splash Proof Fan (92x92x38 mm)

Sanyo Denki San Ace 92W 9WV Splash Proof Fan (92x92x38 mm)

The San Ace 92W 9WV type is an IP68-rated splash proof DC fan, 92x92x38 mm, for cooling equipment exposed to water and dust.

Key features

  • IP68 ingress protection against water and dust (motor and electronics)
  • Rated voltage 24 / 48 VDC; rated speed 8500 min-1
  • Max. airflow up to 5.05 m3/min; max. static pressure up to 385 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output

Specifications

Series 9WV type
Product Splash Proof DC Fan
Size 92x92x38 mm
Frame Plastic
Ingress protection IP68
Expected life (L10) 30000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Speed 8500 min-1
Airflow 5.05 m3/min
Static pressure 385 Pa
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 396-397
9WV0924P1H001 Voltage: 24 VDC | Feature: Pulse sensor, PWM
9WV0948P1H001 Voltage: 48 VDC | Feature: Pulse sensor, PWM
9WV0924H1002 Voltage: 24 VDC | Feature: Without sensor (option)
9WV0924H1D001 Voltage: 24 VDC | Feature: Lock sensor (option)
DC Axial FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92W 9WV Splash Proof Fan (92x92x38 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (4)

9WV0924P1H001, 9WV0948P1H001, 9WV0924H1002, 9WV0924H1D001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WV0924P1H001Voltage: 24 VDC | Feature: Pulse sensor, PWM
9WV0948P1H001Voltage: 48 VDC | Feature: Pulse sensor, PWM
9WV0924H1002Voltage: 24 VDC | Feature: Without sensor (option)
9WV0924H1D001Voltage: 24 VDC | Feature: Lock sensor (option)
