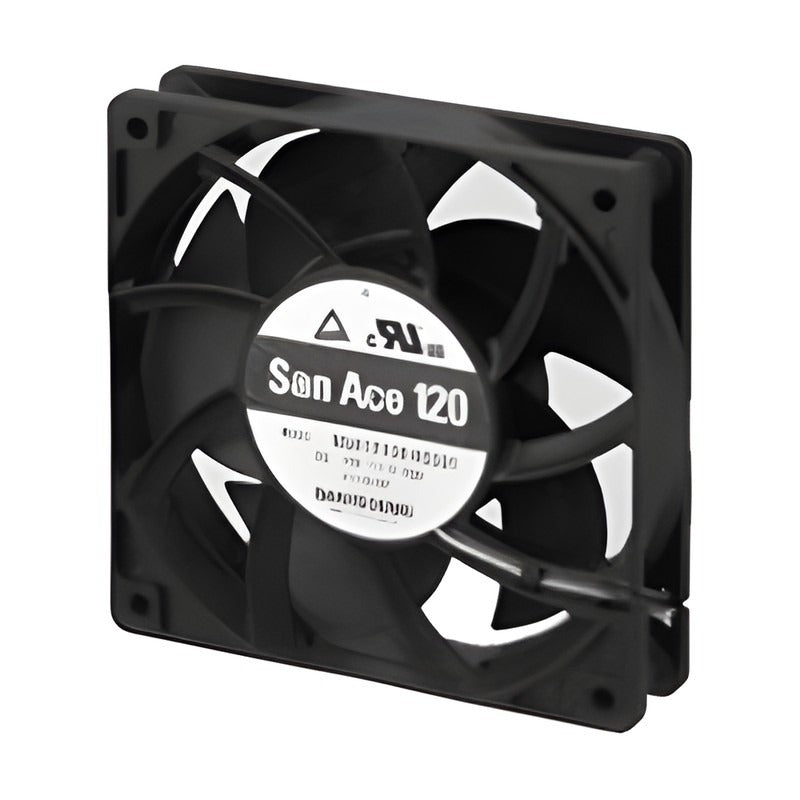

Sanyo Denki San Ace 120 9GA DC Fan 120x120x25 mm (Low Power)

Sanyo Denki San Ace 120 9GA DC Fan 120x120x25 mm (Low Power)

The San Ace 120 9GA is a 120x120x25 mm low power consumption DC axial fan with pulse sensor, offered with or without PWM speed control.

Key features

  • Plastic frame and impeller (UL 94V-0); mass 280 g
  • Printed model numbers for 12 V, 24 V, 48 V rated voltage
  • Low power consumption fan; PWM (25 kHz) and non-PWM pulse sensor versions
  • Ribbed frame; the catalogue notes models without ribs are also available
  • Lock sensor, no-sensor, no-rib and PWM option models per Model Index
  • Locked rotor burnout protection and reverse polarity protection

Specifications

Size 120x120x25 mm
Series San Ace 120 9GA
Material Plastic frame and impeller (UL 94V-0)
Mass 280 g
Operating temp. -20 to +70 °C
Expected life 40000 h/60°C (70000 h/40°C)
Motor protection Locked rotor burnout, reverse polarity
Compatible options 109-019E, 109-019K, 109-1000G, 109-1000F13/F20/F30/F40
Source Sanyo Denki San Ace General Catalog C1152B001, p. 160-163
9GA1212P4G001 Voltage: 12 VDC (10.2 to 13.8 V) | Speed: 6400 min-1 (2550 at 25% PWM) | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor, PWM | SPL: 57 dB(A)
9GA1212P4S001 Voltage: 12 VDC (10.2 to 13.8 V) | Speed: 5400 min-1 (2550 at 25% PWM) | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor, PWM | SPL: 54 dB(A)
9GA1224P4G001 Voltage: 24 VDC (20.4 to 27.6 V) | Speed: 6400 min-1 (2550 at 25% PWM) | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor, PWM | SPL: 57 dB(A)
9GA1224P4S001 Voltage: 24 VDC (20.4 to 27.6 V) | Speed: 5400 min-1 (2550 at 25% PWM) | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor, PWM | SPL: 54 dB(A)
9GA1248P4G001 Voltage: 48 VDC (40.8 to 53 V) | Speed: 6400 min-1 (2550 at 25% PWM) | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor, PWM | SPL: 57 dB(A)
9GA1248P4S001 Voltage: 48 VDC (40.8 to 53 V) | Speed: 5400 min-1 (2550 at 25% PWM) | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor, PWM | SPL: 54 dB(A)
9GA1212G4001 Voltage: 12 VDC (7 to 13.8 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor | SPL: 57 dB(A)
9GA1212S4001 Voltage: 12 VDC (7 to 13.8 V) | Speed: 5400 min-1 | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor | SPL: 54 dB(A)
9GA1224G4001 Voltage: 24 VDC (14 to 27.6 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor | SPL: 57 dB(A)
9GA1224S4001 Voltage: 24 VDC (14 to 27.6 V) | Speed: 5400 min-1 | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor | SPL: 54 dB(A)
9GA1248G4001 Voltage: 48 VDC (36 to 53 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor | SPL: 57 dB(A)
9GA1248S4001 Voltage: 48 VDC (36 to 53 V) | Speed: 5400 min-1 | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor | SPL: 54 dB(A)
9GA1212G40011 Voltage: 12 VDC (7 to 13.8 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor, no ribs (option) | SPL: 57 dB(A)
9GA1212P4G0011 Voltage: 12 VDC (7 to 13.8 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor, PWM, no ribs (option) | SPL: 57 dB(A)
9GA1212S4002 Voltage: 12 VDC (10.2 to 13.8 V) | Speed: 5400 min-1 | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Without sensor (option) | SPL: 54 dB(A)
9GA1212S40011 Voltage: 12 VDC (10.2 to 13.8 V) | Speed: 5400 min-1 | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor, no ribs (option) | SPL: 54 dB(A)
9GA1212P4S0011 Voltage: 12 VDC (10.2 to 13.8 V) | Speed: 5400 min-1 (2550 at 25% PWM) | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor, PWM, no ribs (option) | SPL: 54 dB(A)
9GA1224G4002 Voltage: 24 VDC (14 to 27.6 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Without sensor (option) | SPL: 57 dB(A)
9GA1224G4D001 Voltage: 24 VDC (14 to 27.6 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Lock sensor (option) | SPL: 57 dB(A)
9GA1224G40011 Voltage: 24 VDC (14 to 27.6 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor, no ribs (option) | SPL: 57 dB(A)
9GA1224P4G0011 Voltage: 24 VDC (14 to 27.6 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor, PWM, no ribs (option) | SPL: 57 dB(A)
9GA1224S4D001 Voltage: 24 VDC (20.4 to 27.6 V) | Speed: 5400 min-1 | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Lock sensor (option) | SPL: 54 dB(A)
9GA1224S40011 Voltage: 24 VDC (20.4 to 27.6 V) | Speed: 5400 min-1 | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor, no ribs (option) | SPL: 54 dB(A)
9GA1224P4S0011 Voltage: 24 VDC (20.4 to 27.6 V) | Speed: 5400 min-1 (2550 at 25% PWM) | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor, PWM, no ribs (option) | SPL: 54 dB(A)
9GA1224S4002 Voltage: 24 VDC (14 to 27.6 V) | Speed: 5400 min-1 | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Without sensor (option) | SPL: 54 dB(A)
9GA1248G40011 Voltage: 48 VDC (36 to 53 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor, no ribs (option) | SPL: 57 dB(A)
9GA1248P4G0011 Voltage: 48 VDC (36 to 53 V) | Speed: 6400 min-1 | Airflow: 3.8 m3/min (134 CFM) | Static pressure: 365 Pa (1.47 inH2O) | Feature: Pulse sensor, PWM, no ribs (option) | SPL: 57 dB(A)
9GA1248S40011 Voltage: 48 VDC (40.8 to 53 V) | Speed: 5400 min-1 | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor, no ribs (option) | SPL: 54 dB(A)
9GA1248P4S0011 Voltage: 48 VDC (40.8 to 53 V) | Speed: 5400 min-1 (2550 at 25% PWM) | Airflow: 3.2 m3/min (113 CFM) | Static pressure: 260 Pa (1.04 inH2O) | Feature: Pulse sensor, PWM, no ribs (option) | SPL: 54 dB(A)
