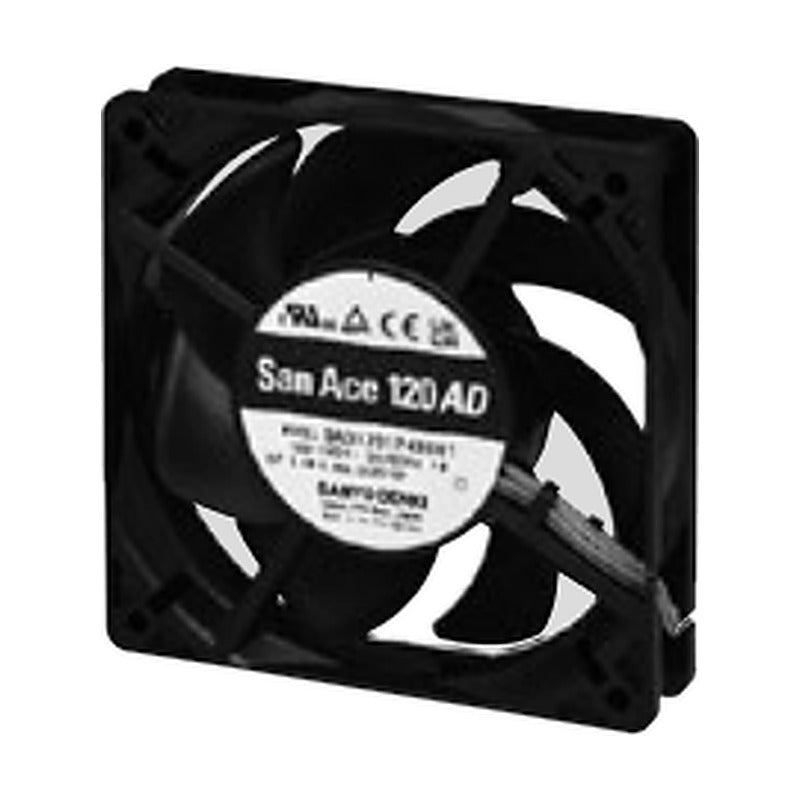

Sanyo Denki San Ace 120AD 9AD ACDC Fan (120x120x25 mm)

Sanyo Denki San Ace 120AD 9AD ACDC Fan (120x120x25 mm)

San Ace 120AD 9AD ACDC fan, 120x120x25 mm, running on AC input with an internal AC-DC converter for DC-fan performance.

Key features

  • AC input (internally converted to DC) with high efficiency of a DC fan
  • Rated voltage 100 to 240 VAC; 7 model(s) in the catalogue specification table
  • Max. airflow up to 2.35 m3/min, max. static pressure up to 62 Pa
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 120x120x25 mm
Fan type ACDC axial fan (AC input)
Voltage 100 to 240 VAC
Frequency 50/60 Hz
Operating voltage range 90 to 264 VAC
Operating temperature -20 to +70 °C
Expected life (L10) 60000 h at 60 °C
Mass 180 g
Material Frame: Plastic (UL 94V-0), Impeller: Plastic (UL 94V-0)
Motor protection Locked rotor burnout protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 501-503; Model Index p. 664-665
9AD1201H4002 Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: No sensor, ribs
9AD1201M4002 Speed: 2250 min-1 | Airflow: 1.76 m3/min | Static pressure: 35 Pa | SPL: 34 dB(A) | Feature: No sensor, ribs
9AD1201L4002 Speed: 1800 min-1 | Airflow: 1.41 m3/min | Static pressure: 22 Pa | SPL: 26 dB(A) | Feature: No sensor, ribs
9AD1201H4H001 Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: Low-speed sensor, ribs
9AD1201M4H001 Speed: 2250 min-1 | Airflow: 1.76 m3/min | Static pressure: 35 Pa | SPL: 34 dB(A) | Feature: Low-speed sensor, ribs
9AD1201L4H001 Speed: 1800 min-1 | Airflow: 1.41 m3/min | Static pressure: 22 Pa | SPL: 26 dB(A) | Feature: Low-speed sensor, ribs
9AD1201P4H001 Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: PWM, pulse sensor, ribs
9AD1201H40021 Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: No sensor, no ribs (option)
9AD1201H4H0011 Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD1201P4H0011 Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: PWM, pulse sensor, no ribs (option)
9AD1201M40021 Speed: 2250 min-1 | Airflow: 1.76 m3/min | Static pressure: 35 Pa | SPL: 34 dB(A) | Feature: No sensor, no ribs (option)
9AD1201M4H0011 Speed: 2250 min-1 | Airflow: 1.76 m3/min | Static pressure: 35 Pa | SPL: 34 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD1201L40021 Speed: 1800 min-1 | Airflow: 1.41 m3/min | Static pressure: 22 Pa | SPL: 26 dB(A) | Feature: No sensor, no ribs (option)
9AD1201L4H0011 Speed: 1800 min-1 | Airflow: 1.41 m3/min | Static pressure: 22 Pa | SPL: 26 dB(A) | Feature: Low-speed sensor, no ribs (option)
ACDC FansSanyo Denki
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120AD 9AD ACDC Fan (120x120x25 mm)

Brand Sanyo Denki·ACDC Fans

Available part numbers (14)

9AD1201H4002, 9AD1201M4002, 9AD1201L4002, 9AD1201H4H001, 9AD1201M4H001, 9AD1201L4H001, 9AD1201P4H001, 9AD1201H40021, 9AD1201H4H0011, 9AD1201P4H0011 + 4 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9AD1201H4002Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: No sensor, ribs
9AD1201M4002Speed: 2250 min-1 | Airflow: 1.76 m3/min | Static pressure: 35 Pa | SPL: 34 dB(A) | Feature: No sensor, ribs
9AD1201L4002Speed: 1800 min-1 | Airflow: 1.41 m3/min | Static pressure: 22 Pa | SPL: 26 dB(A) | Feature: No sensor, ribs
9AD1201H4H001Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: Low-speed sensor, ribs
9AD1201M4H001Speed: 2250 min-1 | Airflow: 1.76 m3/min | Static pressure: 35 Pa | SPL: 34 dB(A) | Feature: Low-speed sensor, ribs
9AD1201L4H001Speed: 1800 min-1 | Airflow: 1.41 m3/min | Static pressure: 22 Pa | SPL: 26 dB(A) | Feature: Low-speed sensor, ribs
9AD1201P4H001Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: PWM, pulse sensor, ribs
9AD1201H40021Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: No sensor, no ribs (option)
9AD1201H4H0011Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD1201P4H0011Speed: 3000 min-1 | Airflow: 2.35 m3/min | Static pressure: 62 Pa | SPL: 40 dB(A) | Feature: PWM, pulse sensor, no ribs (option)
9AD1201M40021Speed: 2250 min-1 | Airflow: 1.76 m3/min | Static pressure: 35 Pa | SPL: 34 dB(A) | Feature: No sensor, no ribs (option)
9AD1201M4H0011Speed: 2250 min-1 | Airflow: 1.76 m3/min | Static pressure: 35 Pa | SPL: 34 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD1201L40021Speed: 1800 min-1 | Airflow: 1.41 m3/min | Static pressure: 22 Pa | SPL: 26 dB(A) | Feature: No sensor, no ribs (option)
9AD1201L4H0011Speed: 1800 min-1 | Airflow: 1.41 m3/min | Static pressure: 22 Pa | SPL: 26 dB(A) | Feature: Low-speed sensor, no ribs (option)
