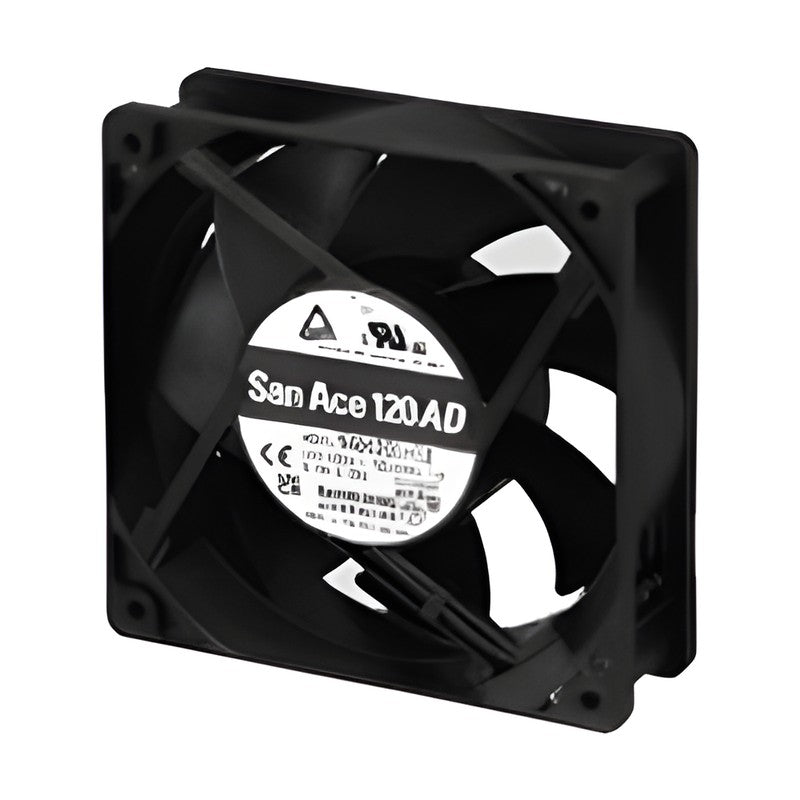

Sanyo Denki San Ace 120AD 9AD ACDC Fan (120x120x38 mm)

Sanyo Denki San Ace 120AD 9AD ACDC Fan (120x120x38 mm)

San Ace 120AD 9AD ACDC fan, 120x120x38 mm, running on AC input with an internal AC-DC converter for DC-fan performance.

Key features

  • AC input (internally converted to DC) with high efficiency of a DC fan
  • Rated voltage 100 to 240 VAC; 2 model(s) in the catalogue specification table
  • Max. airflow up to 3 m3/min, max. static pressure up to 84 Pa
  • Motor protection: locked rotor burnout protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 120x120x38 mm
Fan type ACDC axial fan (AC input)
Voltage 100 to 240 VAC
Static pressure 84 Pa
SPL 42 dB(A)
Frequency 50/60 Hz
Operating voltage range 90 to 264 VAC
Operating temperature -20 to +75 °C
Expected life (L10) 60000 h at 60 °C
Mass 290 g
Material Frame: Plastic (UL 94V-0), Impeller: Plastic (UL 94V-1)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 510-512; Model Index p. 664-665
9AD1201H12 Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: No sensor, ribs
9AD1201H1H Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: Low-speed sensor, ribs
9AD1201H121 Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: No sensor, no ribs (option)
9AD1201H1H1 Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: Low-speed sensor, no ribs (option)
ST1-9AD1201H12 Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: Set: fan, guard, cord, screws
ST1-9AD1201H1H Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: Set: fan, guard, cord, screws
ACDC FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120AD 9AD ACDC Fan (120x120x38 mm)

Brand Sanyo Denki·ACDC Fans

Available part numbers (6)

9AD1201H12, 9AD1201H1H, 9AD1201H121, 9AD1201H1H1, ST1-9AD1201H12, ST1-9AD1201H1H

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9AD1201H12Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: No sensor, ribs
9AD1201H1HSpeed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: Low-speed sensor, ribs
9AD1201H121Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: No sensor, no ribs (option)
9AD1201H1H1Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: Low-speed sensor, no ribs (option)
ST1-9AD1201H12Speed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: Set: fan, guard, cord, screws
ST1-9AD1201H1HSpeed: 3250 min-1 | Airflow: 3.0 m3/min | Feature: Set: fan, guard, cord, screws
