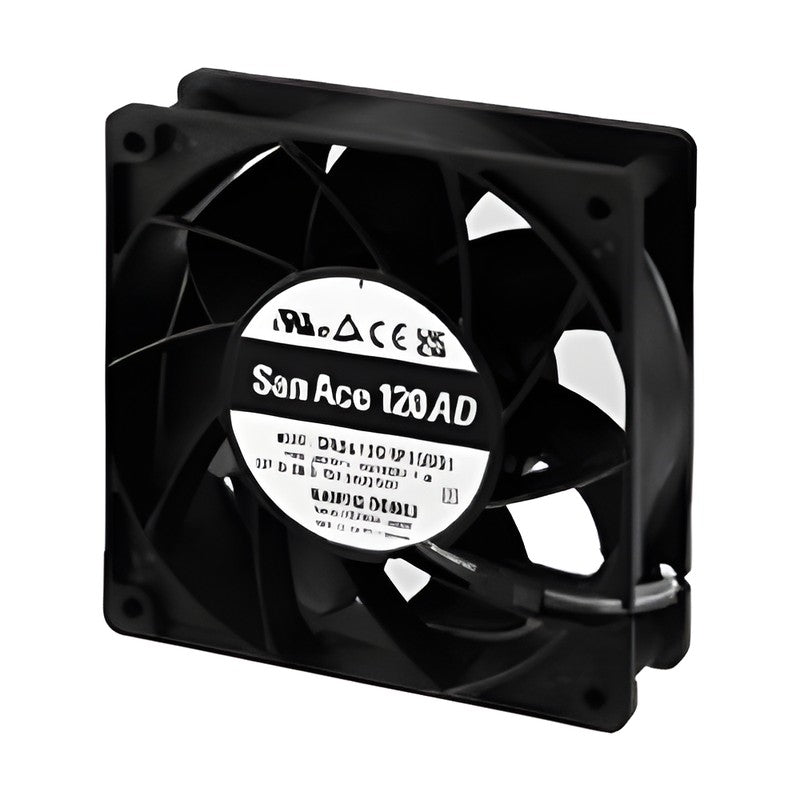

Sanyo Denki San Ace 120AD 9ADA ACDC Fan (120x120x38 mm)

Sanyo Denki San Ace 120AD 9ADA ACDC Fan (120x120x38 mm)

San Ace 120AD 9ADA ACDC fan, 120x120x38 mm, running on AC input with an internal AC-DC converter for DC-fan performance.

Key features

  • AC input (internally converted to DC) with high efficiency of a DC fan
  • Rated voltage 100 to 240 VAC; 4 model(s) in the catalogue specification table
  • Max. airflow up to 3.9 m3/min, max. static pressure up to 170 Pa
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 120x120x38 mm
Fan type ACDC axial fan (AC input)
Voltage 100 to 240 VAC
Frequency 50/60 Hz
Operating voltage range 90 to 264 VAC
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h or 60000 h at 60 °C (by model)
Mass 340 g
Material Frame: Plastic (UL 94V-0), Impeller: Plastic (UL 94V-0)
Motor protection Locked rotor burnout protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 504-506; Model Index p. 664-665
9ADA1201G1002 Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: No sensor, ribs
9ADA1201H1002 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Static pressure: 128 Pa | SPL: 48 dB(A) | Feature: No sensor, ribs
9ADA1201G1H001 Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: Low-speed sensor, ribs
9ADA1201P1G001 Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: PWM, pulse sensor, ribs
9ADA1201G10021 Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: No sensor, no ribs (option)
9ADA1201G1H0011 Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: Low-speed sensor, no ribs (option)
9ADA1201H1H001 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Static pressure: 128 Pa | SPL: 48 dB(A) | Feature: Low-speed sensor, ribs (option)
9ADA1201H10021 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Static pressure: 128 Pa | SPL: 48 dB(A) | Feature: No sensor, no ribs (option)
9ADA1201H1H0011 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Static pressure: 128 Pa | SPL: 48 dB(A) | Feature: Low-speed sensor, no ribs (option)
9ADA1201P1G0011 Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: PWM, pulse sensor, no ribs (option)
ACDC FansSanyo Denki
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120AD 9ADA ACDC Fan (120x120x38 mm)

Brand Sanyo Denki·ACDC Fans

Available part numbers (10)

9ADA1201G1002, 9ADA1201H1002, 9ADA1201G1H001, 9ADA1201P1G001, 9ADA1201G10021, 9ADA1201G1H0011, 9ADA1201H1H001, 9ADA1201H10021, 9ADA1201H1H0011, 9ADA1201P1G0011

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9ADA1201G1002Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: No sensor, ribs
9ADA1201H1002Speed: 3800 min-1 | Airflow: 3.36 m3/min | Static pressure: 128 Pa | SPL: 48 dB(A) | Feature: No sensor, ribs
9ADA1201G1H001Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: Low-speed sensor, ribs
9ADA1201P1G001Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: PWM, pulse sensor, ribs
9ADA1201G10021Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: No sensor, no ribs (option)
9ADA1201G1H0011Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: Low-speed sensor, no ribs (option)
9ADA1201H1H001Speed: 3800 min-1 | Airflow: 3.36 m3/min | Static pressure: 128 Pa | SPL: 48 dB(A) | Feature: Low-speed sensor, ribs (option)
9ADA1201H10021Speed: 3800 min-1 | Airflow: 3.36 m3/min | Static pressure: 128 Pa | SPL: 48 dB(A) | Feature: No sensor, no ribs (option)
9ADA1201H1H0011Speed: 3800 min-1 | Airflow: 3.36 m3/min | Static pressure: 128 Pa | SPL: 48 dB(A) | Feature: Low-speed sensor, no ribs (option)
9ADA1201P1G0011Speed: 4400 min-1 | Airflow: 3.9 m3/min | Static pressure: 170 Pa | SPL: 52 dB(A) | Feature: PWM, pulse sensor, no ribs (option)
