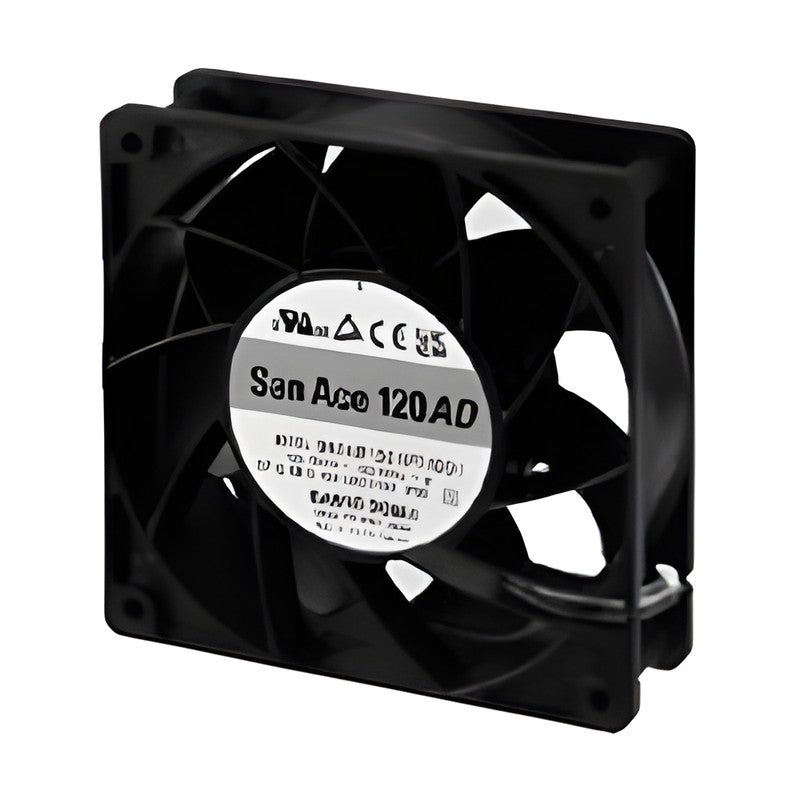

Sanyo Denki San Ace 120AD 9ADAW ACDC Fan (120x120x38 mm, IP68)

Sanyo Denki San Ace 120AD 9ADAW ACDC Fan (120x120x38 mm, IP68)

San Ace 120AD 9ADAW ACDC fan, 120x120x38 mm, IP68, running on AC input with an internal AC-DC converter for DC-fan performance.

Key features

  • AC input (internally converted to DC) with high efficiency of a DC fan
  • Rated voltage 100 to 240 VAC; 3 model(s) in the catalogue specification table
  • Max. airflow up to 3.36 m3/min, max. static pressure up to 128 Pa
  • IP68 ingress protection
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection

Specifications

Frame size 120x120x38 mm
Fan type ACDC axial fan (AC input)
Voltage 100 to 240 VAC
Static pressure 128 Pa
SPL 48 dB(A)
Frequency 50/60 Hz
Operating voltage range 90 to 264 VAC
Operating temperature -20 to +70 °C
Expected life (L10) 60000 h at 60 °C
Ingress protection IP68
Mass 420 g
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 507-509; Model Index p. 664-665
9ADAW1201H1002 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: No sensor, ribs
9ADAW1201H1H001 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: Low-speed sensor, ribs
9ADAW1201P1H001 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: PWM, pulse sensor, ribs
9ADAW1201H10021 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: No sensor, no ribs (option)
9ADAW1201H1H0011 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: Low-speed sensor, no ribs (option)
9ADAW1201P1H0011 Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: PWM, pulse sensor, no ribs (option)
ACDC FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120AD 9ADAW ACDC Fan (120x120x38 mm, IP68)

Brand Sanyo Denki·ACDC Fans

Available part numbers (6)

9ADAW1201H1002, 9ADAW1201H1H001, 9ADAW1201P1H001, 9ADAW1201H10021, 9ADAW1201H1H0011, 9ADAW1201P1H0011

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9ADAW1201H1002Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: No sensor, ribs
9ADAW1201H1H001Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: Low-speed sensor, ribs
9ADAW1201P1H001Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: PWM, pulse sensor, ribs
9ADAW1201H10021Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: No sensor, no ribs (option)
9ADAW1201H1H0011Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: Low-speed sensor, no ribs (option)
9ADAW1201P1H0011Speed: 3800 min-1 | Airflow: 3.36 m3/min | Feature: PWM, pulse sensor, no ribs (option)
