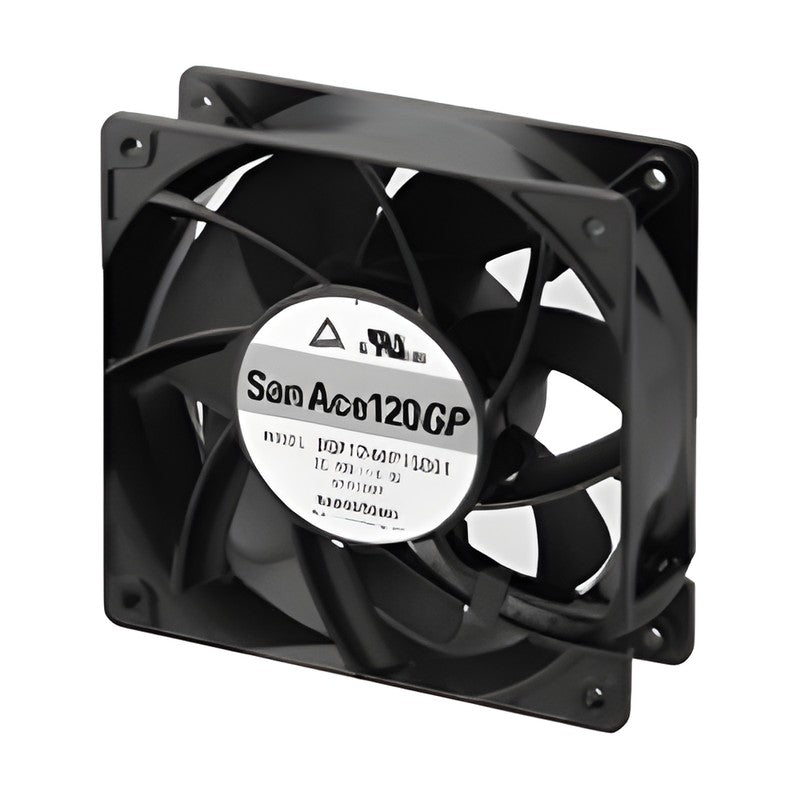

Sanyo Denki San Ace 120GP 9GP G Proof Fan (120x120x38 mm)

Sanyo Denki San Ace 120GP 9GP G Proof Fan (120x120x38 mm)

San Ace 120GP 9GP G proof DC fan, 120x120x38 mm, for CT scanners and other equipment subject to high G-force or vibration.

Key features

  • Designed for high G-force and vibration applications such as CT scanners
  • Rated voltage 24, 48 VDC; 2 model(s) in the catalogue specification table
  • Max. airflow up to 7 m3/min, max. static pressure up to 370 Pa
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection, reverse polarity protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 120x120x38 mm
Fan type DC axial fan, G proof
Airflow 7.0 m3/min
Static pressure 370 Pa
SPL 62 dB(A)
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Mass 440 g
Material Frame: Aluminum (Black coating), Impeller: Plastic (UL 94V-1)
Motor protection Locked rotor burnout protection, Reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 488-489; Model Index p. 651
9GP1224P1G001 Voltage: 24 VDC | Speed: 6550 min-1 | Feature: PWM, pulse sensor
9GP1248P1G001 Voltage: 48 VDC | Speed: 6550 min-1 | Feature: PWM, pulse sensor
9GP1224G1002 Voltage: 24 VDC | Speed: 6550 min-1 | Feature: No sensor (option)
DC Axial FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120GP 9GP G Proof Fan (120x120x38 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (3)

9GP1224P1G001, 9GP1248P1G001, 9GP1224G1002

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GP1224P1G001Voltage: 24 VDC | Speed: 6550 min-1 | Feature: PWM, pulse sensor
9GP1248P1G001Voltage: 48 VDC | Speed: 6550 min-1 | Feature: PWM, pulse sensor
9GP1224G1002Voltage: 24 VDC | Speed: 6550 min-1 | Feature: No sensor (option)
