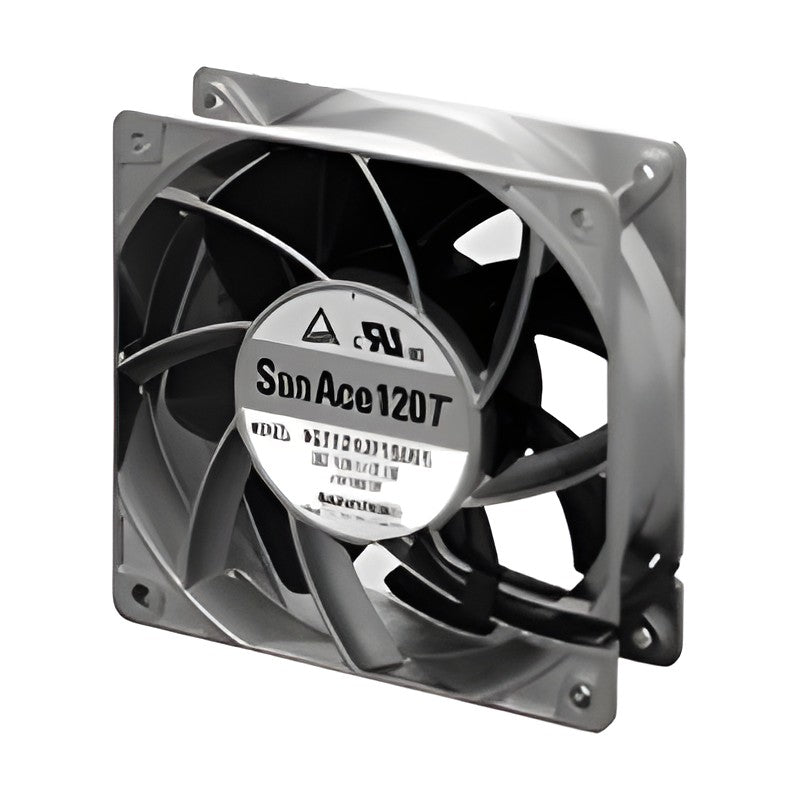

Sanyo Denki San Ace 120T 9GT Wide Temp Fan (120x120x38 mm)

Sanyo Denki San Ace 120T 9GT Wide Temp Fan (120x120x38 mm)

San Ace 120T 9GT wide temperature range DC fan, 120x120x38 mm, rated for operation from -40 to +85 °C.

Key features

  • Wide operating temperature range of -40 to +85 °C; aluminum frame
  • Rated voltage 12, 24 VDC; 2 model(s) in the catalogue specification table
  • Max. airflow up to 6 m3/min, max. static pressure up to 270 Pa
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection, reverse polarity protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 120x120x38 mm
Fan type DC axial fan, -40 to +85 °C
Airflow 6.0 m3/min
Static pressure 270 Pa
SPL 58 dB(A)
Operating temperature -40 to +85 °C
Expected life (L10) 40000 h at 85 °C
Mass 420 g
Material Frame: Aluminum, Impeller: Plastic (UL 94V-1)
Motor protection Locked rotor burnout protection, Reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 484-485; Model Index p. 651
9GT1212P1S001 Voltage: 12 VDC | Speed: 5600 min-1 | Feature: PWM, pulse sensor
9GT1224P1S001 Voltage: 24 VDC | Speed: 5600 min-1 | Feature: PWM, pulse sensor
9GT1212S1002 Voltage: 12 VDC | Speed: 5600 min-1 | Feature: No sensor (option)
9GT1224S1002 Voltage: 24 VDC | Speed: 5600 min-1 | Feature: No sensor (option)
9GT1224S1D001 Voltage: 24 VDC | Speed: 5600 min-1 | Feature: Lock sensor (option)
DC Axial FansSanyo Denki
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120T 9GT Wide Temp Fan (120x120x38 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (5)

9GT1212P1S001, 9GT1224P1S001, 9GT1212S1002, 9GT1224S1002, 9GT1224S1D001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GT1212P1S001Voltage: 12 VDC | Speed: 5600 min-1 | Feature: PWM, pulse sensor
9GT1224P1S001Voltage: 24 VDC | Speed: 5600 min-1 | Feature: PWM, pulse sensor
9GT1212S1002Voltage: 12 VDC | Speed: 5600 min-1 | Feature: No sensor (option)
9GT1224S1002Voltage: 24 VDC | Speed: 5600 min-1 | Feature: No sensor (option)
9GT1224S1D001Voltage: 24 VDC | Speed: 5600 min-1 | Feature: Lock sensor (option)
