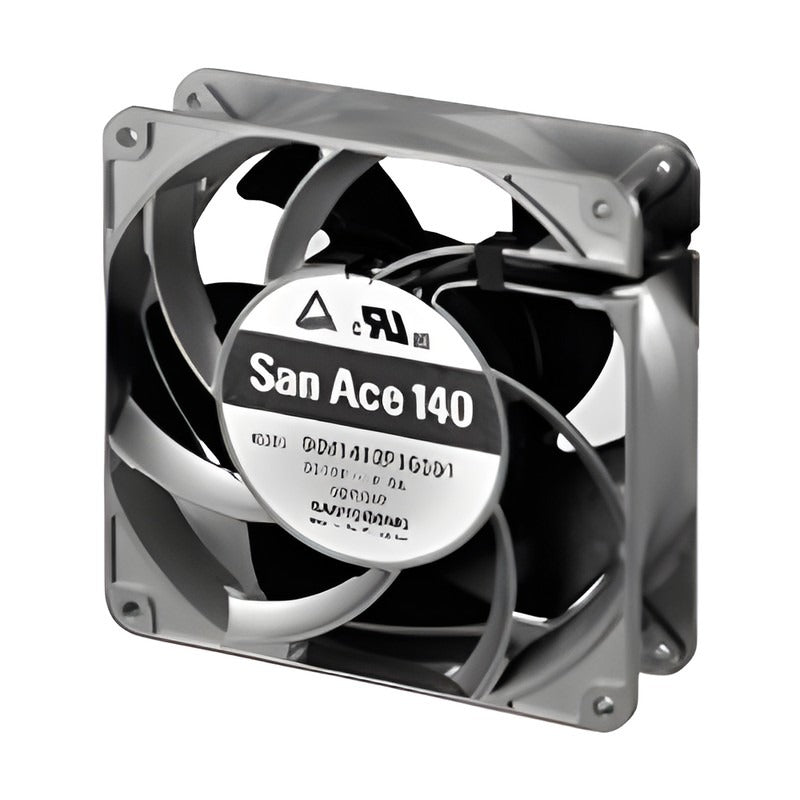

Sanyo Denki San Ace 140 9GV DC Fan 140x140x38 mm

Sanyo Denki San Ace 140 9GV DC Fan 140x140x38 mm

The San Ace 140 9GV is a 140x140x38 mm aluminum-frame high-performance DC fan with pulse sensor and PWM control.

Key features

  • Aluminum frame; mass 630 g
  • Printed model numbers for 12 V, 24 V, 48 V rated voltage
  • High airflow up to 8.8 m3/min and 640 Pa
  • Pulse sensor with PWM control (25 kHz)
  • Lock sensor, no-sensor, no-rib and PWM option models per Model Index
  • Locked rotor burnout protection and reverse polarity protection

Specifications

Size 140x140x38 mm
Series San Ace 140 9GV
Material Aluminum frame, plastic impeller (UL 94V-1)
Mass 630 g
Operating temp. -20 to +70 °C
Expected life 40000 h/60°C (70000 h/40°C)
Motor protection Locked rotor burnout, reverse polarity
Compatible options 109-719, 109-719H
Source Sanyo Denki San Ace General Catalog C1152B001, p. 185-188
9GV1412P1G001 Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 7600 min-1 (2300 at 20% PWM) | Airflow: 8.8 m3/min (310 CFM) | Static pressure: 640 Pa (2.57 inH2O) | Feature: Pulse sensor, PWM | SPL: 70 dB(A)
9GV1412P1S001 Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 6650 min-1 (2300 at 20% PWM) | Airflow: 7.7 m3/min (272 CFM) | Static pressure: 480 Pa (1.93 inH2O) | Feature: Pulse sensor, PWM | SPL: 67 dB(A)
9GV1412P1H001 Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 5200 min-1 (2300 at 20% PWM) | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM | SPL: 62 dB(A)
9GV1424P1G001 Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 7600 min-1 (2300 at 20% PWM) | Airflow: 8.8 m3/min (310 CFM) | Static pressure: 640 Pa (2.57 inH2O) | Feature: Pulse sensor, PWM | SPL: 70 dB(A)
9GV1424P1S001 Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 6650 min-1 (2300 at 20% PWM) | Airflow: 7.7 m3/min (272 CFM) | Static pressure: 480 Pa (1.93 inH2O) | Feature: Pulse sensor, PWM | SPL: 67 dB(A)
9GV1424P1H001 Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 5200 min-1 (2300 at 20% PWM) | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM | SPL: 62 dB(A)
9GV1448P1G001 Voltage: 48 VDC (36 to 60 V) | Speed: 7600 min-1 (2300 at 20% PWM) | Airflow: 8.8 m3/min (310 CFM) | Static pressure: 640 Pa (2.57 inH2O) | Feature: Pulse sensor, PWM | SPL: 70 dB(A)
9GV1448P1S001 Voltage: 48 VDC (36 to 60 V) | Speed: 6650 min-1 (2300 at 20% PWM) | Airflow: 7.7 m3/min (272 CFM) | Static pressure: 480 Pa (1.93 inH2O) | Feature: Pulse sensor, PWM | SPL: 67 dB(A)
9GV1448P1H001 Voltage: 48 VDC (36 to 60 V) | Speed: 5200 min-1 (2300 at 20% PWM) | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM | SPL: 62 dB(A)
9GV1412H1002 Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 5200 min-1 | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 62 dB(A)
9GV1424H1002 Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 5200 min-1 | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 62 dB(A)
9GV1424H1D001 Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 5200 min-1 | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Lock sensor (option) | SPL: 62 dB(A)
9GV1448H1002 Voltage: 48 VDC (36 to 60 V) | Speed: 5200 min-1 | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 62 dB(A)
DC Axial FansSanyo Denki
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 140 9GV DC Fan 140x140x38 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (13)

9GV1412P1G001, 9GV1412P1S001, 9GV1412P1H001, 9GV1424P1G001, 9GV1424P1S001, 9GV1424P1H001, 9GV1448P1G001, 9GV1448P1S001, 9GV1448P1H001, 9GV1412H1002 + 3 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GV1412P1G001Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 7600 min-1 (2300 at 20% PWM) | Airflow: 8.8 m3/min (310 CFM) | Static pressure: 640 Pa (2.57 inH2O) | Feature: Pulse sensor, PWM | SPL: 70 dB(A)
9GV1412P1S001Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 6650 min-1 (2300 at 20% PWM) | Airflow: 7.7 m3/min (272 CFM) | Static pressure: 480 Pa (1.93 inH2O) | Feature: Pulse sensor, PWM | SPL: 67 dB(A)
9GV1412P1H001Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 5200 min-1 (2300 at 20% PWM) | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM | SPL: 62 dB(A)
9GV1424P1G001Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 7600 min-1 (2300 at 20% PWM) | Airflow: 8.8 m3/min (310 CFM) | Static pressure: 640 Pa (2.57 inH2O) | Feature: Pulse sensor, PWM | SPL: 70 dB(A)
9GV1424P1S001Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 6650 min-1 (2300 at 20% PWM) | Airflow: 7.7 m3/min (272 CFM) | Static pressure: 480 Pa (1.93 inH2O) | Feature: Pulse sensor, PWM | SPL: 67 dB(A)
9GV1424P1H001Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 5200 min-1 (2300 at 20% PWM) | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM | SPL: 62 dB(A)
9GV1448P1G001Voltage: 48 VDC (36 to 60 V) | Speed: 7600 min-1 (2300 at 20% PWM) | Airflow: 8.8 m3/min (310 CFM) | Static pressure: 640 Pa (2.57 inH2O) | Feature: Pulse sensor, PWM | SPL: 70 dB(A)
9GV1448P1S001Voltage: 48 VDC (36 to 60 V) | Speed: 6650 min-1 (2300 at 20% PWM) | Airflow: 7.7 m3/min (272 CFM) | Static pressure: 480 Pa (1.93 inH2O) | Feature: Pulse sensor, PWM | SPL: 67 dB(A)
9GV1448P1H001Voltage: 48 VDC (36 to 60 V) | Speed: 5200 min-1 (2300 at 20% PWM) | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM | SPL: 62 dB(A)
9GV1412H1002Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 5200 min-1 | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 62 dB(A)
9GV1424H1002Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 5200 min-1 | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 62 dB(A)
9GV1424H1D001Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 5200 min-1 | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Lock sensor (option) | SPL: 62 dB(A)
9GV1448H1002Voltage: 48 VDC (36 to 60 V) | Speed: 5200 min-1 | Airflow: 6.0 m3/min (212 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 62 dB(A)
