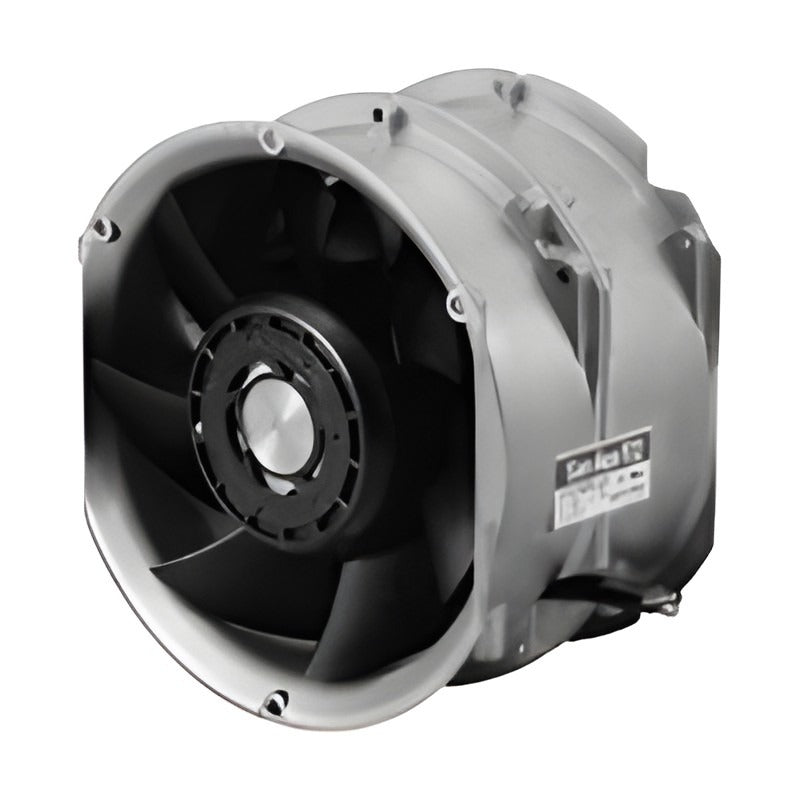

Sanyo Denki San Ace 172 9CR Counter Rotating Fan dia. 172x150x102 mm

Sanyo Denki San Ace 172 9CR Counter Rotating Fan dia. 172x150x102 mm

The San Ace 172 9CR type is a dia. 172x150x102 mm DC counter rotating fan that pairs two contra-rotating impellers for high airflow and high static pressure.

Key features

  • Round frame with side cuts (172x150 mm)
  • Up to 18 m3/min max. airflow and 1400 Pa max. static pressure
  • Rated voltage 48 VDC (1 catalogue model)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size dia. 172x150x102 mm
Series / type San Ace 172 9CR type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 48 VDC
Mass 1600 g
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 248-249
9CR5748P9G001 Voltage: 48 VDC (36 to 72 V) | Speed (inlet/outlet): 7300 / 6400 min-1 | Airflow: 18 m3/min (636 CFM) | Static pressure: 1400 Pa (5.62 inH2O) | SPL: 83 dB(A) | Current / input: 5.5 A / 264 W
DC Counter Rotating FansSanyo Denki
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 172 9CR Counter Rotating Fan dia. 172x150x102 mm

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (1)

9CR5748P9G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CR5748P9G001Voltage: 48 VDC (36 to 72 V) | Speed (inlet/outlet): 7300 / 6400 min-1 | Airflow: 18 m3/min (636 CFM) | Static pressure: 1400 Pa (5.62 inH2O) | SPL: 83 dB(A) | Current / input: 5.5 A / 264 W
