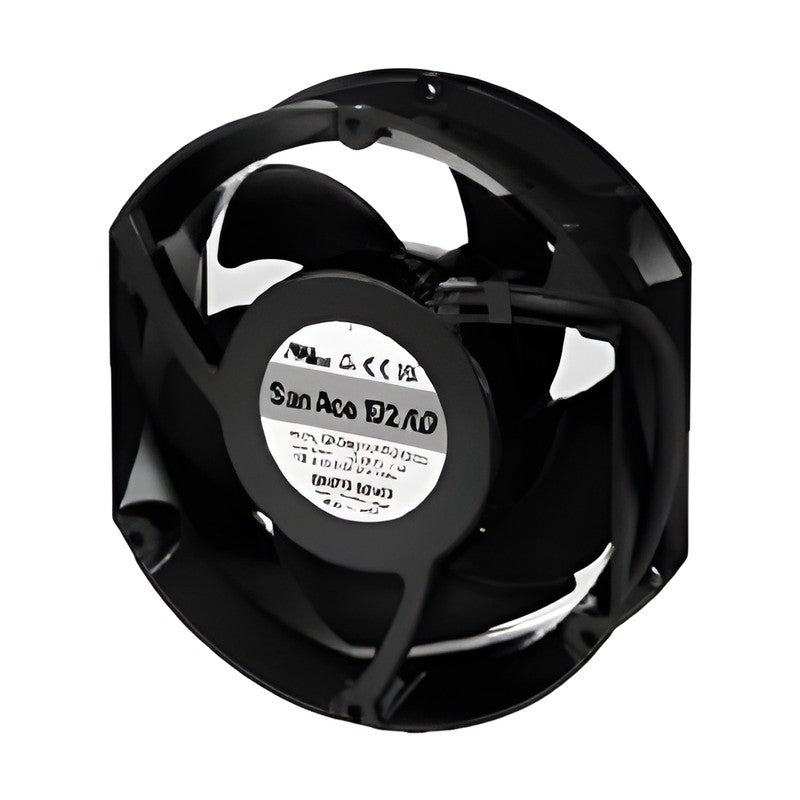

Sanyo Denki San Ace 172AD 9ADW ACDC Fan (ø172x150x51 mm, IP56)

Sanyo Denki San Ace 172AD 9ADW ACDC Fan (ø172x150x51 mm, IP56)

San Ace 172AD 9ADW ACDC fan, ø172x150x51 mm, IP56, running on AC input with an internal AC-DC converter for DC-fan performance.

Key features

  • AC input (internally converted to DC) with high efficiency of a DC fan
  • Rated voltage 100 to 240 VAC; 6 model(s) in the catalogue specification table
  • Max. airflow up to 6.7 m3/min, max. static pressure up to 195 Pa
  • IP56 ingress protection
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection

Specifications

Frame size ø172x150x51 mm
Frame form Sidecut
Fan type ACDC axial fan (AC input)
Voltage 100 to 240 VAC
Static pressure 195 Pa
SPL 54 dB(A)
Frequency 50/60 Hz
Operating voltage range 90 to 264 VAC
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Ingress protection IP56 (Excluding the connectors of terminal models)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 522-524; Model Index p. 664-665
9ADW5701H5002 Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: No sensor, lead wire
9ADW5701H5T02 Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: No sensor, terminal
9ADW5701H5H001 Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: Low-speed sensor, lead wire
9ADW5701H5HT01 Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: Low-speed sensor, terminal
9ADW5701P5H003 Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: PWM, pulse sensor, lead wire
9ADW5701P5HT03 Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: PWM, pulse sensor, terminal
ACDC FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 172AD 9ADW ACDC Fan (ø172x150x51 mm, IP56)

Brand Sanyo Denki·ACDC Fans

Available part numbers (6)

9ADW5701H5002, 9ADW5701H5T02, 9ADW5701H5H001, 9ADW5701H5HT01, 9ADW5701P5H003, 9ADW5701P5HT03

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9ADW5701H5002Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: No sensor, lead wire
9ADW5701H5T02Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: No sensor, terminal
9ADW5701H5H001Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: Low-speed sensor, lead wire
9ADW5701H5HT01Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: Low-speed sensor, terminal
9ADW5701P5H003Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: PWM, pulse sensor, lead wire
9ADW5701P5HT03Speed: 3800 min-1 | Airflow: 6.7 m3/min | Feature: PWM, pulse sensor, terminal
