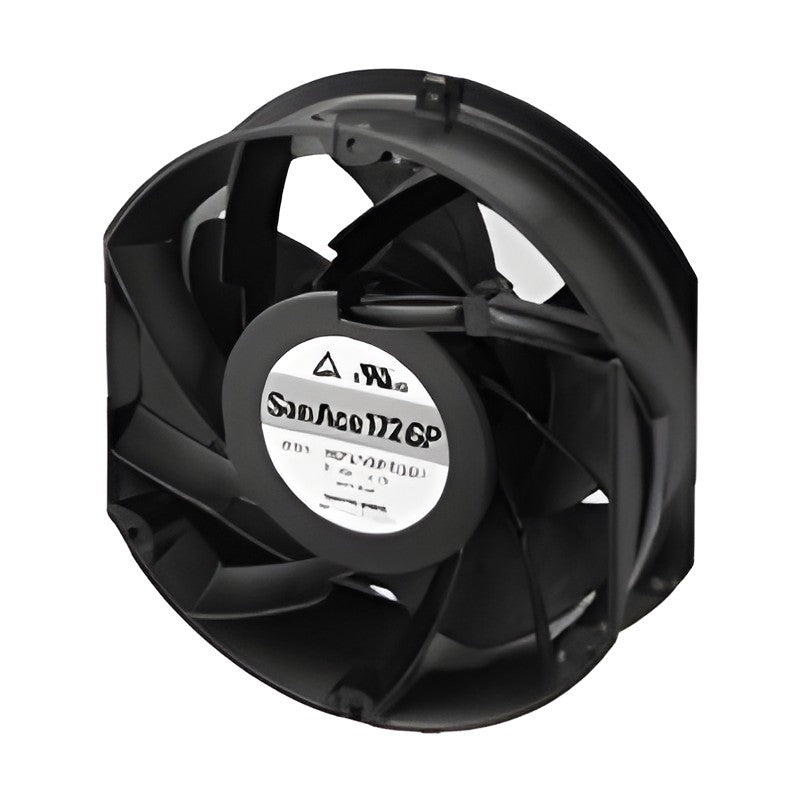

Sanyo Denki San Ace 172GP 9GP G Proof Fan (ø172x150x51 mm, sidecut)

Sanyo Denki San Ace 172GP 9GP G Proof Fan (ø172x150x51 mm, sidecut)

San Ace 172GP 9GP G proof DC fan, ø172x150x51 mm, for CT scanners and other equipment subject to high G-force or vibration.

Key features

  • Designed for high G-force and vibration applications such as CT scanners
  • Rated voltage 24, 48 VDC; 2 model(s) in the catalogue specification table
  • Max. airflow up to 16.1 m3/min, max. static pressure up to 1600 Pa
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection, reverse polarity protection

Specifications

Frame size ø172x150x51 mm
Frame form Sidecut
Fan type DC axial fan, G proof
Feature PWM, pulse sensor
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Mass 880 g
Material Frame: Aluminum (Black coating), Impeller: Plastic (UL 94V-1)
Motor protection Locked rotor burnout protection, Reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 490-491; Model Index p. 651
9GP5724P5H001 Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 12.3 m3/min | Static pressure: 1000 Pa | SPL: 77 dB(A)
9GP5748P5G001 Voltage: 48 VDC | Speed: 10500 min-1 | Airflow: 16.1 m3/min | Static pressure: 1600 Pa | SPL: 83 dB(A)
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 172GP 9GP G Proof Fan (ø172x150x51 mm, sidecut)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9GP5724P5H001, 9GP5748P5G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GP5724P5H001Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 12.3 m3/min | Static pressure: 1000 Pa | SPL: 77 dB(A)
9GP5748P5G001Voltage: 48 VDC | Speed: 10500 min-1 | Airflow: 16.1 m3/min | Static pressure: 1600 Pa | SPL: 83 dB(A)
