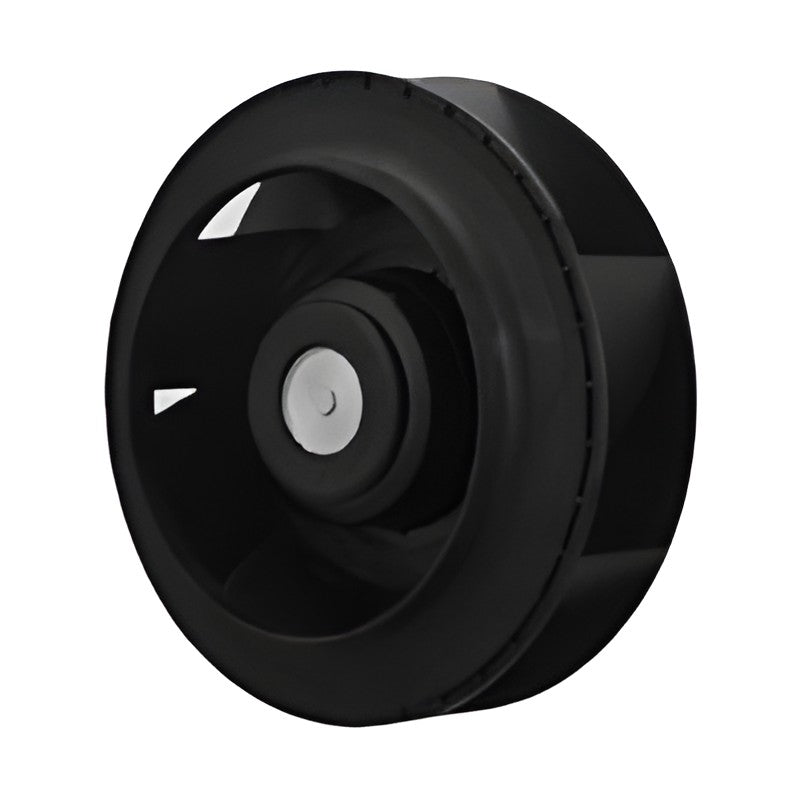

Sanyo Denki San Ace 190AD 9ADTU ACDC Centrifugal Fan (ø190x88 mm)

San Ace 190AD 9ADTU ACDC centrifugal fan, ø190x88 mm, combining AC input with DC-fan efficiency and PWM speed control.

Key features

AC input (internally converted to DC) with high efficiency of a DC fan
Rated voltage 115, 230 VAC; 2 model(s) in the catalogue specification table
Max. airflow up to 16.5 m3/min, max. static pressure up to 1200 Pa
PWM speed control with pulse sensor output available
Motor protection: locked rotor burnout protection

Specifications

Frame size	ø190x88 mm
Fan type	ACDC centrifugal fan (AC input)
Static pressure	1200 Pa
SPL	72 dB(A)
Feature	PWM, pulse sensor
Frequency	50/60 Hz
Operating temperature	-25 to +60 °C
Expected life (L10)	40000 h at 60 °C
Mass	1600 g
Material	Motor case: Aluminum (Black coating), Impeller: Plastic (UL 94V-0)
Motor protection	Locked rotor burnout protection
Source	Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 525-527; Model Index p. 665

9ADTU11P0G001		Voltage: 115 VAC \| Speed: 4800 min-1 \| Airflow: 16.5 m3/min
9ADTU23P0G001		Voltage: 230 VAC \| Speed: 4800 min-1 \| Airflow: 16.5 m3/min

ACDC FansSanyo Denki

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 190AD 9ADTU ACDC Centrifugal Fan (ø190x88 mm)

Brand Sanyo Denki·ACDC Fans

Available part numbers (2)

9ADTU11P0G001, 9ADTU23P0G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
