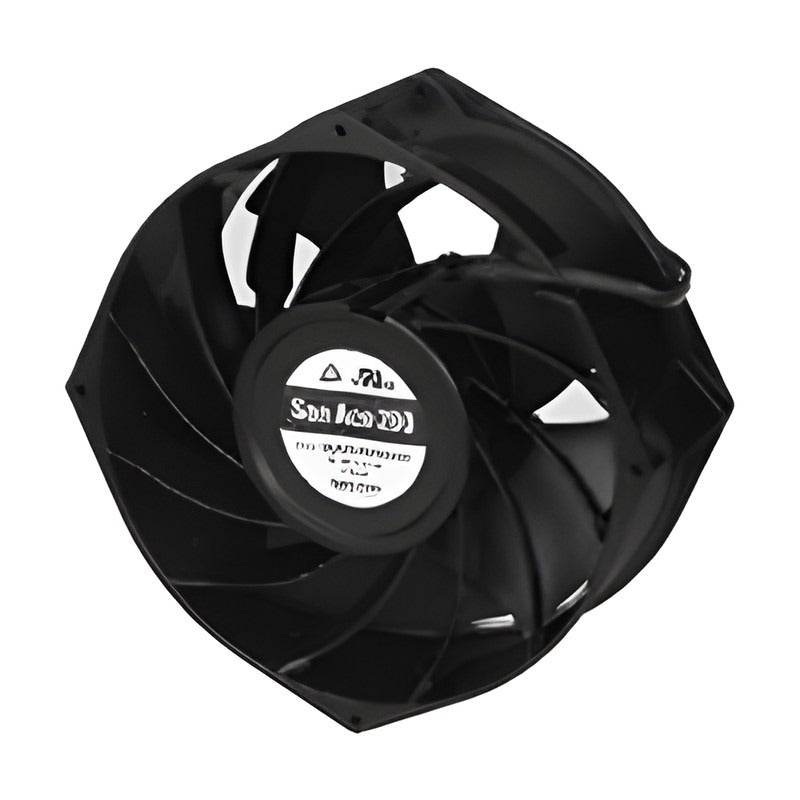

Sanyo Denki San Ace 200 9GA DC Fan dia. 200x70 mm (Low Power)

Sanyo Denki San Ace 200 9GA DC Fan dia. 200x70 mm (Low Power)

The San Ace 200 9GA is a dia. 200x70 mm low power consumption DC fan with pulse sensor and PWM control for high-airflow cooling.

Key features

  • Aluminum frame (black coating); mass 1500 g
  • Printed model numbers for 48 V rated voltage
  • Low power consumption fan: 7800 min-1, 30.7 m3/min, 1350 Pa
  • Pulse sensor with PWM control (25 kHz); start at 100% duty
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible options: 109-1102, 109-1102H

Specifications

Size dia. 200x70 mm
Series San Ace 200 9GA
Material Aluminum frame (black coating), plastic impeller (UL 94V-1)
Mass 1500 g
Feature Pulse sensor, PWM
Operating temp. -20 to +70 °C
Expected life 40000 h/60°C (70000 h/40°C)
Motor protection Locked rotor burnout, reverse polarity
Compatible options 109-1102, 109-1102H
Source Sanyo Denki San Ace General Catalog C1152B001, p. 209-210
9GA2048P0G001 Voltage: 48 VDC (36 to 60 V) | Speed: 7800 min-1 (2000 at 20% PWM) | Airflow: 30.7 m3/min (1084 CFM) | Static pressure: 1350 Pa (5.40 inH2O) | SPL: 81 dB(A)
9GV2048P0G201 Legacy code (deleted model, catalogue p. 670) | Size: dia. 200x70 mm | Frame: Aluminum | Voltage: 48 VDC | Speed: 8000 min-1 | Airflow: 31.5 m3/min | Static pressure: 1400 Pa
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 200 9GA DC Fan dia. 200x70 mm (Low Power)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9GA2048P0G001, 9GV2048P0G201

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA2048P0G001Voltage: 48 VDC (36 to 60 V) | Speed: 7800 min-1 (2000 at 20% PWM) | Airflow: 30.7 m3/min (1084 CFM) | Static pressure: 1350 Pa (5.40 inH2O) | SPL: 81 dB(A)
9GV2048P0G201Legacy code (deleted model, catalogue p. 670) | Size: dia. 200x70 mm | Frame: Aluminum | Voltage: 48 VDC | Speed: 8000 min-1 | Airflow: 31.5 m3/min | Static pressure: 1400 Pa
