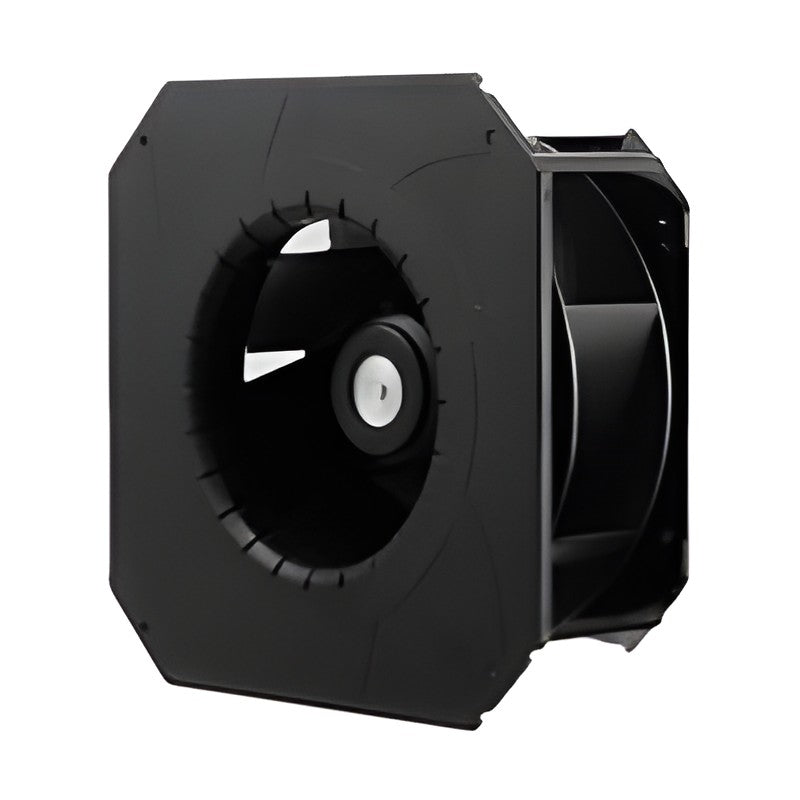

Sanyo Denki San Ace 225AD 9ADB1TS Bracket ACDC Fan (270x270x119 mm)

Sanyo Denki San Ace 225AD 9ADB1TS Bracket ACDC Fan (270x270x119 mm)

San Ace 225AD 9ADB1TS bracket-mounted ACDC centrifugal fan, 270x270x119 mm, supplied on a mounting bracket for direct panel installation.

Key features

  • AC input (internally converted to DC) with high efficiency of a DC fan
  • Rated voltage 115, 230 VAC; 4 model(s) in the catalogue specification table
  • Max. airflow up to 23 m3/min, max. static pressure up to 815 Pa
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection

Specifications

Frame size 270x270x119 mm
Fan type Bracket-mounted ACDC centrifugal
Feature PWM, pulse sensor
Frequency 50/60 Hz
Operating temperature -20 to +60 °C
Expected life (L10) 40000 h at 60 °C
Mass 2500 g
Material Motor case: Aluminum (Black coating), Impeller: Plastic (UL 94V-0)
Motor protection Locked rotor burnout protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 543-545; Model Index p. 665
9ADB1TS11P0G001 Voltage: 115 VAC | Speed: 3200 min-1 | Airflow: 23.0 m3/min | Static pressure: 815 Pa | SPL: 74 dB(A)
9ADB1TS11P0F001 Voltage: 115 VAC | Speed: 2450 min-1 | Airflow: 17.6 m3/min | Static pressure: 480 Pa | SPL: 68 dB(A)
9ADB1TS23P0G001 Voltage: 230 VAC | Speed: 3200 min-1 | Airflow: 23.0 m3/min | Static pressure: 815 Pa | SPL: 74 dB(A)
9ADB1TS23P0F001 Voltage: 230 VAC | Speed: 2450 min-1 | Airflow: 17.6 m3/min | Static pressure: 480 Pa | SPL: 68 dB(A)
ACDC FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 225AD 9ADB1TS Bracket ACDC Fan (270x270x119 mm)

Brand Sanyo Denki·ACDC Fans

Available part numbers (4)

9ADB1TS11P0G001, 9ADB1TS11P0F001, 9ADB1TS23P0G001, 9ADB1TS23P0F001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9ADB1TS11P0G001Voltage: 115 VAC | Speed: 3200 min-1 | Airflow: 23.0 m3/min | Static pressure: 815 Pa | SPL: 74 dB(A)
9ADB1TS11P0F001Voltage: 115 VAC | Speed: 2450 min-1 | Airflow: 17.6 m3/min | Static pressure: 480 Pa | SPL: 68 dB(A)
9ADB1TS23P0G001Voltage: 230 VAC | Speed: 3200 min-1 | Airflow: 23.0 m3/min | Static pressure: 815 Pa | SPL: 74 dB(A)
9ADB1TS23P0F001Voltage: 230 VAC | Speed: 2450 min-1 | Airflow: 17.6 m3/min | Static pressure: 480 Pa | SPL: 68 dB(A)
