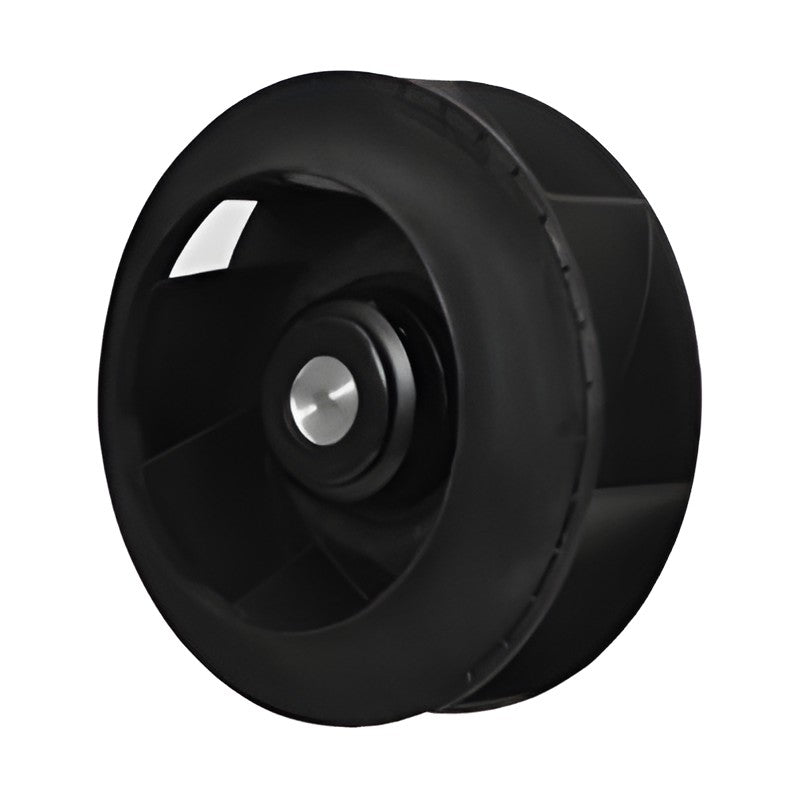

Sanyo Denki San Ace 225AD 9ADW1TS ACDC Fan (ø225x99 mm, IP56)

Sanyo Denki San Ace 225AD 9ADW1TS ACDC Fan (ø225x99 mm, IP56)

San Ace 225AD 9ADW1TS ACDC centrifugal fan, ø225x99 mm, IP56, combining AC input with DC-fan efficiency and PWM speed control.

Key features

  • AC input (internally converted to DC) with high efficiency of a DC fan
  • Rated voltage 115, 230 VAC; 4 model(s) in the catalogue specification table
  • Max. airflow up to 22.3 m3/min, max. static pressure up to 760 Pa
  • IP56 ingress protection
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection

Specifications

Frame size ø225x99 mm
Fan type ACDC centrifugal fan (AC input)
Feature PWM, pulse sensor
Frequency 50/60 Hz
Operating temperature -20 to +60 °C
Expected life (L10) 40000 h at 60 °C
Ingress protection IP56
Mass 1900 g
Material Motor case: Aluminum (Black coating), Impeller: Plastic (UL 94V-0)
Motor protection Locked rotor burnout protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 534-536; Model Index p. 665
9ADW1TS11P0H001 Voltage: 115 VAC | Speed: 3100 min-1 | Airflow: 22.3 m3/min | Static pressure: 760 Pa | SPL: 73 dB(A)
9ADW1TS11P0M001 Voltage: 115 VAC | Speed: 2350 min-1 | Airflow: 16.9 m3/min | Static pressure: 440 Pa | SPL: 67 dB(A)
9ADW1TS23P0H001 Voltage: 230 VAC | Speed: 3100 min-1 | Airflow: 22.3 m3/min | Static pressure: 760 Pa | SPL: 73 dB(A)
9ADW1TS23P0M001 Voltage: 230 VAC | Speed: 2350 min-1 | Airflow: 16.9 m3/min | Static pressure: 440 Pa | SPL: 67 dB(A)
ACDC FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 225AD 9ADW1TS ACDC Fan (ø225x99 mm, IP56)

Brand Sanyo Denki·ACDC Fans

Available part numbers (4)

9ADW1TS11P0H001, 9ADW1TS11P0M001, 9ADW1TS23P0H001, 9ADW1TS23P0M001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9ADW1TS11P0H001Voltage: 115 VAC | Speed: 3100 min-1 | Airflow: 22.3 m3/min | Static pressure: 760 Pa | SPL: 73 dB(A)
9ADW1TS11P0M001Voltage: 115 VAC | Speed: 2350 min-1 | Airflow: 16.9 m3/min | Static pressure: 440 Pa | SPL: 67 dB(A)
9ADW1TS23P0H001Voltage: 230 VAC | Speed: 3100 min-1 | Airflow: 22.3 m3/min | Static pressure: 760 Pa | SPL: 73 dB(A)
9ADW1TS23P0M001Voltage: 230 VAC | Speed: 2350 min-1 | Airflow: 16.9 m3/min | Static pressure: 440 Pa | SPL: 67 dB(A)
