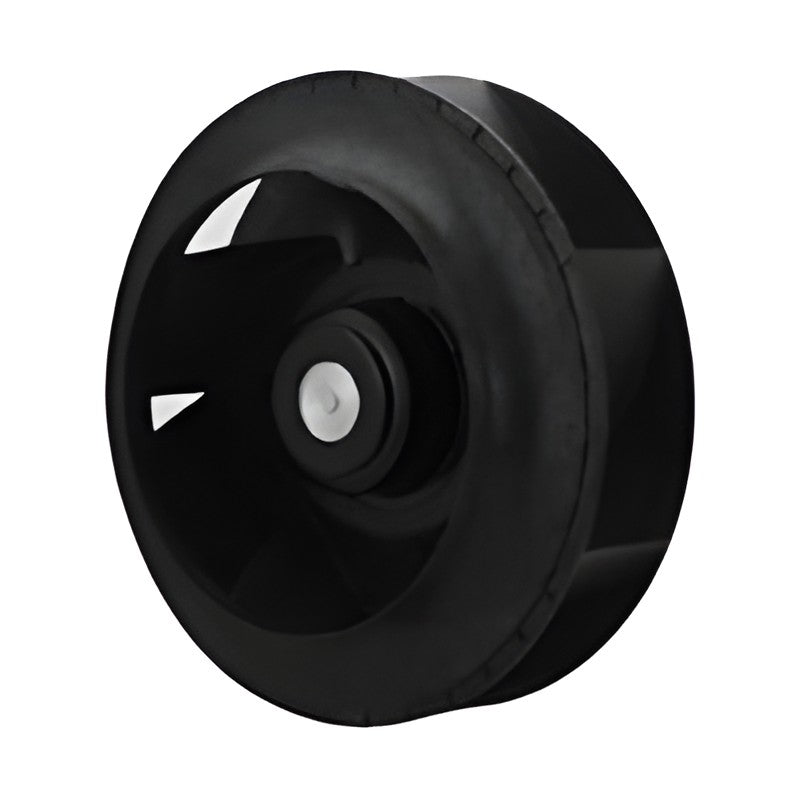

Sanyo Denki San Ace 250AD 9ADW1TV ACDC Fan (ø250x99 mm, IP56)

San Ace 250AD 9ADW1TV ACDC centrifugal fan, ø250x99 mm, IP56, combining AC input with DC-fan efficiency and PWM speed control.

Key features

AC input (internally converted to DC) with high efficiency of a DC fan
Rated voltage 115, 230 VAC; 2 model(s) in the catalogue specification table
Max. airflow up to 26.5 m3/min, max. static pressure up to 650 Pa
IP56 ingress protection
PWM speed control with pulse sensor output available
Motor protection: locked rotor burnout protection

Specifications

Frame size	ø250x99 mm
Fan type	ACDC centrifugal fan (AC input)
Static pressure	650 Pa
SPL	71 dB(A)
Feature	PWM, pulse sensor
Frequency	50/60 Hz
Operating temperature	-25 to +60 °C
Expected life (L10)	40000 h at 60 °C
Ingress protection	IP56
Mass	2020 g
Material	Motor case: Aluminum (Black coating), Impeller: Plastic (UL 94V-0)
Source	Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 540-542; Model Index p. 665

9ADW1TV11P0G001		Voltage: 115 VAC \| Speed: 2700 min-1 \| Airflow: 26.5 m3/min
9ADW1TV23P0G001		Voltage: 230 VAC \| Speed: 2700 min-1 \| Airflow: 26.5 m3/min

ACDC FansSanyo Denki

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 250AD 9ADW1TV ACDC Fan (ø250x99 mm, IP56)

Brand Sanyo Denki·ACDC Fans

Available part numbers (2)

9ADW1TV11P0G001, 9ADW1TV23P0G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
