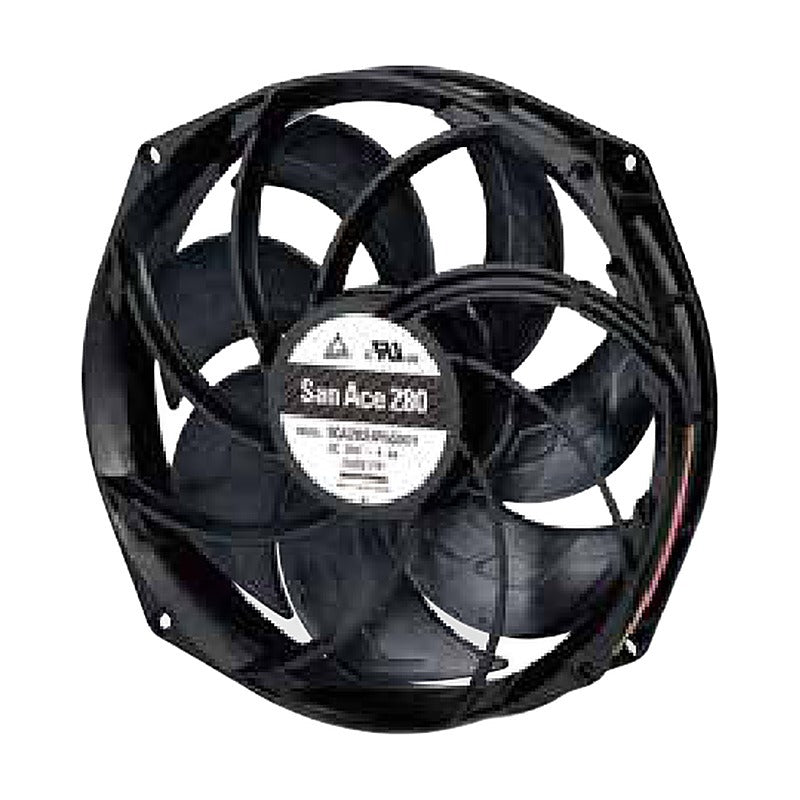

Sanyo Denki San Ace 280 9GA DC Fan dia. 280x50 mm

Sanyo Denki San Ace 280 9GA DC Fan dia. 280x50 mm

The San Ace 280 9GA is a dia. 280x50 mm low power consumption DC fan with pulse sensor and PWM control, rated for -40 to +70 °C.

Key features

  • Aluminum frame (black coating); mass 1850 g
  • Printed model numbers for 24 V, 48 V rated voltage
  • About 12% lower power than four 9WE5724K501 fans in parallel (24 V model)
  • Wide operating temperature range -40 to +70 °C for freezers and showcases
  • Pulse sensor with PWM control (25 kHz); RoHS, Eco Product Plus
  • Locked rotor burnout protection and reverse polarity protection

Specifications

Size dia. 280x50 mm
Series San Ace 280 9GA
Material Aluminum frame (black coating), plastic impeller (UL 94V-0)
Mass 1850 g
Feature Pulse sensor, PWM
Operating temp. -40 to +70 °C
Expected life 40000 h/60°C (70000 h/40°C)
Motor protection Locked rotor burnout, reverse polarity
Compatible options 109-1160H, 109-1161H
Source Sanyo Denki San Ace 280 9GA type leaflet C1157B002, p. 1-4
9GA2824P5G001 Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 3400 min-1 (1200 at 20% PWM) | Airflow: 29.0 m3/min (1024 CFM) | Static pressure: 350 Pa (1.40 inH2O) | Current: 4.6 A / 110 W
9GA2848P5G001 Voltage: 48 VDC (43.2 to 52.8 V) | Speed: 3400 min-1 (1200 at 20% PWM) | Airflow: 29.0 m3/min (1024 CFM) | Static pressure: 350 Pa (1.40 inH2O) | Current: 2.3 A / 110 W
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 280 9GA DC Fan dia. 280x50 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9GA2824P5G001, 9GA2848P5G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA2824P5G001Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 3400 min-1 (1200 at 20% PWM) | Airflow: 29.0 m3/min (1024 CFM) | Static pressure: 350 Pa (1.40 inH2O) | Current: 4.6 A / 110 W
9GA2848P5G001Voltage: 48 VDC (43.2 to 52.8 V) | Speed: 3400 min-1 (1200 at 20% PWM) | Airflow: 29.0 m3/min (1024 CFM) | Static pressure: 350 Pa (1.40 inH2O) | Current: 2.3 A / 110 W
