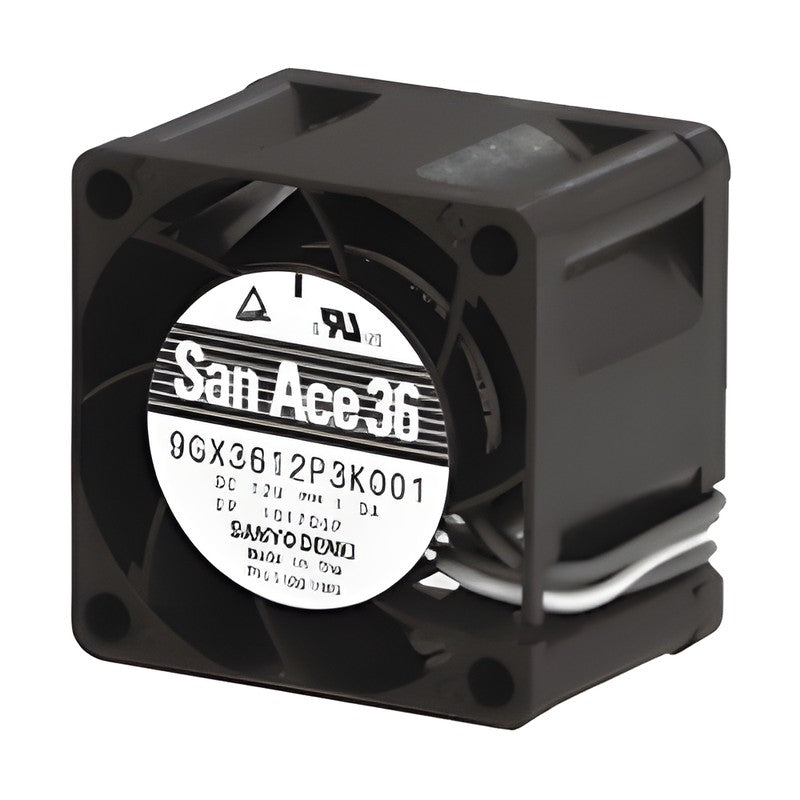

Sanyo Denki San Ace 36 9GX DC Fan 36x36x28 mm (PWM Control)

Sanyo Denki San Ace 36 9GX DC Fan 36x36x28 mm (PWM Control)

The San Ace 36 9GX type is a 36x36x28 mm DC axial fan rated at 12 VDC, delivering up to 0.69 m3/min airflow and 838 Pa static pressure.

Key features

  • San Ace 9GX series DC axial fan in a 36x36x28 mm frame
  • Rated speed 24000 min-1; max. airflow 0.69 m3/min; max. static pressure 838 Pa
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-1050

Specifications

Frame size 36x36x28 mm
Series San Ace 36 9GX type
Rated voltage 12 VDC
Speed 24000 min-1
Airflow 0.69 m3/min
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
Operating temperature -10 to +60 °C
Expected life (L10, 60 °C) 40000 h
Mass 46 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 18-19 (option models: Model Index p. 645-671)
9GX3612P3K001 Static pressure: 838 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GX3612K3002 Static pressure: 838 Pa | Sensor: Without sensor | Frame: Ribbed
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 36 9GX DC Fan 36x36x28 mm (PWM Control)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9GX3612P3K001, 9GX3612K3002

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GX3612P3K001Static pressure: 838 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GX3612K3002Static pressure: 838 Pa | Sensor: Without sensor | Frame: Ribbed
