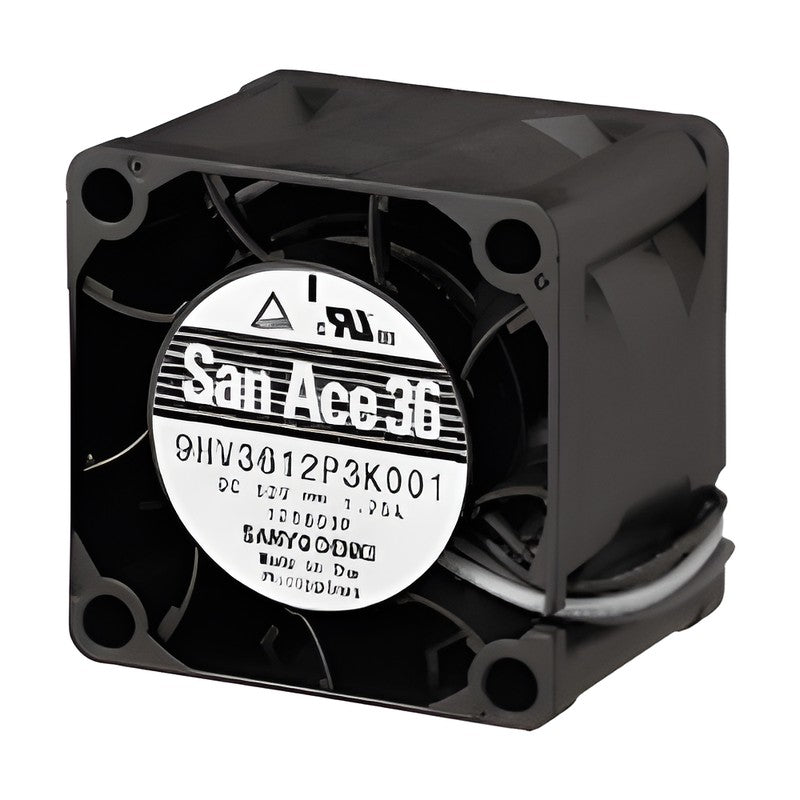

Sanyo Denki San Ace 36 9HV DC Fan 36x36x28 mm (High Static Pressure)

Sanyo Denki San Ace 36 9HV DC Fan 36x36x28 mm (High Static Pressure)

The San Ace 36 9HV type is a 36x36x28 mm high static pressure DC axial fan rated at 12 VDC, delivering up to 0.72 m3/min airflow and 1400 Pa static pressure.

Key features

  • High Static Pressure Fan in the San Ace 9HV series (36x36x28 mm frame)
  • Rated speed 32500 min-1; max. airflow 0.72 m3/min; max. static pressure 1400 Pa
  • Pulse sensor output with PWM speed control (PWM frequency 25 kHz)
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-1050

Specifications

Frame size 36x36x28 mm
Series San Ace 36 9HV type
Rated voltage 12 VDC
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
Operating temperature -20 to +60 °C
Expected life (L10, 60 °C) 30000 h
Mass 53 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 16-17
9HV3612P3K001 Voltage: 12 VDC | Speed: 32500 min-1 | Airflow: 0.72 m3/min | Static pressure: 1400 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
DC Axial FansSanyo Denki
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 36 9HV DC Fan 36x36x28 mm (High Static Pressure)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (1)

9HV3612P3K001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9HV3612P3K001Voltage: 12 VDC | Speed: 32500 min-1 | Airflow: 0.72 m3/min | Static pressure: 1400 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
