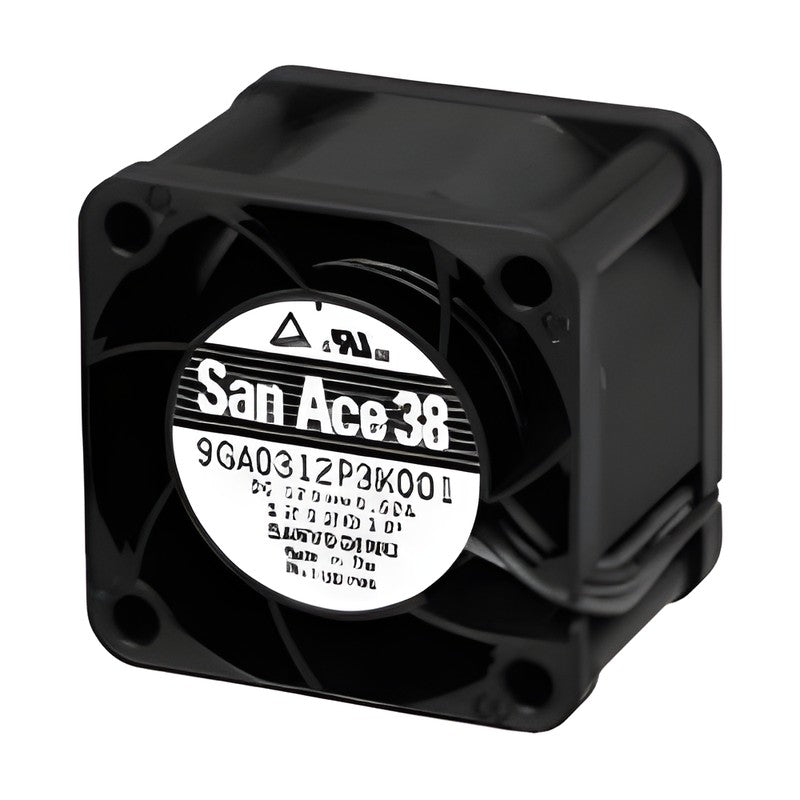

Sanyo Denki San Ace 38 9GA DC Fan 38x38x28 mm (Low Power)

Sanyo Denki San Ace 38 9GA DC Fan 38x38x28 mm (Low Power)

The San Ace 38 9GA type is a 38x38x28 mm low power consumption DC axial fan rated at 12 VDC, delivering up to 0.6 m3/min airflow and 800 Pa static pressure.

Key features

  • Low Power Consumption Fan in the San Ace 9GA series (38x38x28 mm frame)
  • Rated speed 9200 to 25000 min-1; max. airflow 0.22 to 0.6 m3/min
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-1065

Specifications

Frame size 38x38x28 mm
Series San Ace 38 9GA type
Rated voltage 12 VDC
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 40000 h / 60000 h
Mass 52 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 24-26 (option models: Model Index p. 645-671)
9GA0312P3K001 Speed: 25000 min-1 | Airflow: 0.6 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GA0312P3J001 Speed: 23500 min-1 | Airflow: 0.57 m3/min | Static pressure: 720 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GA0312P3G001 Speed: 19000 min-1 | Airflow: 0.45 m3/min | Static pressure: 460 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GA0312E3001 Speed: 14000 min-1 | Airflow: 0.34 m3/min | Static pressure: 250 Pa | Sensor: Pulse sensor | Frame: Ribbed
9GA0312H3001 Speed: 9200 min-1 | Airflow: 0.22 m3/min | Static pressure: 108 Pa | Sensor: Pulse sensor | Frame: Ribbed
9GA0312E3002 Speed: 14000 min-1 | Airflow: 0.34 m3/min | Static pressure: 250 Pa | Sensor: Without sensor | Frame: Ribbed
9GA0312E3D001 Speed: 14000 min-1 | Airflow: 0.34 m3/min | Static pressure: 250 Pa | Sensor: Lock sensor | Frame: Ribbed
9GA0312E30011 Speed: 14000 min-1 | Airflow: 0.34 m3/min | Static pressure: 250 Pa | Sensor: Pulse sensor | Frame: Ribless
9GA0312E30021 Speed: 14000 min-1 | Airflow: 0.34 m3/min | Static pressure: 250 Pa | Sensor: Without sensor | Frame: Ribless
9GA0312E3D0011 Speed: 14000 min-1 | Airflow: 0.34 m3/min | Static pressure: 250 Pa | Sensor: Lock sensor | Frame: Ribless
9GA0312H3002 Speed: 9200 min-1 | Airflow: 0.22 m3/min | Static pressure: 108 Pa | Sensor: Without sensor | Frame: Ribbed
9GA0312H3D001 Speed: 9200 min-1 | Airflow: 0.22 m3/min | Static pressure: 108 Pa | Sensor: Lock sensor | Frame: Ribbed
9GA0312H30011 Speed: 9200 min-1 | Airflow: 0.22 m3/min | Static pressure: 108 Pa | Sensor: Pulse sensor | Frame: Ribless
9GA0312G3001 Speed: 19000 min-1 | Airflow: 0.45 m3/min | Static pressure: 460 Pa | Sensor: Pulse sensor | Frame: Ribbed
9GA0312G3D001 Speed: 19000 min-1 | Airflow: 0.45 m3/min | Static pressure: 460 Pa | Sensor: Lock sensor | Frame: Ribbed
9GA0312P3G0011 Speed: 19000 min-1 | Airflow: 0.45 m3/min | Static pressure: 460 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GA0312J3002 Speed: 23500 min-1 | Airflow: 0.57 m3/min | Static pressure: 720 Pa | Sensor: Without sensor | Frame: Ribbed
9GA0312J3001 Speed: 23500 min-1 | Airflow: 0.57 m3/min | Static pressure: 720 Pa | Sensor: Pulse sensor | Frame: Ribbed
9GA0312J3D001 Speed: 23500 min-1 | Airflow: 0.57 m3/min | Static pressure: 720 Pa | Sensor: Lock sensor | Frame: Ribbed
9GA0312P3J0011 Speed: 23500 min-1 | Airflow: 0.57 m3/min | Static pressure: 720 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GA0312K3001 Speed: 25000 min-1 | Airflow: 0.6 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor | Frame: Ribbed
9GA0312K3D001 Speed: 25000 min-1 | Airflow: 0.6 m3/min | Static pressure: 800 Pa | Sensor: Lock sensor | Frame: Ribbed
9GA0312P3K0011 Speed: 25000 min-1 | Airflow: 0.6 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GA0312K3D0011 Speed: 25000 min-1 | Airflow: 0.6 m3/min | Static pressure: 800 Pa | Sensor: Lock sensor | Frame: Ribless
9GV0312J301 Legacy code (deleted / not in current catalogue) | Size: 38x38x28 mm | Former series: 9GV
9GV0312G301 Legacy code (deleted / not in current catalogue) | Size: 38x38x28 mm | Former series: 9GV
9GV0312E301 Legacy code (deleted / not in current catalogue) | Size: 38x38x28 mm | Former series: 9GV
9GV0312P3J03 Legacy code (deleted / not in current catalogue) | Note: custom PWM model | Size: 38x38 mm | Former series: 9GV
