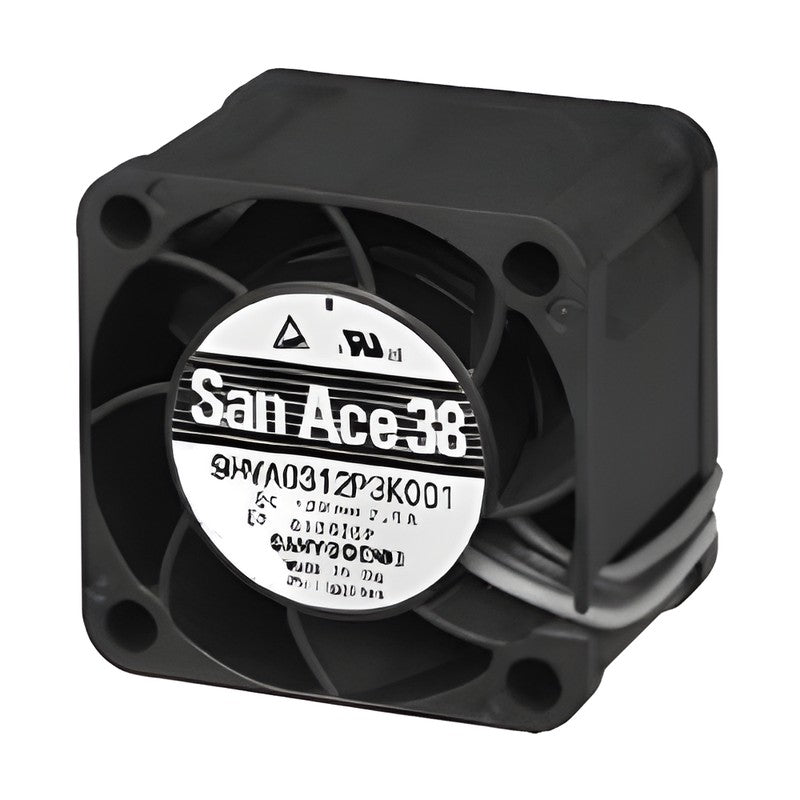

Sanyo Denki San Ace 38 9HVA DC Fan 38x38x28 mm (PWM Control)

Sanyo Denki San Ace 38 9HVA DC Fan 38x38x28 mm (PWM Control)

The San Ace 38 9HVA type is a 38x38x28 mm DC axial fan rated at 12 VDC, delivering up to 0.91 m3/min airflow and 2100 Pa static pressure.

Key features

  • San Ace 9HVA series DC axial fan in a 38x38x28 mm frame
  • Rated speed 30000 to 38500 min-1; max. airflow 0.71 to 0.91 m3/min
  • Pulse sensor output with PWM speed control (PWM frequency 25 kHz)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-1065

Specifications

Frame size 38x38x28 mm
Series San Ace 38 9HVA type
Rated voltage 12 VDC
Sensor Pulse sensor, PWM control
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 30000 h / 40000 h
Mass 53 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 22-23 (option models: Model Index p. 645-671)
9HVA0312P3K001 Speed: 38500 min-1 | Airflow: 0.91 m3/min | Static pressure: 2100 Pa | Frame: Ribbed
9HVA0312P3G001 Speed: 30000 min-1 | Airflow: 0.71 m3/min | Static pressure: 1300 Pa | Frame: Ribbed
9HVA0312P3G0011 Speed: 30000 min-1 | Airflow: 0.71 m3/min | Static pressure: 1300 Pa | Frame: Ribless
9HVA0312P3K0011 Speed: 38500 min-1 | Airflow: 0.91 m3/min | Static pressure: 2100 Pa | Frame: Ribless
DC Axial FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 38 9HVA DC Fan 38x38x28 mm (PWM Control)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (4)

9HVA0312P3K001, 9HVA0312P3G001, 9HVA0312P3G0011, 9HVA0312P3K0011

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9HVA0312P3K001Speed: 38500 min-1 | Airflow: 0.91 m3/min | Static pressure: 2100 Pa | Frame: Ribbed
9HVA0312P3G001Speed: 30000 min-1 | Airflow: 0.71 m3/min | Static pressure: 1300 Pa | Frame: Ribbed
9HVA0312P3G0011Speed: 30000 min-1 | Airflow: 0.71 m3/min | Static pressure: 1300 Pa | Frame: Ribless
9HVA0312P3K0011Speed: 38500 min-1 | Airflow: 0.91 m3/min | Static pressure: 2100 Pa | Frame: Ribless
