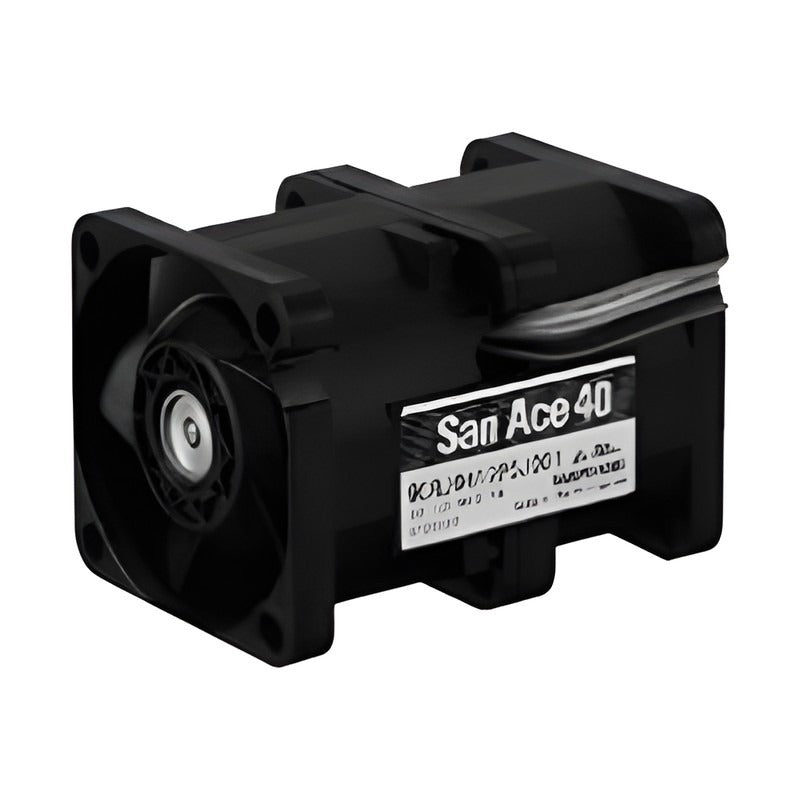

Sanyo Denki San Ace 40 9CRJ Counter Rotating Fan 40x40x56 mm

Sanyo Denki San Ace 40 9CRJ Counter Rotating Fan 40x40x56 mm

The San Ace 40 9CRJ type is a 40x40x56 mm DC counter rotating fan that pairs two contra-rotating impellers for high airflow and high static pressure.

Key features

  • Up to 1.06 m3/min max. airflow and 2400 Pa max. static pressure
  • Rated voltage 12 VDC (1 catalogue model)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size 40x40x56 mm
Series / type San Ace 40 9CRJ type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Expected life (L10) 30000 h at 60 °C
Rated voltage 12 VDC
Mass 110 g
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 217-218
9CRJ0412P5J001 Voltage: 12 VDC (10.8 to 12.6 V) | Speed (inlet/outlet): 36200 / 32000 min-1 | Airflow: 1.06 m3/min (37.4 CFM) | Static pressure: 2400 Pa (9.64 inH2O) | SPL: 72 dB(A) | Current / input: 3.1 A / 37.2 W
DC Counter Rotating FansSanyo Denki
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 9CRJ Counter Rotating Fan 40x40x56 mm

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (1)

9CRJ0412P5J001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CRJ0412P5J001Voltage: 12 VDC (10.8 to 12.6 V) | Speed (inlet/outlet): 36200 / 32000 min-1 | Airflow: 1.06 m3/min (37.4 CFM) | Static pressure: 2400 Pa (9.64 inH2O) | SPL: 72 dB(A) | Current / input: 3.1 A / 37.2 W
