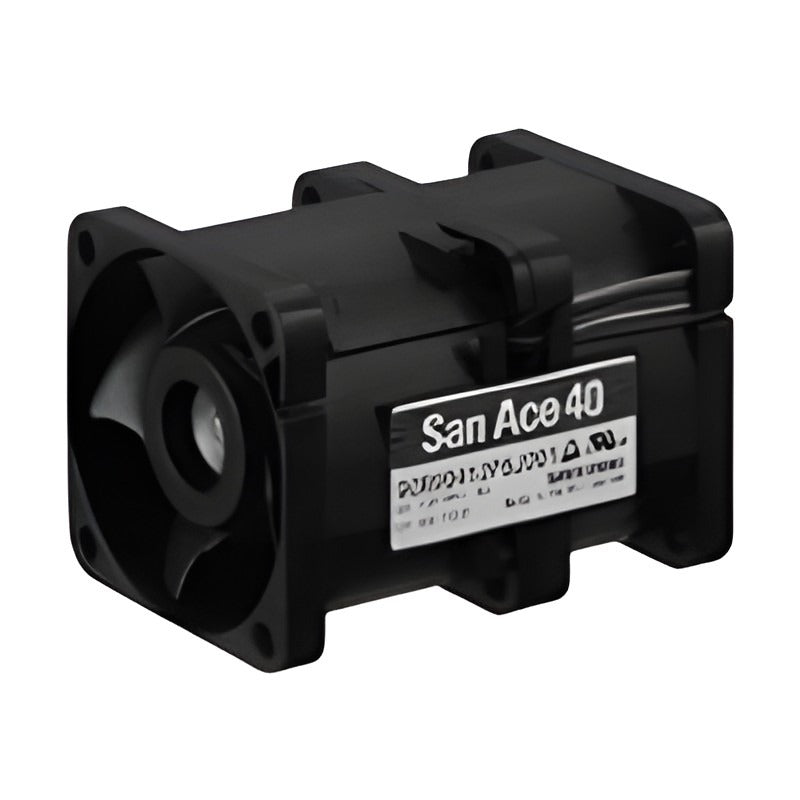

Sanyo Denki San Ace 40 9CRV Counter Rotating Fan 40x40x56 mm

Sanyo Denki San Ace 40 9CRV Counter Rotating Fan 40x40x56 mm

The San Ace 40 9CRV type is a 40x40x56 mm DC counter rotating fan that pairs two contra-rotating impellers for high airflow and high static pressure.

Key features

  • Up to 0.9 m3/min max. airflow and 1050 Pa max. static pressure
  • Rated voltage 12 VDC (4 catalogue models)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size 40x40x56 mm
Series / type San Ace 40 9CRV type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 12 VDC
Mass 100 g
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 221-223
9CRV0412P5J201 Speed (inlet/outlet): 22500 / 20000 min-1 | Airflow: 0.9 m3/min (31.8 CFM) | Static pressure: 1050 Pa (4.22 inH2O) | SPL: 68 dB(A) | Current / input: 1.8 A / 21.6 W
9CRV0412P5G201 Speed (inlet/outlet): 19000 / 16900 min-1 | Airflow: 0.76 m3/min (26.8 CFM) | Static pressure: 748 Pa (3.0 inH2O) | SPL: 62 dB(A) | Current / input: 1.1 A / 13.2 W
9CRV0412P5S201 Speed (inlet/outlet): 17000 / 15100 min-1 | Airflow: 0.68 m3/min (24 CFM) | Static pressure: 590 Pa (2.37 inH2O) | SPL: 59 dB(A) | Current / input: 0.8 A / 9.6 W
9CRV0412P5H201 Speed (inlet/outlet): 15000 / 13300 min-1 | Airflow: 0.6 m3/min (21.2 CFM) | Static pressure: 451 Pa (1.81 inH2O) | SPL: 56 dB(A) | Current / input: 0.55 A / 6.6 W
9CRD0412P5J03 Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 19000 min-1
9CRD0412P5G03 Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 16700 min-1
9CRD0412P5H03 Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 15000 min-1
9CRD0412P5M03 Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 14000 min-1
9CRA0412K501 Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 17000 min-1
9CRA0412J501 Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 15800 min-1
9CRA0412G501 Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 14000 min-1
DC Counter Rotating FansSanyo Denki
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 9CRV Counter Rotating Fan 40x40x56 mm

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (11)

9CRV0412P5J201, 9CRV0412P5G201, 9CRV0412P5S201, 9CRV0412P5H201, 9CRD0412P5J03, 9CRD0412P5G03, 9CRD0412P5H03, 9CRD0412P5M03, 9CRA0412K501, 9CRA0412J501 + 1 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CRV0412P5J201Speed (inlet/outlet): 22500 / 20000 min-1 | Airflow: 0.9 m3/min (31.8 CFM) | Static pressure: 1050 Pa (4.22 inH2O) | SPL: 68 dB(A) | Current / input: 1.8 A / 21.6 W
9CRV0412P5G201Speed (inlet/outlet): 19000 / 16900 min-1 | Airflow: 0.76 m3/min (26.8 CFM) | Static pressure: 748 Pa (3.0 inH2O) | SPL: 62 dB(A) | Current / input: 1.1 A / 13.2 W
9CRV0412P5S201Speed (inlet/outlet): 17000 / 15100 min-1 | Airflow: 0.68 m3/min (24 CFM) | Static pressure: 590 Pa (2.37 inH2O) | SPL: 59 dB(A) | Current / input: 0.8 A / 9.6 W
9CRV0412P5H201Speed (inlet/outlet): 15000 / 13300 min-1 | Airflow: 0.6 m3/min (21.2 CFM) | Static pressure: 451 Pa (1.81 inH2O) | SPL: 56 dB(A) | Current / input: 0.55 A / 6.6 W
9CRD0412P5J03Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 19000 min-1
9CRD0412P5G03Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 16700 min-1
9CRD0412P5H03Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 15000 min-1
9CRD0412P5M03Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 14000 min-1
9CRA0412K501Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 17000 min-1
9CRA0412J501Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 15800 min-1
9CRA0412G501Legacy code (deleted / not in current catalogue) | Size: 40x40x56 mm | Voltage: 12 VDC | Speed: 14000 min-1
