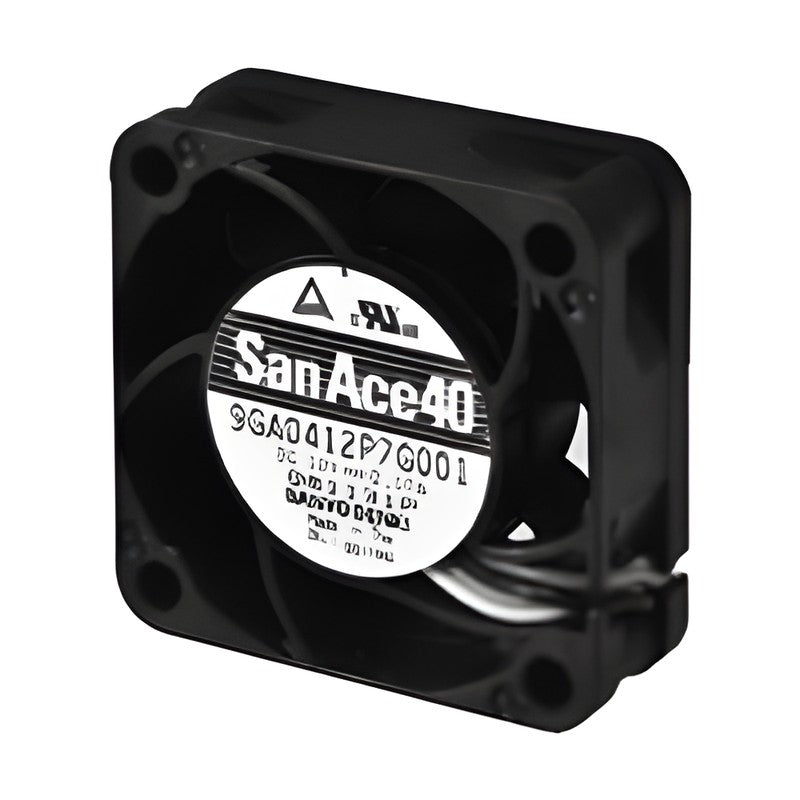

Sanyo Denki San Ace 40 9GA DC Fan 40x40x15 mm (Low Power)

The San Ace 40 9GA type is a 40x40x15 mm low power consumption DC axial fan rated at 5 / 12 VDC, delivering up to 0.36 m3/min airflow and 192 Pa static pressure.

Key features

Low Power Consumption Fan in the San Ace 9GA series (40x40x15 mm frame)
Rated speed 4400 to 13100 min-1; max. airflow 0.11 to 0.36 m3/min
Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
Locked rotor burnout protection and reverse polarity protection
Compatible finger guards: 109-059, 109-059H

Specifications

Frame size	40x40x15 mm
Series	San Ace 40 9GA type
Rated voltage	5 / 12 VDC
Frame	Ribbed
Material	Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature	-20 to +70 °C
Expected life (L10, 60 °C)	60000 h / 40000 h
Mass	28 g
Motor protection	Locked rotor burnout protection, reverse polarity protection
Source	Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 29-31 (option models: Model Index p. 645-671)

9GA0405P7C001		Voltage: 5 VDC \| Speed: 8800 min-1 \| Airflow: 0.24 m3/min \| Static pressure: 86 Pa \| Sensor: Pulse sensor, PWM control
9GA0412P7G001		Voltage: 12 VDC \| Speed: 13100 min-1 \| Airflow: 0.36 m3/min \| Static pressure: 192 Pa \| Sensor: Pulse sensor, PWM control
9GA0412G7001		Voltage: 12 VDC \| Speed: 13100 min-1 \| Airflow: 0.36 m3/min \| Static pressure: 192 Pa \| Sensor: Pulse sensor
9GA0412H7001		Voltage: 12 VDC \| Speed: 7300 min-1 \| Airflow: 0.2 m3/min \| Static pressure: 59.6 Pa \| Sensor: Pulse sensor
9GA0412L7001		Voltage: 12 VDC \| Speed: 4400 min-1 \| Airflow: 0.11 m3/min \| Static pressure: 22.7 Pa \| Sensor: Pulse sensor
9GA0412G7002		Voltage: 12 VDC \| Speed: 13100 min-1 \| Airflow: 0.36 m3/min \| Static pressure: 192 Pa \| Sensor: Without sensor
9GA0412G7D001		Voltage: 12 VDC \| Speed: 13100 min-1 \| Airflow: 0.36 m3/min \| Static pressure: 192 Pa \| Sensor: Lock sensor
9GA0412H7002		Voltage: 12 VDC \| Speed: 7300 min-1 \| Airflow: 0.2 m3/min \| Static pressure: 59.6 Pa \| Sensor: Without sensor
9GA0412H7D001		Voltage: 12 VDC \| Speed: 7300 min-1 \| Airflow: 0.2 m3/min \| Static pressure: 59.6 Pa \| Sensor: Lock sensor

DC Axial FansSanyo Denki

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 9GA DC Fan 40x40x15 mm (Low Power)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (9)

9GA0405P7C001, 9GA0412P7G001, 9GA0412G7001, 9GA0412H7001, 9GA0412L7001, 9GA0412G7002, 9GA0412G7D001, 9GA0412H7002, 9GA0412H7D001
