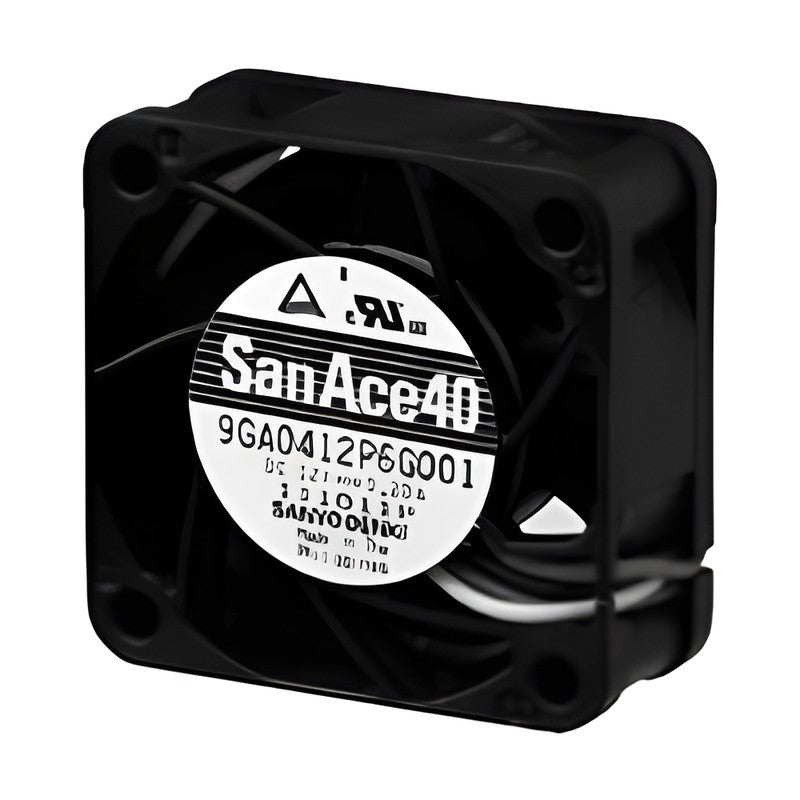

Sanyo Denki San Ace 40 9GA DC Fan 40x40x20 mm (Low Power)

Sanyo Denki San Ace 40 9GA DC Fan 40x40x20 mm (Low Power)

The San Ace 40 9GA type is a 40x40x20 mm low power consumption DC axial fan rated at 5 / 12 / 24 VDC, delivering up to 0.42 m3/min airflow and 318 Pa static pressure.

Key features

  • Low Power Consumption Fan in the San Ace 9GA series (40x40x20 mm frame)
  • Rated speed 8000 to 16000 min-1; max. airflow 0.21 to 0.42 m3/min
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-059, 109-059H

Specifications

Frame size 40x40x20 mm
Series San Ace 40 9GA type
Rated voltage 5 / 12 / 24 VDC
Frame Ribbed
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 60000 h / 40000 h
Mass 35 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 34-37 (option models: Model Index p. 645-671)
9GA0405P6H001 Voltage: 5 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor, PWM control
9GA0405P6F001 Voltage: 5 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor, PWM control
9GA0412P6G001 Voltage: 12 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Pulse sensor, PWM control
9GA0412P6H001 Voltage: 12 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor, PWM control
9GA0412P6F001 Voltage: 12 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor, PWM control
9GA0424P6G001 Voltage: 24 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Pulse sensor, PWM control
9GA0424P6H001 Voltage: 24 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor, PWM control
9GA0424P6F001 Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor, PWM control
9GA0405F6002 Voltage: 5 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Without sensor
9GA0405F6001 Voltage: 5 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor
9GA0405H6002 Voltage: 5 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Without sensor
9GA0405H6001 Voltage: 5 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor
9GA0412F6002 Voltage: 12 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Without sensor
9GA0412F6001 Voltage: 12 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor
9GA0412G6002 Voltage: 12 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Without sensor
9GA0412G6001 Voltage: 12 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Pulse sensor
9GA0412H6002 Voltage: 12 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Without sensor
9GA0412H6001 Voltage: 12 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor
9GA0424F6002 Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Without sensor
9GA0424F6001 Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor
9GA0424F6D001 Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Lock sensor
9GA0424G6002 Voltage: 24 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Without sensor
9GA0424G6001 Voltage: 24 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Pulse sensor
9GA0424G6D001 Voltage: 24 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Lock sensor
9GA0424H6002 Voltage: 24 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Without sensor
9GA0424H6001 Voltage: 24 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor
9GA0424H6D001 Voltage: 24 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Lock sensor
DC Axial FansSanyo Denki
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 9GA DC Fan 40x40x20 mm (Low Power)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (27)

9GA0405P6H001, 9GA0405P6F001, 9GA0412P6G001, 9GA0412P6H001, 9GA0412P6F001, 9GA0424P6G001, 9GA0424P6H001, 9GA0424P6F001, 9GA0405F6002, 9GA0405F6001 + 17 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA0405P6H001Voltage: 5 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor, PWM control
9GA0405P6F001Voltage: 5 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor, PWM control
9GA0412P6G001Voltage: 12 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Pulse sensor, PWM control
9GA0412P6H001Voltage: 12 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor, PWM control
9GA0412P6F001Voltage: 12 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor, PWM control
9GA0424P6G001Voltage: 24 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Pulse sensor, PWM control
9GA0424P6H001Voltage: 24 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor, PWM control
9GA0424P6F001Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor, PWM control
9GA0405F6002Voltage: 5 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Without sensor
9GA0405F6001Voltage: 5 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor
9GA0405H6002Voltage: 5 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Without sensor
9GA0405H6001Voltage: 5 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor
9GA0412F6002Voltage: 12 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Without sensor
9GA0412F6001Voltage: 12 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor
9GA0412G6002Voltage: 12 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Without sensor
9GA0412G6001Voltage: 12 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Pulse sensor
9GA0412H6002Voltage: 12 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Without sensor
9GA0412H6001Voltage: 12 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor
9GA0424F6002Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Without sensor
9GA0424F6001Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Pulse sensor
9GA0424F6D001Voltage: 24 VDC | Speed: 8000 min-1 | Airflow: 0.21 m3/min | Static pressure: 79.5 Pa | Sensor: Lock sensor
9GA0424G6002Voltage: 24 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Without sensor
9GA0424G6001Voltage: 24 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Pulse sensor
9GA0424G6D001Voltage: 24 VDC | Speed: 16000 min-1 | Airflow: 0.42 m3/min | Static pressure: 318 Pa | Sensor: Lock sensor
9GA0424H6002Voltage: 24 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Without sensor
9GA0424H6001Voltage: 24 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Pulse sensor
9GA0424H6D001Voltage: 24 VDC | Speed: 12400 min-1 | Airflow: 0.33 m3/min | Static pressure: 191 Pa | Sensor: Lock sensor
