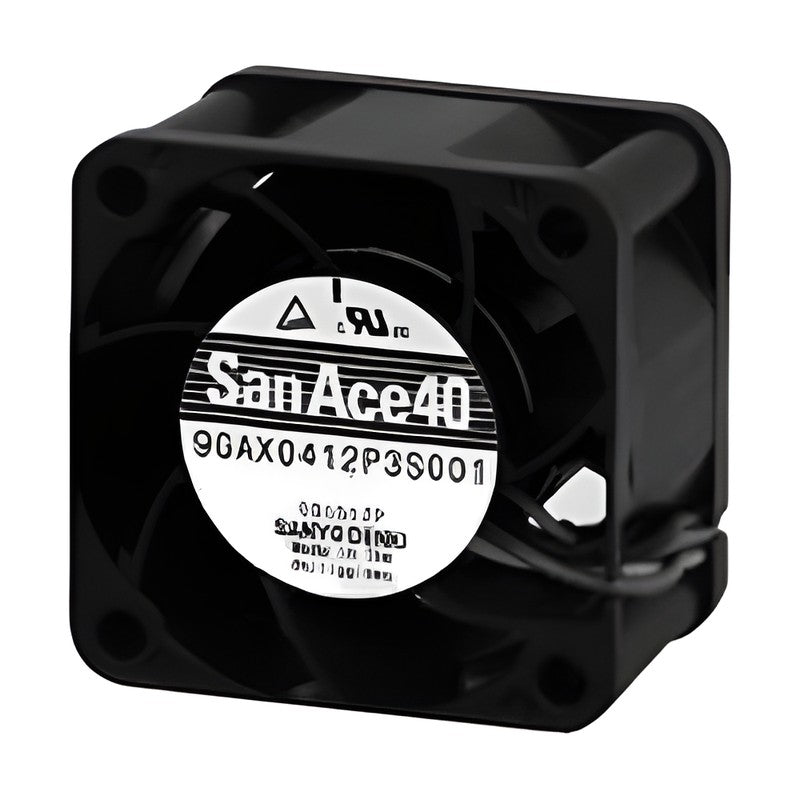

Sanyo Denki San Ace 40 9GAX DC Fan 40x40x28 mm (Low Power)

Sanyo Denki San Ace 40 9GAX DC Fan 40x40x28 mm (Low Power)

The San Ace 40 9GAX type is a 40x40x28 mm low power consumption DC axial fan rated at 12 VDC, delivering up to 0.9 m3/min airflow and 1000 Pa static pressure.

Key features

  • Low Power Consumption Fan in the San Ace 9GAX series (40x40x28 mm frame)
  • Rated speed 22000 to 25000 min-1; max. airflow 0.81 to 0.9 m3/min
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-059, 109-059H

Specifications

Frame size 40x40x28 mm
Series San Ace 40 9GAX type
Rated voltage 12 VDC
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -20 to +60 °C
Expected life (L10, 60 °C) 30000 h
Mass 53 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 44-46 (option models: Model Index p. 645-671)
9GAX0412P3S001 Speed: 25000 min-1 | Airflow: 0.9 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GAX0412P3S003 Speed: 25000 min-1 | Airflow: 0.9 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GAX0412P3K001 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GAX0412P3K003 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GAX0412P3K0011 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GAX0412K3002 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Without sensor | Frame: Ribbed
9GAX0412K3001 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor | Frame: Ribbed
9GAX0412K3D001 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Lock sensor | Frame: Ribbed
9GAX0412P3K0031 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GAX0412K30021 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Without sensor | Frame: Ribless
9GAX0412K30011 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor | Frame: Ribless
9GAX0412K3D0011 Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Lock sensor | Frame: Ribless
9GAX0412P3S0011 Speed: 25000 min-1 | Airflow: 0.9 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GAX0412P3S0031 Speed: 25000 min-1 | Airflow: 0.9 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
DC Axial FansSanyo Denki
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 9GAX DC Fan 40x40x28 mm (Low Power)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (14)

9GAX0412P3S001, 9GAX0412P3S003, 9GAX0412P3K001, 9GAX0412P3K003, 9GAX0412P3K0011, 9GAX0412K3002, 9GAX0412K3001, 9GAX0412K3D001, 9GAX0412P3K0031, 9GAX0412K30021 + 4 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GAX0412P3S001Speed: 25000 min-1 | Airflow: 0.9 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GAX0412P3S003Speed: 25000 min-1 | Airflow: 0.9 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GAX0412P3K001Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GAX0412P3K003Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GAX0412P3K0011Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GAX0412K3002Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Without sensor | Frame: Ribbed
9GAX0412K3001Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor | Frame: Ribbed
9GAX0412K3D001Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Lock sensor | Frame: Ribbed
9GAX0412P3K0031Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GAX0412K30021Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Without sensor | Frame: Ribless
9GAX0412K30011Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Pulse sensor | Frame: Ribless
9GAX0412K3D0011Speed: 22000 min-1 | Airflow: 0.81 m3/min | Static pressure: 800 Pa | Sensor: Lock sensor | Frame: Ribless
9GAX0412P3S0011Speed: 25000 min-1 | Airflow: 0.9 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GAX0412P3S0031Speed: 25000 min-1 | Airflow: 0.9 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
