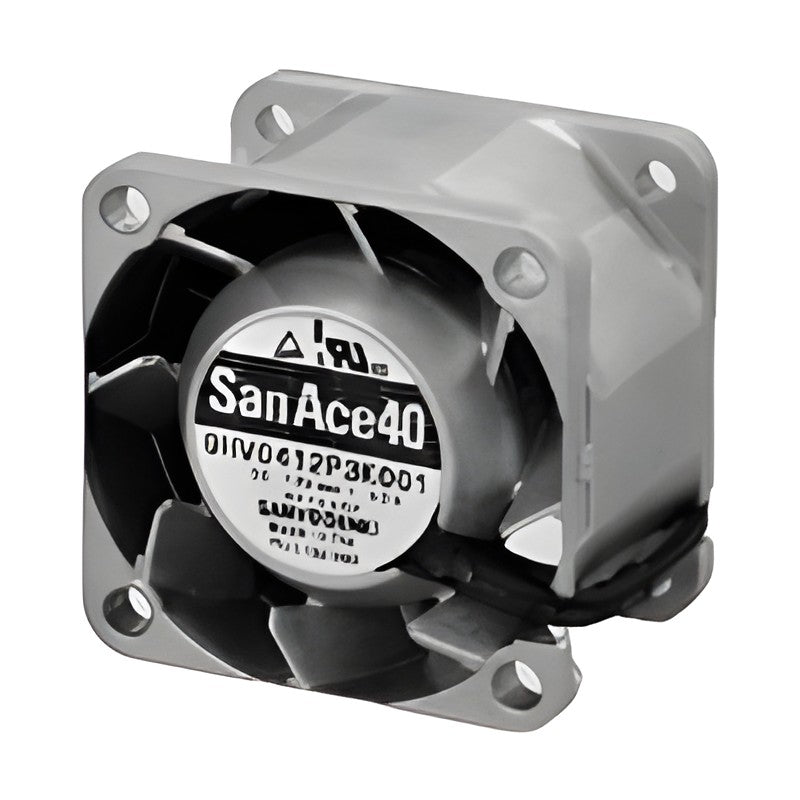

Sanyo Denki San Ace 40 9HV DC Fan 40x40x28 mm (High Static Pressure)

The San Ace 40 9HV type is a 40x40x28 mm high static pressure DC axial fan rated at 12 VDC, delivering up to 0.83 m3/min airflow and 1100 Pa static pressure.

Key features

High Static Pressure Fan in the San Ace 9HV series (40x40x28 mm frame)
Rated speed 25000 min-1; max. airflow 0.83 m3/min; max. static pressure 1100 Pa
Pulse sensor output with PWM speed control (PWM frequency 25 kHz)
Locked rotor burnout protection and reverse polarity protection
Compatible finger guards: 109-059, 109-059H

Specifications

Frame size	40x40x28 mm
Series	San Ace 40 9HV type
Rated voltage	12 VDC
Material	Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature	-20 to +60 °C
Expected life (L10, 60 °C)	40000 h
Mass	60 g
Motor protection	Locked rotor burnout protection, reverse polarity protection
Source	Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 42-43

9HV0412P3K001

DC Axial FansSanyo Denki

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 9HV DC Fan 40x40x28 mm (High Static Pressure)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (1)

9HV0412P3K001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	9HV0412P3K001	Voltage: 12 VDC \| Speed: 25000 min-1 \| Airflow: 0.83 m3/min \| Static pressure: 1100 Pa \| Sensor: Pulse sensor, PWM control \| Frame: Ribless
