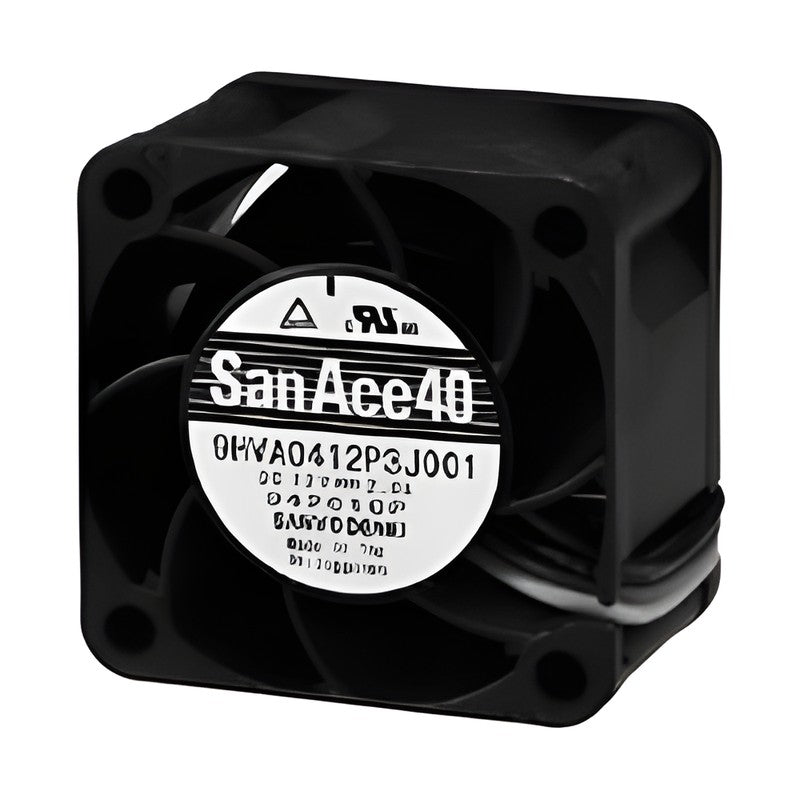

Sanyo Denki San Ace 40 9HVA DC Fan 40x40x28 mm (PWM Control)

Sanyo Denki San Ace 40 9HVA DC Fan 40x40x28 mm (PWM Control)

The San Ace 40 9HVA type is a 40x40x28 mm DC axial fan rated at 12 / 24 VDC, delivering up to 1.05 m3/min airflow and 2300 Pa static pressure.

Key features

  • San Ace 9HVA series DC axial fan in a 40x40x28 mm frame
  • Rated speed 33000 to 38000 min-1; max. airflow 0.92 to 1.05 m3/min
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-059, 109-059H

Specifications

Frame size 40x40x28 mm
Series San Ace 40 9HVA type
Rated voltage 12 / 24 VDC
Frame Ribbed
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 30000 h
Mass 57 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 40-41 (option models: Model Index p. 645-671)
9HVA0412P3J001 Voltage: 12 VDC | Speed: 38000 min-1 | Airflow: 1.05 m3/min | Static pressure: 2300 Pa | Sensor: Pulse sensor, PWM control
9HVA0424P3G001 Voltage: 24 VDC | Speed: 33000 min-1 | Airflow: 0.92 m3/min | Static pressure: 1650 Pa | Sensor: Pulse sensor, PWM control
9HVA0412J3D001 Voltage: 12 VDC | Speed: 38000 min-1 | Airflow: 1.05 m3/min | Static pressure: 2300 Pa | Sensor: Lock sensor
DC Axial FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 9HVA DC Fan 40x40x28 mm (PWM Control)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (3)

9HVA0412P3J001, 9HVA0424P3G001, 9HVA0412J3D001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9HVA0412P3J001Voltage: 12 VDC | Speed: 38000 min-1 | Airflow: 1.05 m3/min | Static pressure: 2300 Pa | Sensor: Pulse sensor, PWM control
9HVA0424P3G001Voltage: 24 VDC | Speed: 33000 min-1 | Airflow: 0.92 m3/min | Static pressure: 1650 Pa | Sensor: Pulse sensor, PWM control
9HVA0412J3D001Voltage: 12 VDC | Speed: 38000 min-1 | Airflow: 1.05 m3/min | Static pressure: 2300 Pa | Sensor: Lock sensor
