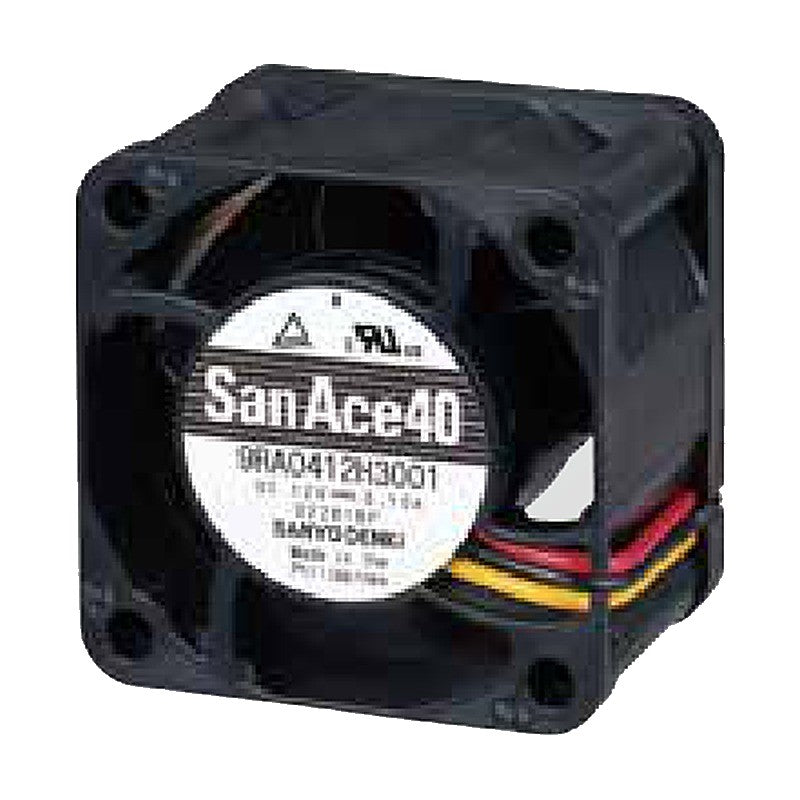

Sanyo Denki San Ace 40 9RA DC Fan 40x40x28 mm (Low Noise, Low Power)

Sanyo Denki San Ace 40 9RA DC Fan 40x40x28 mm (Low Noise, Low Power)

The San Ace 40 9RA type is a 40x40x28 mm DC axial fan rated at 5 / 12 / 24 VDC, delivering up to 0.31 m3/min airflow and 115 Pa static pressure.

Key features

  • San Ace 9RA series DC axial fan in a 40x40x28 mm frame
  • Rated speed 4600 to 9600 min-1; max. airflow 0.14 to 0.31 m3/min
  • Pulse sensor output as standard
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-059, 109-059H

Specifications

Frame size 40x40x28 mm
Series San Ace 40 9RA type
Rated voltage 5 / 12 / 24 VDC
Sensor Pulse sensor
Frame Ribbed
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 60000 h
Mass 40 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace 9RA leaflet San_Ace_40RA28_E, p. 1-2
9RA0405H3001 Voltage: 5 VDC | Speed: 9600 min-1 | Airflow: 0.31 m3/min | Static pressure: 115 Pa
9RA0405F3001 Voltage: 5 VDC | Speed: 7400 min-1 | Airflow: 0.23 m3/min | Static pressure: 68.3 Pa
9RA0412H3001 Voltage: 12 VDC | Speed: 9600 min-1 | Airflow: 0.31 m3/min | Static pressure: 115 Pa
9RA0412F3001 Voltage: 12 VDC | Speed: 7400 min-1 | Airflow: 0.23 m3/min | Static pressure: 68.3 Pa
9RA0412M3001 Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.14 m3/min | Static pressure: 26.4 Pa
9RA0424H3001 Voltage: 24 VDC | Speed: 9600 min-1 | Airflow: 0.31 m3/min | Static pressure: 115 Pa
9RA0424F3001 Voltage: 24 VDC | Speed: 7400 min-1 | Airflow: 0.23 m3/min | Static pressure: 68.3 Pa
DC Axial FansSanyo Denki
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 9RA DC Fan 40x40x28 mm (Low Noise, Low Power)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (7)

9RA0405H3001, 9RA0405F3001, 9RA0412H3001, 9RA0412F3001, 9RA0412M3001, 9RA0424H3001, 9RA0424F3001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9RA0405H3001Voltage: 5 VDC | Speed: 9600 min-1 | Airflow: 0.31 m3/min | Static pressure: 115 Pa
9RA0405F3001Voltage: 5 VDC | Speed: 7400 min-1 | Airflow: 0.23 m3/min | Static pressure: 68.3 Pa
9RA0412H3001Voltage: 12 VDC | Speed: 9600 min-1 | Airflow: 0.31 m3/min | Static pressure: 115 Pa
9RA0412F3001Voltage: 12 VDC | Speed: 7400 min-1 | Airflow: 0.23 m3/min | Static pressure: 68.3 Pa
9RA0412M3001Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.14 m3/min | Static pressure: 26.4 Pa
9RA0424H3001Voltage: 24 VDC | Speed: 9600 min-1 | Airflow: 0.31 m3/min | Static pressure: 115 Pa
9RA0424F3001Voltage: 24 VDC | Speed: 7400 min-1 | Airflow: 0.23 m3/min | Static pressure: 68.3 Pa
