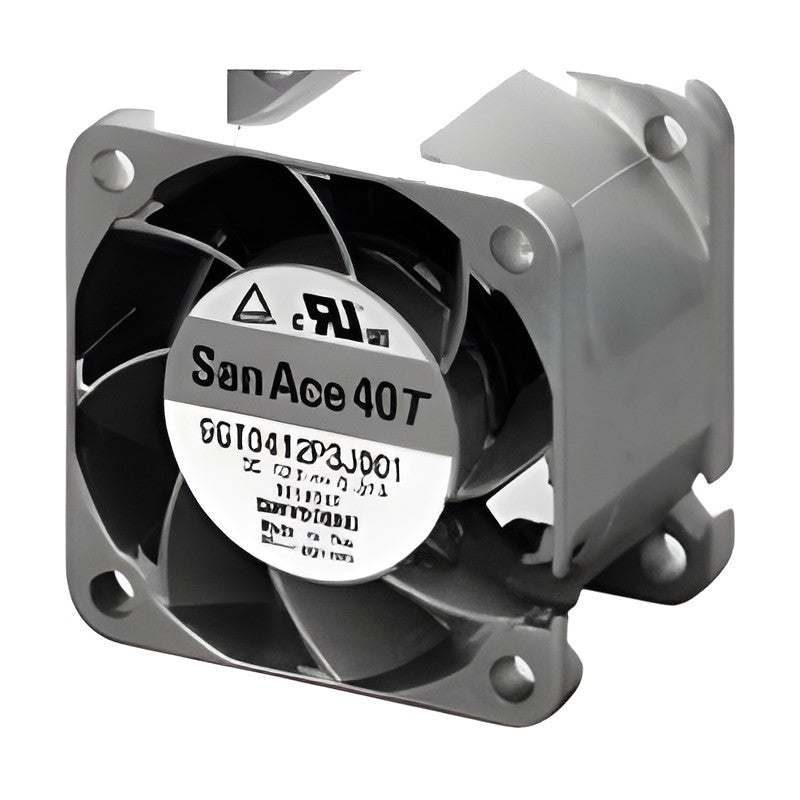

Sanyo Denki San Ace 40T 9GT Wide Temperature Range Fan (40x40x28 mm)

Sanyo Denki San Ace 40T 9GT Wide Temperature Range Fan (40x40x28 mm)

San Ace 40T 9GT wide temperature range DC fan, 40x40x28 mm, rated for operation from -40 to +85 °C.

Key features

  • Wide operating temperature range of -40 to +85 °C; aluminum frame
  • Rated voltage 12, 24 VDC; 2 model(s) in the catalogue specification table
  • Max. airflow up to 0.52 m3/min, max. static pressure up to 206 Pa
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection, reverse polarity protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 40x40x28 mm
Fan type DC axial fan, -40 to +85 °C
Airflow 0.52 m3/min
Static pressure 206 Pa
SPL 48 dB(A)
Operating temperature -40 to +85 °C
Expected life (L10) 40000 h at 85 °C
Mass 55 g
Material Frame: Aluminum, Impeller: Plastic (UL 94V-1)
Motor protection Locked rotor burnout protection, Reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 474-475; Model Index p. 651
9GT0412P3J001 Voltage: 12 VDC | Speed: 11700 min-1 | Feature: PWM, pulse sensor
9GT0424P3J001 Voltage: 24 VDC | Speed: 11700 min-1 | Feature: PWM, pulse sensor
9GT0412J3002 Voltage: 12 VDC | Speed: 11700 min-1 | Feature: No sensor (option)
9GT0412J3001 Voltage: 12 VDC | Speed: 11700 min-1 | Feature: Pulse sensor (option)
9GT0412J3D001 Voltage: 12 VDC | Speed: 11700 min-1 | Feature: Lock sensor (option)
9GT0424J3002 Voltage: 24 VDC | Speed: 11700 min-1 | Feature: No sensor (option)
9GT0424J3001 Voltage: 24 VDC | Speed: 11700 min-1 | Feature: Pulse sensor (option)
9GT0424J3D001 Voltage: 24 VDC | Speed: 11700 min-1 | Feature: Lock sensor (option)
DC Axial FansSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40T 9GT Wide Temperature Range Fan (40x40x28 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (8)

9GT0412P3J001, 9GT0424P3J001, 9GT0412J3002, 9GT0412J3001, 9GT0412J3D001, 9GT0424J3002, 9GT0424J3001, 9GT0424J3D001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GT0412P3J001Voltage: 12 VDC | Speed: 11700 min-1 | Feature: PWM, pulse sensor
9GT0424P3J001Voltage: 24 VDC | Speed: 11700 min-1 | Feature: PWM, pulse sensor
9GT0412J3002Voltage: 12 VDC | Speed: 11700 min-1 | Feature: No sensor (option)
9GT0412J3001Voltage: 12 VDC | Speed: 11700 min-1 | Feature: Pulse sensor (option)
9GT0412J3D001Voltage: 12 VDC | Speed: 11700 min-1 | Feature: Lock sensor (option)
9GT0424J3002Voltage: 24 VDC | Speed: 11700 min-1 | Feature: No sensor (option)
9GT0424J3001Voltage: 24 VDC | Speed: 11700 min-1 | Feature: Pulse sensor (option)
9GT0424J3D001Voltage: 24 VDC | Speed: 11700 min-1 | Feature: Lock sensor (option)
