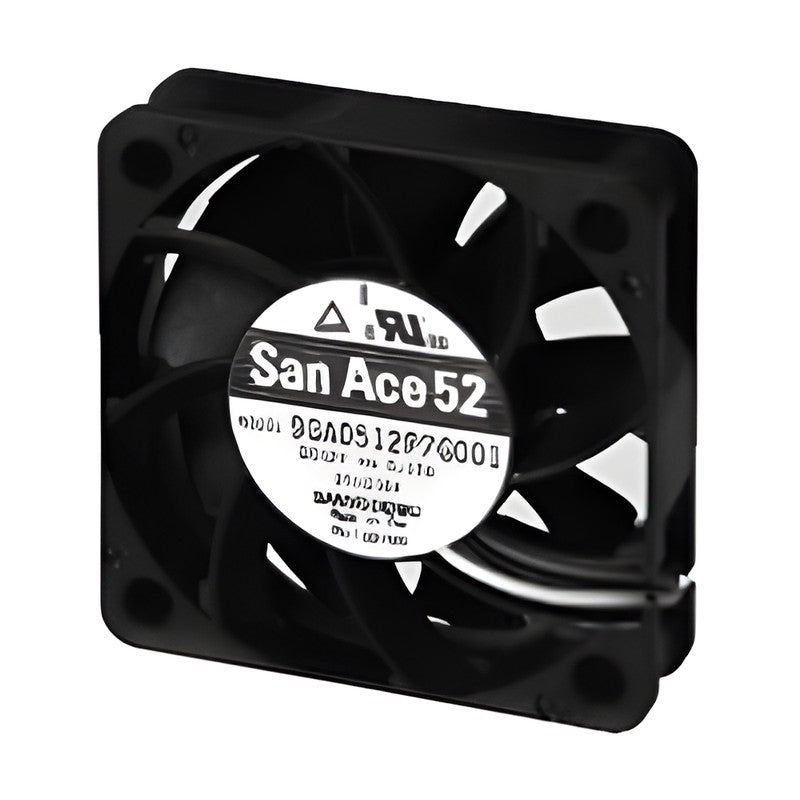

Sanyo Denki San Ace 52 9GA DC Fan 52x52x15 mm (Low Power)

Sanyo Denki San Ace 52 9GA DC Fan 52x52x15 mm (Low Power)

The San Ace 52 9GA type is a 52x52x15 mm low power consumption DC axial fan rated at 12 / 24 VDC, delivering up to 0.5 m3/min airflow and 91.5 Pa static pressure.

Key features

  • Low Power Consumption Fan in the San Ace 9GA series (52x52x15 mm frame)
  • Rated speed 3400 to 7800 min-1; max. airflow 0.215 to 0.5 m3/min
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-1156

Specifications

Frame size 52x52x15 mm
Series San Ace 52 9GA type
Rated voltage 12 / 24 VDC
Frame Ribbed
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 40000 h
Mass 40 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 57-60 (option models: Model Index p. 645-671)
9GA0512P7G001 Voltage: 12 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Pulse sensor, PWM control
9GA0512P7A001 Voltage: 12 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59 Pa | Sensor: Pulse sensor, PWM control
9GA0512P7H001 Voltage: 12 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Pulse sensor, PWM control
9GA0512P7M001 Voltage: 12 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17 Pa | Sensor: Pulse sensor, PWM control
9GA0524P7G001 Voltage: 24 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Pulse sensor, PWM control
9GA0524P7A001 Voltage: 24 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59.0 Pa | Sensor: Pulse sensor, PWM control
9GA0524P7H001 Voltage: 24 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Pulse sensor, PWM control
9GA0524P7M001 Voltage: 24 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17.0 Pa | Sensor: Pulse sensor, PWM control
9GA0512A7002 Voltage: 12 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59 Pa | Sensor: Without sensor
9GA0512A7001 Voltage: 12 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59 Pa | Sensor: Pulse sensor
9GA0512G7002 Voltage: 12 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Without sensor
9GA0512G7001 Voltage: 12 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Pulse sensor
9GA0512H7002 Voltage: 12 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Without sensor
9GA0512H7001 Voltage: 12 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Pulse sensor
9GA0512H7D001 Voltage: 12 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Lock sensor
9GA0512M7002 Voltage: 12 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17 Pa | Sensor: Without sensor
9GA0512M7001 Voltage: 12 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17 Pa | Sensor: Pulse sensor
9GA0524A7002 Voltage: 24 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59.0 Pa | Sensor: Without sensor
9GA0524A7001 Voltage: 24 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59.0 Pa | Sensor: Pulse sensor
9GA0524A7D001 Voltage: 24 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59.0 Pa | Sensor: Lock sensor
9GA0524G7002 Voltage: 24 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Without sensor
9GA0524G7001 Voltage: 24 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Pulse sensor
9GA0524G7D001 Voltage: 24 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Lock sensor
9GA0524H7002 Voltage: 24 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Without sensor
9GA0524H7001 Voltage: 24 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Pulse sensor
9GA0524M7002 Voltage: 24 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17.0 Pa | Sensor: Without sensor
9GA0524M7001 Voltage: 24 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17.0 Pa | Sensor: Pulse sensor
DC Axial FansSanyo Denki
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 52 9GA DC Fan 52x52x15 mm (Low Power)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (27)

9GA0512P7G001, 9GA0512P7A001, 9GA0512P7H001, 9GA0512P7M001, 9GA0524P7G001, 9GA0524P7A001, 9GA0524P7H001, 9GA0524P7M001, 9GA0512A7002, 9GA0512A7001 + 17 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA0512P7G001Voltage: 12 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Pulse sensor, PWM control
9GA0512P7A001Voltage: 12 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59 Pa | Sensor: Pulse sensor, PWM control
9GA0512P7H001Voltage: 12 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Pulse sensor, PWM control
9GA0512P7M001Voltage: 12 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17 Pa | Sensor: Pulse sensor, PWM control
9GA0524P7G001Voltage: 24 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Pulse sensor, PWM control
9GA0524P7A001Voltage: 24 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59.0 Pa | Sensor: Pulse sensor, PWM control
9GA0524P7H001Voltage: 24 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Pulse sensor, PWM control
9GA0524P7M001Voltage: 24 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17.0 Pa | Sensor: Pulse sensor, PWM control
9GA0512A7002Voltage: 12 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59 Pa | Sensor: Without sensor
9GA0512A7001Voltage: 12 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59 Pa | Sensor: Pulse sensor
9GA0512G7002Voltage: 12 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Without sensor
9GA0512G7001Voltage: 12 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Pulse sensor
9GA0512H7002Voltage: 12 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Without sensor
9GA0512H7001Voltage: 12 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Pulse sensor
9GA0512H7D001Voltage: 12 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Lock sensor
9GA0512M7002Voltage: 12 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17 Pa | Sensor: Without sensor
9GA0512M7001Voltage: 12 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17 Pa | Sensor: Pulse sensor
9GA0524A7002Voltage: 24 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59.0 Pa | Sensor: Without sensor
9GA0524A7001Voltage: 24 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59.0 Pa | Sensor: Pulse sensor
9GA0524A7D001Voltage: 24 VDC | Speed: 6300 min-1 | Airflow: 0.4 m3/min | Static pressure: 59.0 Pa | Sensor: Lock sensor
9GA0524G7002Voltage: 24 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Without sensor
9GA0524G7001Voltage: 24 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Pulse sensor
9GA0524G7D001Voltage: 24 VDC | Speed: 7800 min-1 | Airflow: 0.5 m3/min | Static pressure: 91.5 Pa | Sensor: Lock sensor
9GA0524H7002Voltage: 24 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Without sensor
9GA0524H7001Voltage: 24 VDC | Speed: 4300 min-1 | Airflow: 0.275 m3/min | Static pressure: 27.5 Pa | Sensor: Pulse sensor
9GA0524M7002Voltage: 24 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17.0 Pa | Sensor: Without sensor
9GA0524M7001Voltage: 24 VDC | Speed: 3400 min-1 | Airflow: 0.215 m3/min | Static pressure: 17.0 Pa | Sensor: Pulse sensor
