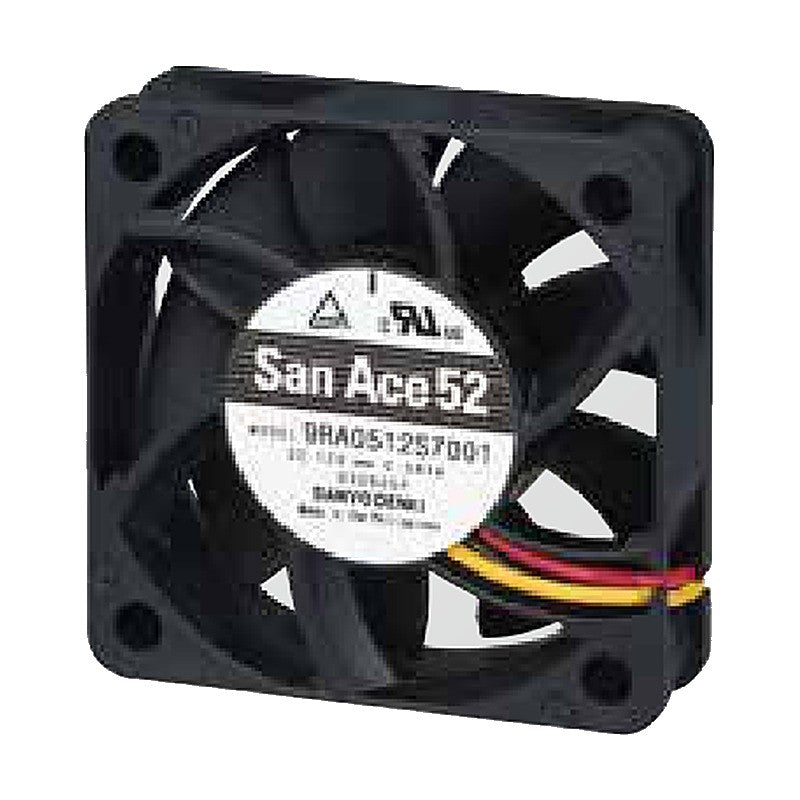

Sanyo Denki San Ace 52 9RA DC Fan 52x52x15 mm (Low Noise, Low Power)

Sanyo Denki San Ace 52 9RA DC Fan 52x52x15 mm (Low Noise, Low Power)

The San Ace 52 9RA type is a 52x52x15 mm DC axial fan rated at 5 / 12 / 24 VDC, delivering up to 0.41 m3/min airflow and 61 Pa static pressure.

Key features

  • San Ace 9RA series DC axial fan in a 52x52x15 mm frame
  • Rated speed 3350 to 6250 min-1; max. airflow 0.22 to 0.41 m3/min
  • Pulse sensor output as standard
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-1156

Specifications

Frame size 52x52x15 mm
Series San Ace 52 9RA type
Rated voltage 5 / 12 / 24 VDC
Sensor Pulse sensor
Frame Ribbed
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 60000 h
Mass 33 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace 9RA leaflet San_Ace_52RA15_E, p. 1-2
9RA0505M7001 Voltage: 5 VDC | Speed: 3350 min-1 | Airflow: 0.22 m3/min | Static pressure: 21 Pa
9RA0512S7001 Voltage: 12 VDC | Speed: 6250 min-1 | Airflow: 0.41 m3/min | Static pressure: 61 Pa
9RA0512H7001 Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 0.28 m3/min | Static pressure: 32 Pa
9RA0524S7001 Voltage: 24 VDC | Speed: 6250 min-1 | Airflow: 0.41 m3/min | Static pressure: 61 Pa
9RA0524H7001 Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 0.28 m3/min | Static pressure: 32 Pa
109P0505M701 Legacy code (in 'Deleted Models', p. 670) | Size: 52x52x15 mm | Former series: 109P
109P0512A701 Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
109P0512H701 Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P | Note: leaflet compares with 9RA
109P0512M701 Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
109P0524A701 Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
109P0524H701 Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
109P0524M701 Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
DC Axial FansSanyo Denki
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 52 9RA DC Fan 52x52x15 mm (Low Noise, Low Power)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (12)

9RA0505M7001, 9RA0512S7001, 9RA0512H7001, 9RA0524S7001, 9RA0524H7001, 109P0505M701, 109P0512A701, 109P0512H701, 109P0512M701, 109P0524A701 + 2 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9RA0505M7001Voltage: 5 VDC | Speed: 3350 min-1 | Airflow: 0.22 m3/min | Static pressure: 21 Pa
9RA0512S7001Voltage: 12 VDC | Speed: 6250 min-1 | Airflow: 0.41 m3/min | Static pressure: 61 Pa
9RA0512H7001Voltage: 12 VDC | Speed: 4250 min-1 | Airflow: 0.28 m3/min | Static pressure: 32 Pa
9RA0524S7001Voltage: 24 VDC | Speed: 6250 min-1 | Airflow: 0.41 m3/min | Static pressure: 61 Pa
9RA0524H7001Voltage: 24 VDC | Speed: 4250 min-1 | Airflow: 0.28 m3/min | Static pressure: 32 Pa
109P0505M701Legacy code (in 'Deleted Models', p. 670) | Size: 52x52x15 mm | Former series: 109P
109P0512A701Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
109P0512H701Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P | Note: leaflet compares with 9RA
109P0512M701Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
109P0524A701Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
109P0524H701Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
109P0524M701Legacy code (deleted / not in current catalogue) | Size: 52x52x15 mm | Former series: 109P
