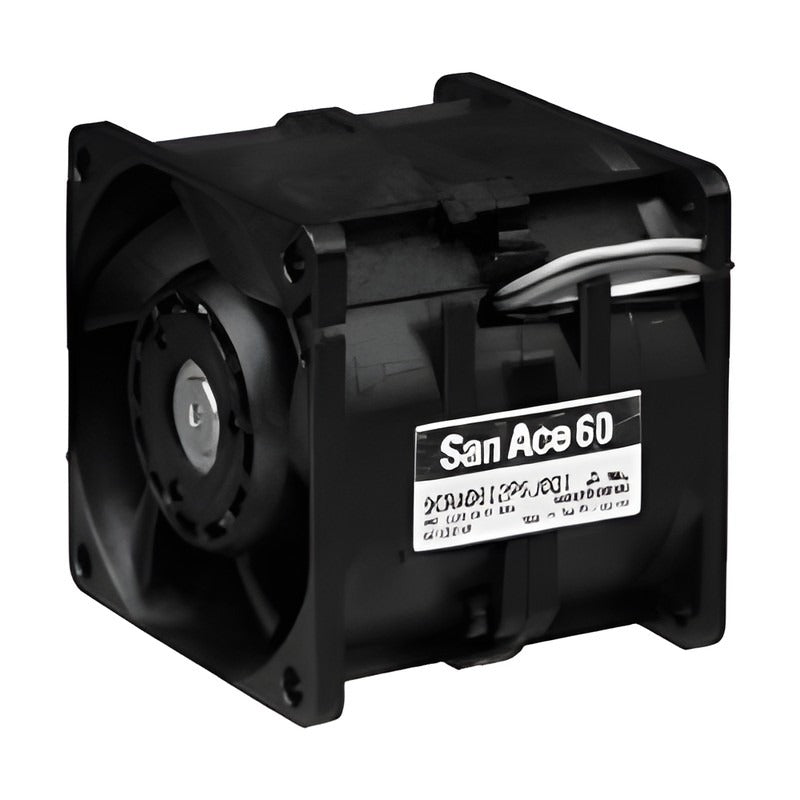

Sanyo Denki San Ace 60 9CRA Counter Rotating Fan 60x60x56 mm

Sanyo Denki San Ace 60 9CRA Counter Rotating Fan 60x60x56 mm

The San Ace 60 9CRA type is a 60x60x56 mm DC counter rotating fan that pairs two contra-rotating impellers for high airflow and high static pressure.

Key features

  • Up to 2.28 m3/min max. airflow and 1130 Pa max. static pressure
  • Rated voltage 12 VDC (3 catalogue models)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size 60x60x56 mm
Series / type San Ace 60 9CRA type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Rated voltage 12 VDC
Mass 200 g
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 230-232
9CRA0612P6K001 Speed (inlet/outlet): 18300 / 15800 min-1 | Airflow: 2.28 m3/min (80.5 CFM) | Static pressure: 1130 Pa (4.54 inH2O) | Expected life: 30000 h at 60 °C | SPL: 73 dB(A) | Current / input: 3.1 A / 37.2 W
9CRA0612P6J001 Speed (inlet/outlet): 16800 / 14500 min-1 | Airflow: 2.1 m3/min (74.2 CFM) | Static pressure: 950 Pa (3.82 inH2O) | Expected life: 40000 h at 60 °C | SPL: 70 dB(A) | Current / input: 2.3 A / 27.6 W
9CRA0612P6G001 Speed (inlet/outlet): 13500 / 11400 min-1 | Airflow: 1.65 m3/min (58.3 CFM) | Static pressure: 620 Pa (2.49 inH2O) | Expected life: 40000 h at 60 °C | SPL: 65 dB(A) | Current / input: 1.3 A / 15.6 W
DC Counter Rotating FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 60 9CRA Counter Rotating Fan 60x60x56 mm

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (3)

9CRA0612P6K001, 9CRA0612P6J001, 9CRA0612P6G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CRA0612P6K001Speed (inlet/outlet): 18300 / 15800 min-1 | Airflow: 2.28 m3/min (80.5 CFM) | Static pressure: 1130 Pa (4.54 inH2O) | Expected life: 30000 h at 60 °C | SPL: 73 dB(A) | Current / input: 3.1 A / 37.2 W
9CRA0612P6J001Speed (inlet/outlet): 16800 / 14500 min-1 | Airflow: 2.1 m3/min (74.2 CFM) | Static pressure: 950 Pa (3.82 inH2O) | Expected life: 40000 h at 60 °C | SPL: 70 dB(A) | Current / input: 2.3 A / 27.6 W
9CRA0612P6G001Speed (inlet/outlet): 13500 / 11400 min-1 | Airflow: 1.65 m3/min (58.3 CFM) | Static pressure: 620 Pa (2.49 inH2O) | Expected life: 40000 h at 60 °C | SPL: 65 dB(A) | Current / input: 1.3 A / 15.6 W
