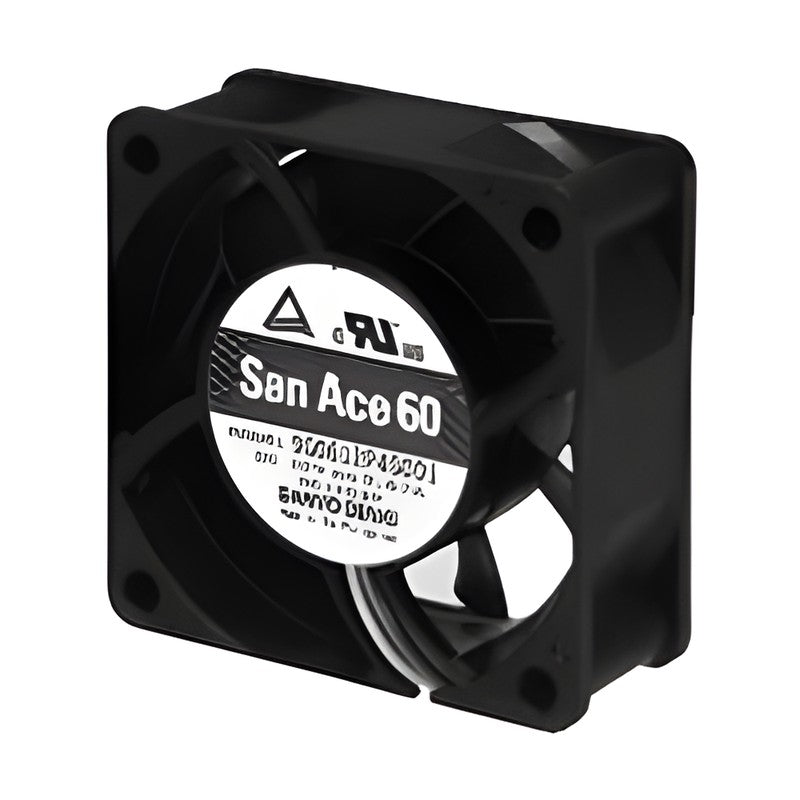

Sanyo Denki San Ace 60 9G DC Fan 60x60x25 mm (PWM Control)

Sanyo Denki San Ace 60 9G DC Fan 60x60x25 mm (PWM Control)

The San Ace 60 9G type is a 60x60x25 mm DC axial fan rated at 12 / 24 / 48 VDC, delivering up to 1.4 m3/min airflow and 305 Pa static pressure.

Key features

  • San Ace 9G series DC axial fan in a 60x60x25 mm frame
  • Rated speed 9500 to 11000 min-1; max. airflow 1.21 to 1.4 m3/min
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-139E, 109-139H; resin guard/filter kits 109-1003 series

Specifications

Frame size 60x60x25 mm
Series San Ace 60 9G type
Rated voltage 12 / 24 / 48 VDC
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 40000 h
Mass 90 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 73-75 (option models: Model Index p. 645-671)
9G0612P4S001 Voltage: 12 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9G0612P4H001 Voltage: 12 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9G0624P4S001 Voltage: 24 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9G0624P4H001 Voltage: 24 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9G0648P4S001 Voltage: 48 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 305 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9G0612H4002 Voltage: 12 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Without sensor | Frame: Ribbed
9G0612H4D001 Voltage: 12 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Lock sensor | Frame: Ribbed
9G0612P4H0011 Voltage: 12 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9G0612H40021 Voltage: 12 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Without sensor | Frame: Ribless
9G0612H40011 Voltage: 12 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Pulse sensor | Frame: Ribless
9G0612H4D0011 Voltage: 12 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Lock sensor | Frame: Ribless
9G0612S4002 Voltage: 12 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Without sensor | Frame: Ribbed
9G0612S4001 Voltage: 12 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Pulse sensor | Frame: Ribbed
9G0612P4S0011 Voltage: 12 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9G0612S40021 Voltage: 12 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Without sensor | Frame: Ribless
9G0624H4002 Voltage: 24 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Without sensor | Frame: Ribbed
9G0624H4001 Voltage: 24 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Pulse sensor | Frame: Ribbed
9G0624H4D001 Voltage: 24 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Lock sensor | Frame: Ribbed
9G0624P4H0011 Voltage: 24 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9G0624H40021 Voltage: 24 VDC | Speed: 9500 min-1 | Airflow: 1.21 m3/min | Static pressure: 224 Pa | Sensor: Without sensor | Frame: Ribless
9G0624S4002 Voltage: 24 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Without sensor | Frame: Ribbed
9G0624S4D001 Voltage: 24 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Lock sensor | Frame: Ribbed
9G0624P4S0011 Voltage: 24 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9G0624S40021 Voltage: 24 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 300 Pa | Sensor: Without sensor | Frame: Ribless
9G0648S4002 Voltage: 48 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 305 Pa | Sensor: Without sensor | Frame: Ribbed
9G0648S4001 Voltage: 48 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 305 Pa | Sensor: Pulse sensor | Frame: Ribbed
9G0648P4S0011 Voltage: 48 VDC | Speed: 11000 min-1 | Airflow: 1.4 m3/min | Static pressure: 305 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9A0612G401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9A0612S401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9A0612H401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9A0612F401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9A0612M401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9A0624G401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9A0624S401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9A0624H401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9A0624F401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9A0624M401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 9A
9AH0612P4G03 Legacy code (deleted / not in current catalogue) | Note: custom PWM model | Size: 60x60 mm | Former series: 9AH
9AH0612P4H05 Legacy code (deleted / not in current catalogue) | Note: custom PWM model | Size: 60x60 mm | Former series: 9AH
