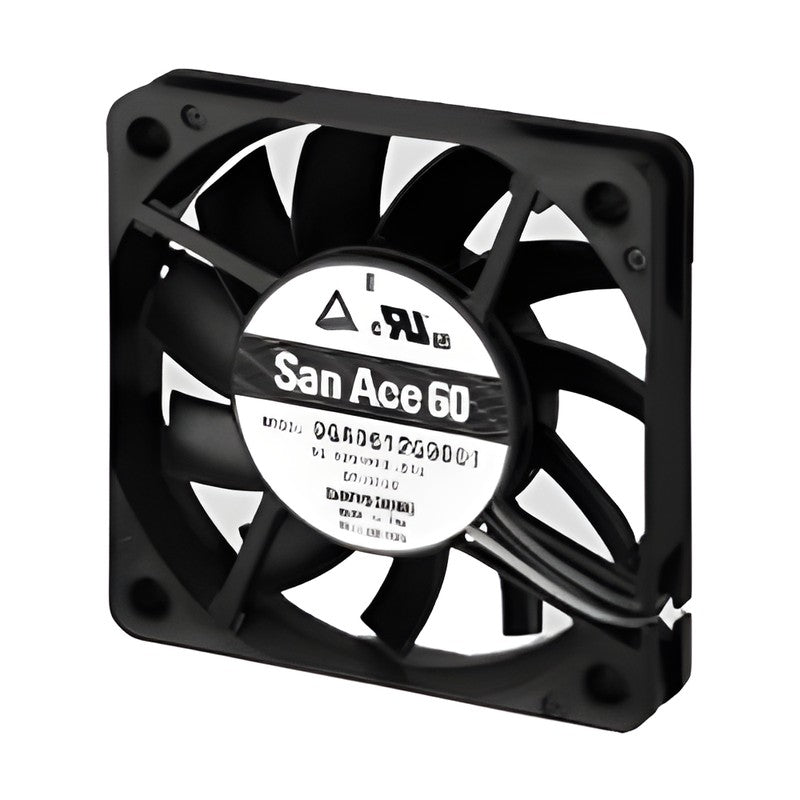

Sanyo Denki San Ace 60 9GA DC Fan 60x60x10 mm (Low Power)

Sanyo Denki San Ace 60 9GA DC Fan 60x60x10 mm (Low Power)

The San Ace 60 9GA type is a 60x60x10 mm low power consumption DC axial fan rated at 12 VDC, delivering up to 0.62 m3/min airflow and 66 Pa static pressure.

Key features

  • Low Power Consumption Fan in the San Ace 9GA series (60x60x10 mm frame)
  • Rated speed 2300 to 6200 min-1; max. airflow 0.23 to 0.62 m3/min
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-139E, 109-139H; resin guard/filter kits 109-1003 series

Specifications

Frame size 60x60x10 mm
Series San Ace 60 9GA type
Rated voltage 12 VDC
Frame Ribbed
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -10 to +70 °C, -20 to +60 °C, -20 to +70 °C
Expected life (L10, 60 °C) 40000 h
Mass 35 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 61-62 (option models: Model Index p. 645-671)
9GA0612G9001 Speed: 6200 min-1 | Airflow: 0.62 m3/min | Static pressure: 66 Pa | Sensor: Pulse sensor
9GA0612H9001 Speed: 5000 min-1 | Airflow: 0.5 m3/min | Static pressure: 42.9 Pa | Sensor: Pulse sensor
9GA0612L9001 Speed: 2300 min-1 | Airflow: 0.23 m3/min | Static pressure: 9.1 Pa | Sensor: Pulse sensor
9GA0612G9002 Speed: 6200 min-1 | Airflow: 0.62 m3/min | Static pressure: 66 Pa | Sensor: Without sensor
9GA0612G9D001 Speed: 6200 min-1 | Airflow: 0.62 m3/min | Static pressure: 66 Pa | Sensor: Lock sensor
9GA0612P9G001 Speed: 6200 min-1 | Airflow: 0.62 m3/min | Static pressure: 66 Pa | Sensor: Pulse sensor, PWM control
9GA0612H9002 Speed: 5000 min-1 | Airflow: 0.5 m3/min | Static pressure: 42.9 Pa | Sensor: Without sensor
9GA0612H9D001 Speed: 5000 min-1 | Airflow: 0.5 m3/min | Static pressure: 42.9 Pa | Sensor: Lock sensor
9GA0612L9002 Speed: 2300 min-1 | Airflow: 0.23 m3/min | Static pressure: 9.1 Pa | Sensor: Without sensor
9GA0612L9D001 Speed: 2300 min-1 | Airflow: 0.23 m3/min | Static pressure: 9.1 Pa | Sensor: Lock sensor
DC Axial FansSanyo Denki
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 60 9GA DC Fan 60x60x10 mm (Low Power)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (10)

9GA0612G9001, 9GA0612H9001, 9GA0612L9001, 9GA0612G9002, 9GA0612G9D001, 9GA0612P9G001, 9GA0612H9002, 9GA0612H9D001, 9GA0612L9002, 9GA0612L9D001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA0612G9001Speed: 6200 min-1 | Airflow: 0.62 m3/min | Static pressure: 66 Pa | Sensor: Pulse sensor
9GA0612H9001Speed: 5000 min-1 | Airflow: 0.5 m3/min | Static pressure: 42.9 Pa | Sensor: Pulse sensor
9GA0612L9001Speed: 2300 min-1 | Airflow: 0.23 m3/min | Static pressure: 9.1 Pa | Sensor: Pulse sensor
9GA0612G9002Speed: 6200 min-1 | Airflow: 0.62 m3/min | Static pressure: 66 Pa | Sensor: Without sensor
9GA0612G9D001Speed: 6200 min-1 | Airflow: 0.62 m3/min | Static pressure: 66 Pa | Sensor: Lock sensor
9GA0612P9G001Speed: 6200 min-1 | Airflow: 0.62 m3/min | Static pressure: 66 Pa | Sensor: Pulse sensor, PWM control
9GA0612H9002Speed: 5000 min-1 | Airflow: 0.5 m3/min | Static pressure: 42.9 Pa | Sensor: Without sensor
9GA0612H9D001Speed: 5000 min-1 | Airflow: 0.5 m3/min | Static pressure: 42.9 Pa | Sensor: Lock sensor
9GA0612L9002Speed: 2300 min-1 | Airflow: 0.23 m3/min | Static pressure: 9.1 Pa | Sensor: Without sensor
9GA0612L9D001Speed: 2300 min-1 | Airflow: 0.23 m3/min | Static pressure: 9.1 Pa | Sensor: Lock sensor
