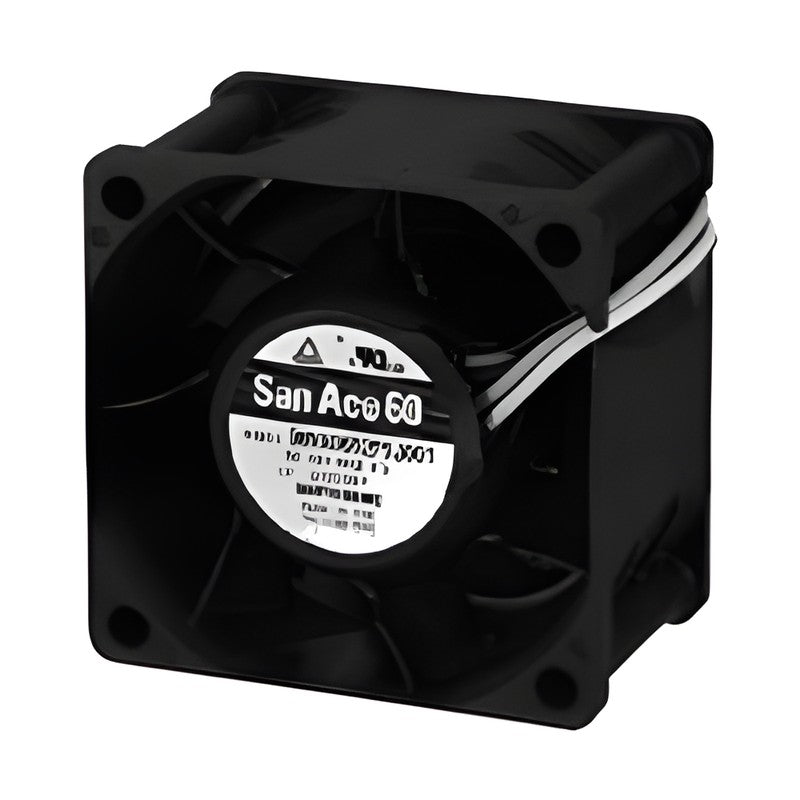

Sanyo Denki San Ace 60 9HVA DC Fan 60x60x38 mm (PWM Control)

Sanyo Denki San Ace 60 9HVA DC Fan 60x60x38 mm (PWM Control)

The San Ace 60 9HVA type is a 60x60x38 mm DC axial fan rated at 12 VDC, delivering up to 2.39 m3/min airflow and 2000 Pa static pressure.

Key features

  • San Ace 9HVA series DC axial fan in a 60x60x38 mm frame
  • Rated speed 24800 min-1; max. airflow 2.39 m3/min; max. static pressure 2000 Pa
  • Pulse sensor output with PWM speed control (PWM frequency 25 kHz)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-139E, 109-139H; resin guard/filter kits 109-1003 series

Specifications

Frame size 60x60x38 mm
Series San Ace 60 9HVA type
Rated voltage 12 VDC
Speed 24800 min-1
Airflow 2.39 m3/min
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 40000 h
Mass 130 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 82-83 (option models: Model Index p. 645-671)
9HVA0612P1J001 Static pressure: 2000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9HVA0612P1J0011 Static pressure: 2000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 60 9HVA DC Fan 60x60x38 mm (PWM Control)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9HVA0612P1J001, 9HVA0612P1J0011

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9HVA0612P1J001Static pressure: 2000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9HVA0612P1J0011Static pressure: 2000 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
