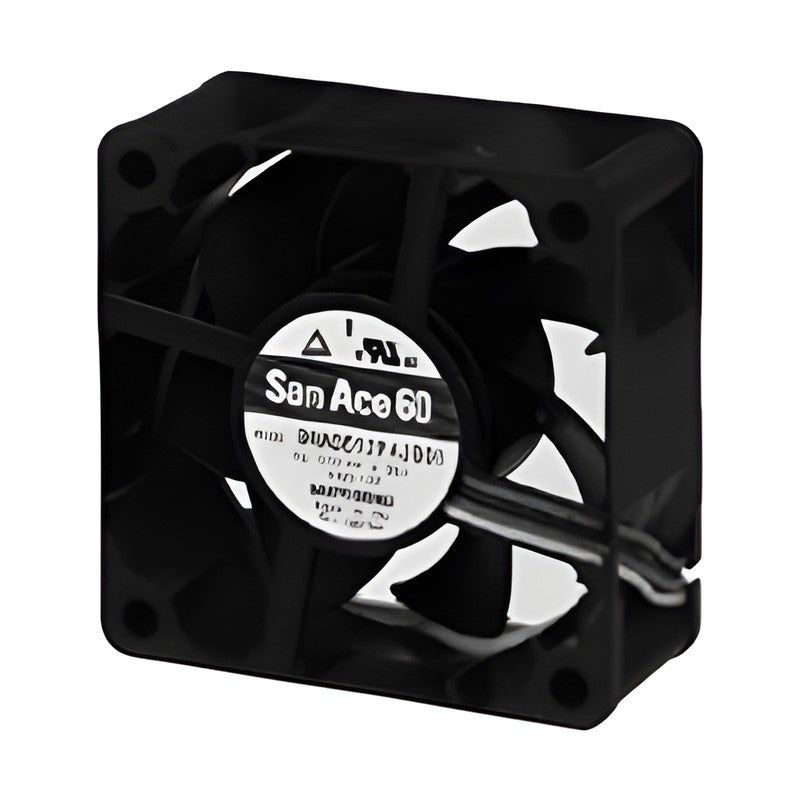

Sanyo Denki San Ace 60 9RA DC Fan 60x60x25 mm (Standard)

Sanyo Denki San Ace 60 9RA DC Fan 60x60x25 mm (Standard)

The San Ace 60 9RA type is a 60x60x25 mm DC axial fan rated at 12 / 24 / 48 VDC, delivering up to 1.1 m3/min airflow and 130 Pa static pressure.

Key features

  • San Ace 9RA series DC axial fan in a 60x60x25 mm frame
  • Rated speed 2600 to 7700 min-1; max. airflow 0.37 to 1.1 m3/min
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-139E, 109-139H; resin guard/filter kits 109-1003 series

Specifications

Frame size 60x60x25 mm
Series San Ace 60 9RA type
Rated voltage 12 / 24 / 48 VDC
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 60000 h
Mass 70 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 76-79 (option models: Model Index p. 645-671)
9RA0612P4J001 Voltage: 12 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9RA0624P4J001 Voltage: 24 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9RA0648P4J001 Voltage: 48 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9RA0612J4001 Voltage: 12 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0612G4001 Voltage: 12 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0612S4001 Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0612H4001 Voltage: 12 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0612F4001 Voltage: 12 VDC | Speed: 3200 min-1 | Airflow: 0.46 m3/min | Static pressure: 22 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0612M4001 Voltage: 12 VDC | Speed: 2600 min-1 | Airflow: 0.37 m3/min | Static pressure: 14.8 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0624J4001 Voltage: 24 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0624G4001 Voltage: 24 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0624S4001 Voltage: 24 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0624H4001 Voltage: 24 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0624F4001 Voltage: 24 VDC | Speed: 3200 min-1 | Airflow: 0.46 m3/min | Static pressure: 22 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0624M4001 Voltage: 24 VDC | Speed: 2600 min-1 | Airflow: 0.37 m3/min | Static pressure: 14.8 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0648J4001 Voltage: 48 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0648G4001 Voltage: 48 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Pulse sensor | Frame: Ribbed
9RA0612F4002 Voltage: 12 VDC | Speed: 3200 min-1 | Airflow: 0.46 m3/min | Static pressure: 22 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0612F40011 Voltage: 12 VDC | Speed: 3200 min-1 | Airflow: 0.46 m3/min | Static pressure: 22 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0612F40021 Voltage: 12 VDC | Speed: 3200 min-1 | Airflow: 0.46 m3/min | Static pressure: 22 Pa | Sensor: Without sensor | Frame: Ribless
9RA0612G4002 Voltage: 12 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0612G4D001 Voltage: 12 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0612P4G001 Voltage: 12 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9RA0612G40011 Voltage: 12 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0612G40021 Voltage: 12 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Without sensor | Frame: Ribless
9RA0612G4D0011 Voltage: 12 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0612H4002 Voltage: 12 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0612H4D001 Voltage: 12 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0612P4H001 Voltage: 12 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9RA0612H40011 Voltage: 12 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0612H40021 Voltage: 12 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Without sensor | Frame: Ribless
9RA0612H4D0011 Voltage: 12 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0612P4H0011 Voltage: 12 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9RA0612J4002 Voltage: 12 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0612J4D001 Voltage: 12 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0612J40011 Voltage: 12 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0612J40021 Voltage: 12 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Without sensor | Frame: Ribless
9RA0612J4D0011 Voltage: 12 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0612P4J0011 Voltage: 12 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9RA0612M4002 Voltage: 12 VDC | Speed: 2600 min-1 | Airflow: 0.37 m3/min | Static pressure: 14.8 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0612M40011 Voltage: 12 VDC | Speed: 2600 min-1 | Airflow: 0.37 m3/min | Static pressure: 14.8 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0612M40021 Voltage: 12 VDC | Speed: 2600 min-1 | Airflow: 0.37 m3/min | Static pressure: 14.8 Pa | Sensor: Without sensor | Frame: Ribless
9RA0612S4002 Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0612S4D001 Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0612P4S001 Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9RA0612S40011 Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0612S40021 Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Without sensor | Frame: Ribless
9RA0612S4D0011 Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0612P4S0011 Voltage: 12 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9RA0624F4002 Voltage: 24 VDC | Speed: 3200 min-1 | Airflow: 0.46 m3/min | Static pressure: 22 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0624F40011 Voltage: 24 VDC | Speed: 3200 min-1 | Airflow: 0.46 m3/min | Static pressure: 22 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0624F40021 Voltage: 24 VDC | Speed: 3200 min-1 | Airflow: 0.46 m3/min | Static pressure: 22 Pa | Sensor: Without sensor | Frame: Ribless
9RA0624G4002 Voltage: 24 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0624G4D001 Voltage: 24 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0624G40011 Voltage: 24 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0624G40021 Voltage: 24 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Without sensor | Frame: Ribless
9RA0624G4D0011 Voltage: 24 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0624H4002 Voltage: 24 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0624H4D001 Voltage: 24 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0624H40011 Voltage: 24 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0624H40021 Voltage: 24 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Without sensor | Frame: Ribless
9RA0624H4D0011 Voltage: 24 VDC | Speed: 3800 min-1 | Airflow: 0.54 m3/min | Static pressure: 32 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0624J4002 Voltage: 24 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0624J4D001 Voltage: 24 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0624J40011 Voltage: 24 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0624J40021 Voltage: 24 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Without sensor | Frame: Ribless
9RA0624J4D0011 Voltage: 24 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0624P4J0011 Voltage: 24 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9RA0624M4002 Voltage: 24 VDC | Speed: 2600 min-1 | Airflow: 0.37 m3/min | Static pressure: 14.8 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0624M40011 Voltage: 24 VDC | Speed: 2600 min-1 | Airflow: 0.37 m3/min | Static pressure: 14.8 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0624M40021 Voltage: 24 VDC | Speed: 2600 min-1 | Airflow: 0.37 m3/min | Static pressure: 14.8 Pa | Sensor: Without sensor | Frame: Ribless
9RA0624S4002 Voltage: 24 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0624S4D001 Voltage: 24 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0624S40011 Voltage: 24 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0624S40021 Voltage: 24 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Without sensor | Frame: Ribless
9RA0624S4D0011 Voltage: 24 VDC | Speed: 4600 min-1 | Airflow: 0.66 m3/min | Static pressure: 46 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0648G4002 Voltage: 48 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0648G4D001 Voltage: 48 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0648G40011 Voltage: 48 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0648G40021 Voltage: 48 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Without sensor | Frame: Ribless
9RA0648G4D0011 Voltage: 48 VDC | Speed: 5600 min-1 | Airflow: 0.8 m3/min | Static pressure: 69 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0648J4002 Voltage: 48 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Without sensor | Frame: Ribbed
9RA0648J4D001 Voltage: 48 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Lock sensor | Frame: Ribbed
9RA0648J40011 Voltage: 48 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor | Frame: Ribless
9RA0648J40021 Voltage: 48 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Without sensor | Frame: Ribless
9RA0648J4D0011 Voltage: 48 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Lock sensor | Frame: Ribless
9RA0648P4J0011 Voltage: 48 VDC | Speed: 7700 min-1 | Airflow: 1.1 m3/min | Static pressure: 130 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
109R0605H401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0605F401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0605M401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0612J401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0612G401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0612D401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0612S401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0612H401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0612F401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0612M401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0624J401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0624G401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0624D401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0624S401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0624H401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0624F401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0624M401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0648J401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0648G401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
109R0648H401 Legacy code (deleted / not in current catalogue) | Size: 60x60x25 mm | Former series: 109R
