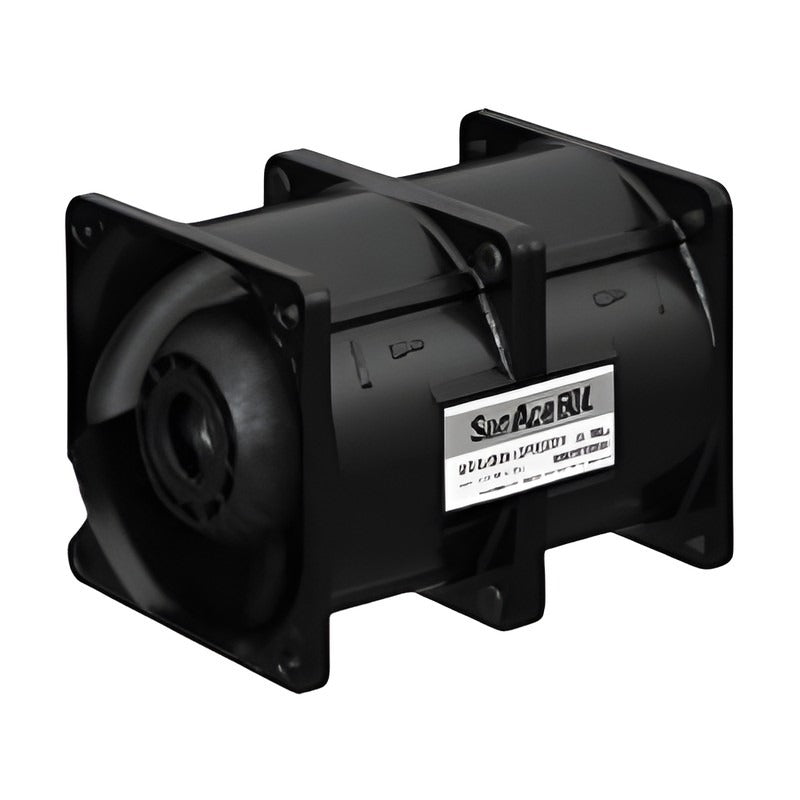

Sanyo Denki San Ace 60L 9CRLB Counter Rotating Fan 60x60x76 mm

Long life 60 mm counter rotating DC fan with PWM control delivering 1500 Pa static pressure.

Key features

Long life design, L10 expected life up to 100,000 h at 60 C
Rated voltage 12 VDC, frame size 60x60x76 mm
Rated speed 19700/18300 min-1 (in/out)
Locked rotor burnout protection and reverse polarity protection
PWM speed control input (25 kHz) with pulse sensor output

Specifications

Frame size	60x60x76 mm
Fan type	Counter rotating fan, long life
Material	Aluminum (black coating) frame, UL 94V-1 plastic impeller
Operating temperature	-20 to +70 C (non-condensing)
Storage temperature	-30 to +70 C (non-condensing)
Motor protection	Locked rotor burnout, reverse polarity
Mass	280 g
Expected life	100,000 h at 60 C
Feature	Pulse sensor, PWM
Operating voltage	10.8 to 13.2 V
Source	Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 324-325

9CRLB0612P0G001

Voltage: 12 VDC | Speed: 19700/18300 min-1 (in/out) | Airflow: 2.4 m3/min | Static pressure: 1500 Pa
