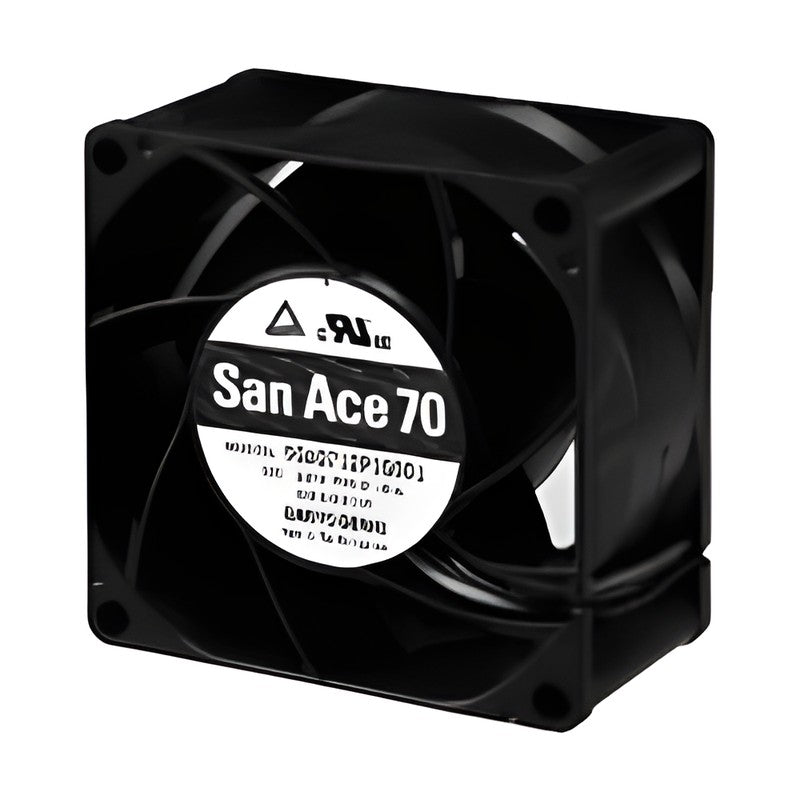

Sanyo Denki San Ace 70 9GA DC Fan 70x70x38 mm (Low Power)

Sanyo Denki San Ace 70 9GA DC Fan 70x70x38 mm (Low Power)

The San Ace 70 9GA type is a 70x70x38 mm low power consumption DC axial fan rated at 12 VDC, delivering up to 2.65 m3/min airflow and 860 Pa static pressure.

Key features

  • Low Power Consumption Fan in the San Ace 9GA series (70x70x38 mm frame)
  • Rated speed 12000 to 16500 min-1; max. airflow 1.92 to 2.65 m3/min
  • Pulse sensor models plus PWM speed-control models (25 kHz PWM input)
  • Option models (without sensor, lock sensor, ribless frame) as listed in the catalogue Model Index
  • Locked rotor burnout protection and reverse polarity protection
  • Compatible finger guards: 109-1128

Specifications

Frame size 70x70x38 mm
Series San Ace 70 9GA type
Rated voltage 12 VDC
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Operating temperature -20 to +70 °C
Expected life (L10, 60 °C) 40000 h
Mass 170 g
Motor protection Locked rotor burnout protection, reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 92-93 (option models: Model Index p. 645-671)
9GA0712P1G001 Speed: 16500 min-1 | Airflow: 2.65 m3/min | Static pressure: 860 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GA0712P1H001 Speed: 12000 min-1 | Airflow: 1.92 m3/min | Static pressure: 455 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GA0712P1G0011 Speed: 16500 min-1 | Airflow: 2.65 m3/min | Static pressure: 860 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GA0712H1D001 Speed: 12000 min-1 | Airflow: 1.92 m3/min | Static pressure: 455 Pa | Sensor: Lock sensor | Frame: Ribbed
9GA0712P1H0011 Speed: 12000 min-1 | Airflow: 1.92 m3/min | Static pressure: 455 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
DC Axial FansSanyo Denki
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 70 9GA DC Fan 70x70x38 mm (Low Power)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (5)

9GA0712P1G001, 9GA0712P1H001, 9GA0712P1G0011, 9GA0712H1D001, 9GA0712P1H0011

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA0712P1G001Speed: 16500 min-1 | Airflow: 2.65 m3/min | Static pressure: 860 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GA0712P1H001Speed: 12000 min-1 | Airflow: 1.92 m3/min | Static pressure: 455 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribbed
9GA0712P1G0011Speed: 16500 min-1 | Airflow: 2.65 m3/min | Static pressure: 860 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
9GA0712H1D001Speed: 12000 min-1 | Airflow: 1.92 m3/min | Static pressure: 455 Pa | Sensor: Lock sensor | Frame: Ribbed
9GA0712P1H0011Speed: 12000 min-1 | Airflow: 1.92 m3/min | Static pressure: 455 Pa | Sensor: Pulse sensor, PWM control | Frame: Ribless
